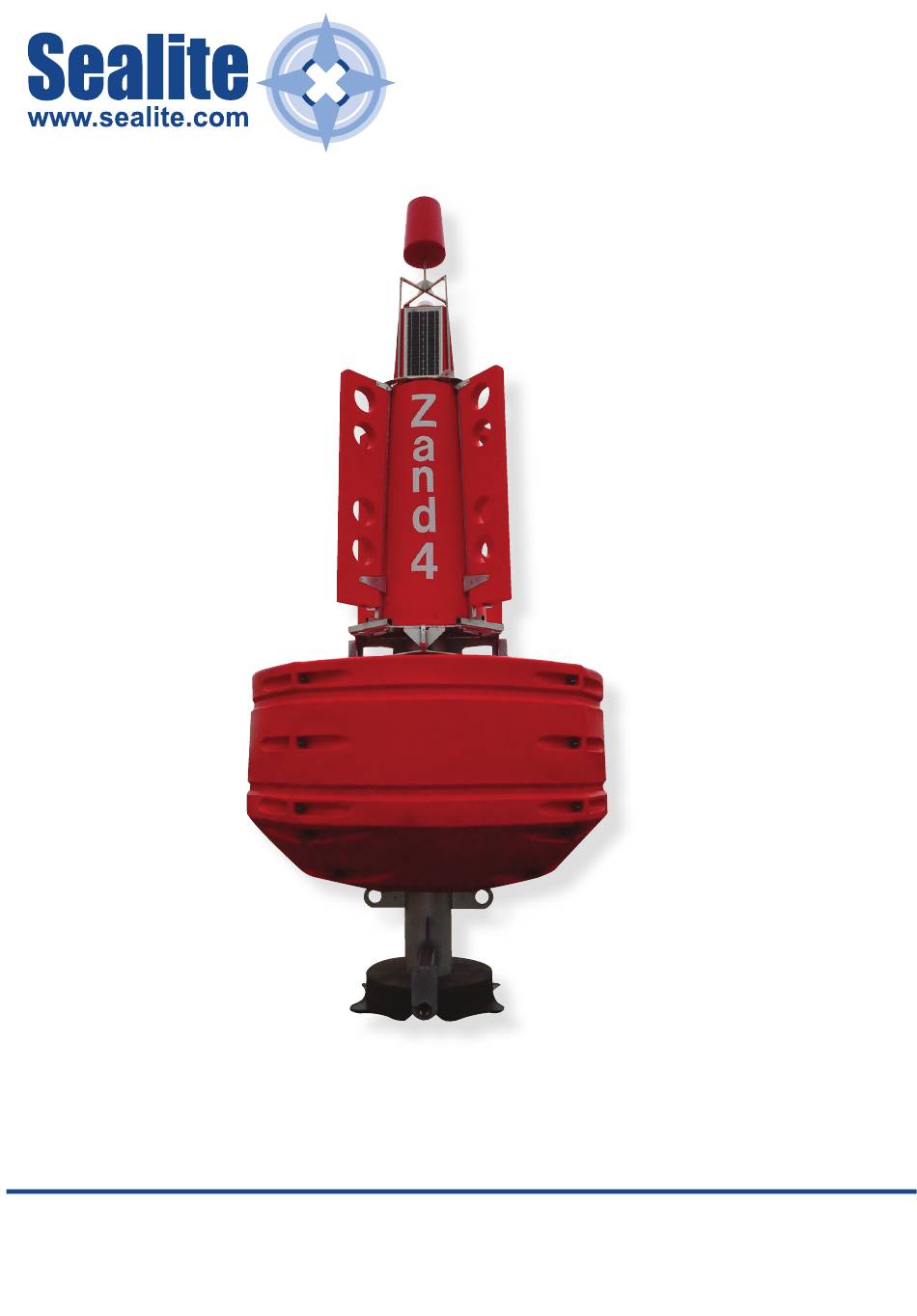

- Page 1 TRIDENT-2600Q 2600mm dia. Ocean Buoy INSTALLATION & SERVICE MANUAL V1-3...
- Page 2 Version No. Description Date Author Approved Manual Launch July 2014 S. Turner Assembly update May 2015 N. Brothers Warranty & Footer Feb 2017 S.Amirthalingam M.Nicholson Technical specifications update Oct 2020 M.Dutka M.Nicholson...
-
Page 3: Table Of Contents
Assembly: Ballast Section ............Page 7 Assembly: TRIDENT-2600Q ............Page 8 Mooring Diagram ...............Page 15 Standard Wiring Diagram ............Page 16 GSM Wiring Diagram ..............Page 17 Marine Buoy Maintenance ..............Page 18 Sealite Buoy Warranty ..............Page 19 Latest products and information available at www.sealite.com... -
Page 4: Introduction
Sealite Pty Ltd has been manufacturing buoys for over 25 years, and particular care has been taken to ensure your buoy gives years of service. As a commitment to producing the highest quality products for our customers, Sealite has been independently certified as complying with the requirements of ISO 9001:2015 quality management system. -
Page 5: Trident-2600Q Ocean Buoy
Marine Buoys TRIDENT-2600Q Ocean Buoy The TRIDENT-2600Q is one of the largest rotationally moulded buoys available, with a float diameter of 2.6 meters and lantern focal height of up to 4 meters. The float section of the TRIDENT-2600Q is built from four (4) roto-moulded quadrants, which fasten together to form an incredibly robust 2.6 meter wide float section standing 1.5m tall. - Page 6 SEALITE is a registered trademark of SEALITE is a registered ® ® Sealite Pty Ltd trademark of Sealite Pty Ltd Warranty * 5 years 5 years Lantern Options Sealite SL-C310 Series, SL-C510 Series, Sealite SL-C310 Series, SL-C510 Series, SL-C500, SL-C600, SL-125 Series or SL-155...
-
Page 7: Assembly: Ballast Section
Duck Foot Plate M20x 40mm Bolts M20 Spring Washers Check Components Unpack all components from container. Inspect all components for any damage. Please alert Sealite if any component is missing or damaged. Assembly Step 1 Lay centre core down, supported so end section is clear of the plates to be installed. -
Page 8: Assembly: Trident-2600Q
Assembly: TRIDENT-2600Q TRIDENT-2600Q Components Fixings Float Section M18x100MM-SS M18 x 100 Bolts M18FLAT-WASHERS M18 Flat Washers M18-SS-NYLOC M18 Nylock Nuts Tower Section M10X90MM-SS M10 x 90 Bolts M10FLATWASHERSSS M10 Flat Washers M10SPRINGWASHERSSS M10 Spring washers M10NUTSSS M10 Nuts DayMark Wings - Top... - Page 9 M16 Spring washers M16NYLOCK M16 Nuts M10X35SS M10 x 35mm Sets M10FLATWASHERSSS M10 Flat Washers M10SPRINGWASHERSSS M10 Spring washers M10NUTSSS M10 Nuts FLOAT FLOAT SECTIONS/QUADS POST MOORING POST BALLAST BALLAST PLATES BASE DUCK FOOT BASE Latest products and information available at www.sealite.com...
- Page 10 Check Components Unpack all components from container. Inspect all components for any damage. Please alert Sealite if any component is missing or damaged. Assembly Step 1 Position the Mooring Post upside down on flat level ground. Step 2 Turn the 4 x Float Sections upside down, to match the mooring post.
- Page 11 • DO NOT USE THE LADDER AS A LIFTING POINT • DO NOT USE SOLAR PANELS AS A LIFTING POINT. • ONLY USE A SLING AROUND THE BODY OF THE TOWER TO MOVE INTO POSITION Ladder to be positioned as shown. Latest products and information available at www.sealite.com...
- Page 12 Step 10 Slide the Day Marks into position. The top of the Day Mark post fits over the Locating Post on the Day Mark Mounting Bracket, fitted below the corners of the Solar Panels. Secure the base of the Day Mark Post to the base of the Tower Assembly using the M10 Bolts, Nuts, Flat and Spring Washers per post.
- Page 13 TRIDENT-2600Q Marine Buoys Diagram 1. 4.5 mtr TRIDENT-2600 Day Marks fit over locating posts here Secure to base of Tower Assembly Ladder Mounting Plate Ballast Plates Latest products and information available at www.sealite.com...
- Page 14 Diagram 2. 5.1 mtr TRIDENT-2600 Day Marks fit over locating posts here Secure to base of Tower Assembly Ladder Mounting Plate Ballast Plates...
-
Page 15: Mooring Diagram
TRIDENT-2600Q Marine Buoys TRIDENT-2600Q Mooring Diagram Latest products and information available at www.sealite.com... -
Page 16: Standard Wiring Diagram
Standard Wiring Diagram... -
Page 17: Gsm Wiring Diagram
TRIDENT-2600Q Marine Buoys GSM Wiring Diagram Latest products and information available at www.sealite.com... -
Page 18: Marine Buoy Maintenance
Marine Buoy Maintenance Sealite Marine Buoys are designed to require very little maintenance. We recommend the buoy be inspected annually. Inspection may need to increase depending on the local conditions and the position of the buoy. IALA Recommendation AISM E-107 suggests moorings are inspected annually.
