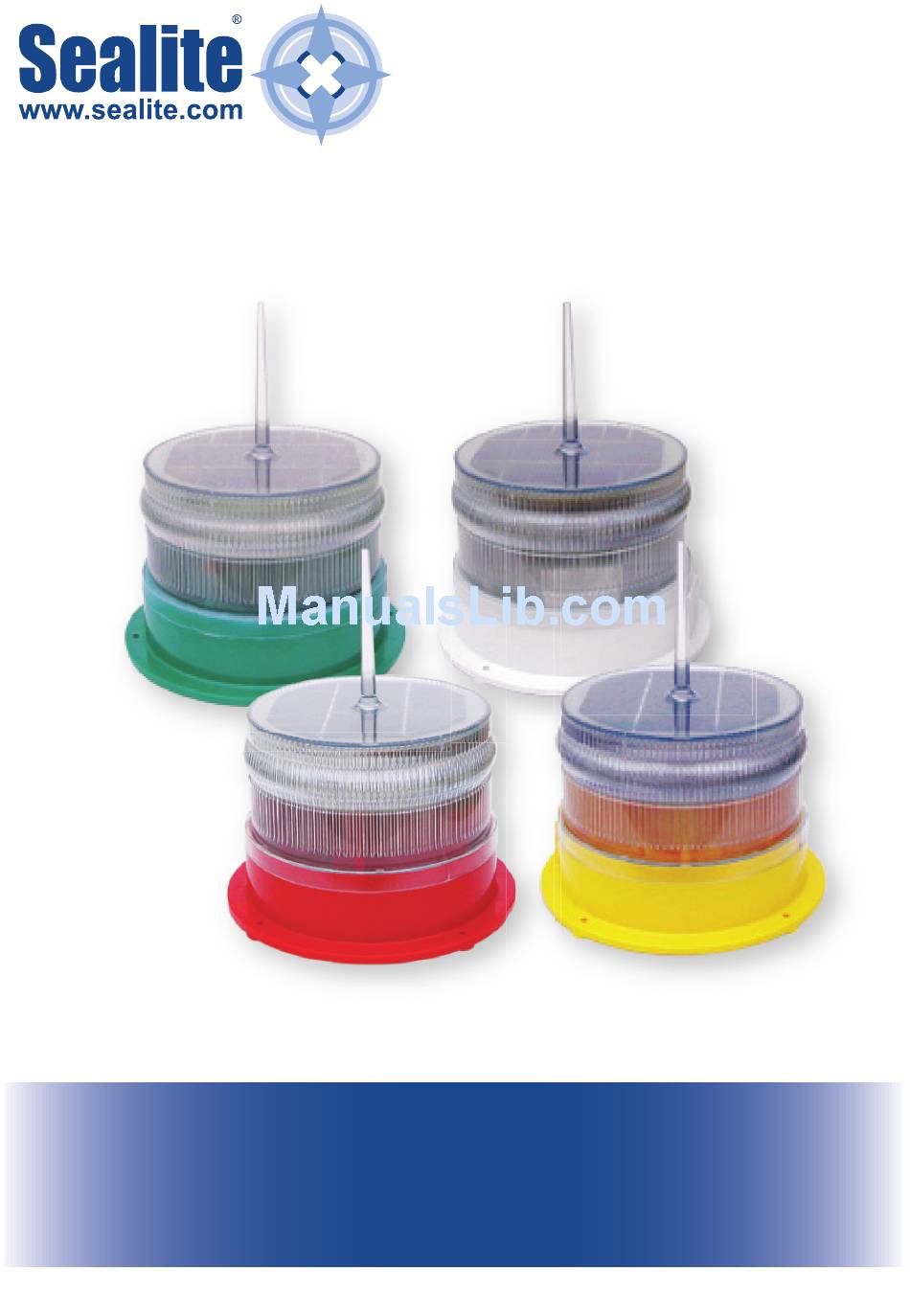

- Page 1 SL60 2-3nm+ Solar Marine Light Installation & Service Manual Version 4.1...
- Page 2 Large internal solar module deters unwelcome bird life Charges the battery during daylight hours LED lens and Sealite’s 360° Omnidirectional LED Reflector 6 ultra-high intensity LEDs (US Pat. No. 6,667,582. / AU Pat. No. 778,918) With an operatinal life in...
-
Page 3: Table Of Contents
K. Paton Custom Manual April 2010 K. Paton Logo Update May 2010 K. Paton Warranty Update July 2010 K. Paton Update: Quality Logo May 2011 J. Dore Update: Spec Table May 2012 J.Dore Latest products and information available at www.sealite.com... -
Page 4: Introduction
As a commitment to producing the highest quality products for our customers, Sealite has been independently certified as complying with the requirements of ISO9001:2008 quality management system. Sealite lanterns comply with requirements of the US Coast Guard in 33 CFR part 66 for Private Aids To Navigation. -
Page 5: Sl60 Model
SL60 2-3nm+ Solar Marine Light SL60 Model The Sealite SL60 is the most popular and versatile 2-3nm+ solar marine light available. Made from tough, durable polycarbonate and using the latest high-intensity LEDs, no expense has been spared in the design and development of this lantern. Installation takes just minutes, and a permanent ON/OFF switch allows for easy storage. -
Page 6: Installation
6. To test place dark cover (towel or jacket) on top of light to activate sensor, light will come on. 7. Ensure that the unit is bolted to an even, flat surface. Lantern Base Rotary Switch B User Replaceable Battery Rotary Switch A ON / OFF Switch Intensity Setting Latest products and information available at www.sealite.com... -
Page 7: Selecting An Intensity/Power Setting
SL60 2-3nm+ Solar Marine Light Selecting an Intensity/Power Setting Intensity/power settings on Sealite lanterns operate via DIP switches, located near the rotary switches on the flasher unit. The pulse settings may be used to reduce the power consumption and intensity of the lantern. -
Page 8: Flash Codes
SL60 2-3nm+ Solar Marine Light Flash Codes The Sealite SL60 may be set to any of 256 IALA recommended flash settings which are user-adjustable onsite without the need for external devices. SEALITE® code reference is listed by number of flashes For the latest version of this document visit www.sealite.com,... - Page 9 FL 5 S FL 15 S 14.0 FL 5 S LFL 15 S 11.0 FL 5 S OC 15 S FL 5 S LFL 20 S 18.0 FL 5 S FL 26 S 25.0 Latest products and information available at www.sealite.com...
- Page 10 15.0 FL (2) 25 S 22.0 SWITCH FLASH CODE Q (3) 5 S VQ (3) 5 S VQ (3) 5 S VQ (3) 5 S FL (3) 6 S FL (2+1) 6 S Latest products and information available at www.sealite.com...
- Page 11 FL (4) 20 S FL (4) 20 S 13.5 FL (4) 20 S 10.5 FL (4) 20 S Q (4) 20 S 16.5 Q (4) 28 S 24.5 FL (4) 30 S 26.5 Latest products and information available at www.sealite.com...
- Page 12 MO (A) 10 S MO (D) 10 S MO (A) 15 S 11.0 MO (U) 15 S 11.8 MO (U) 15 S 10.7 MO (U) 15 S 10.1 MO (B) 15 S 10.5 Latest products and information available at www.sealite.com...
-
Page 13: Maintenance And Servicing
Always discard old batteries in a safe manner. Long Term Storage Instructions If the SL60 is to be placed in storage for an extended period, being more than 5 months, please follow the below steps. -
Page 14: Troubleshooting
• Expose lantern to direct sunlight and monitor operation for several days. entire night. Sealite products typically require 1.5 hours of direct sunlight per day to retain full autonomy. From a discharged state, the lantern may require several days of operational conditions to ‘cycle’ up to full autonomy. -
Page 15: Sl60 Optional Configurations
200mm OD Base (SL60-LB) Available with larger 200mm OD base pattern for immediate installation on existing structures. 8Ah Battery (SL60/8Ah) or 16Ah Battery (SL60-LB/16Ah) Avaialble with 8Ah battery for low sunlight regions, or high duty cycles. Latest products and information available at www.sealite.com... -
Page 16: Sl60 Accessories
SLB600, SLB610 & SLB700 buoys MC/15 316-grade SS bolt set to suit standard base SL60 hardware M4 x 20mm MC/16 316-grade SS bolt set to suit SL60-LB lantern with 200mm OD base hardware M8 x 25mm Latest products and information available at www.sealite.com... - Page 17 SL60 2-3nm+ Solar Marine Light Notes Latest products and information available at www.sealite.com...
-
Page 18: Sealite Led Light Warranty
2. Online Registration - please complete the Online Registration Form at; www.sealite.com Sealite Pty Ltd will repair or replace your LED light in the event of electronic failure for a period of up to three years from the date of purchase. - Page 19 SL60 2-3nm+ Solar Marine Light 3. The customer must give Sealite Pty Ltd notice of any defect with the product within 30 days of the customer becoming aware of the defect. 4. Rechargeable batteries have a limited number of charge cycles and may eventually need to be replaced.
- Page 20 (up to 3mt in diameter) Area Lighting Mooring Systems & Accessories Head Office Sealite Pty Ltd 11 Industrial Drive Somerville, Vic 3912 Australia Tel: +61 3 5977 6128 Fax: +61 3 5977 6124 Email: info@sealite.com Internet: www.sealite.com Latest products and information available at www.sealite.com...
