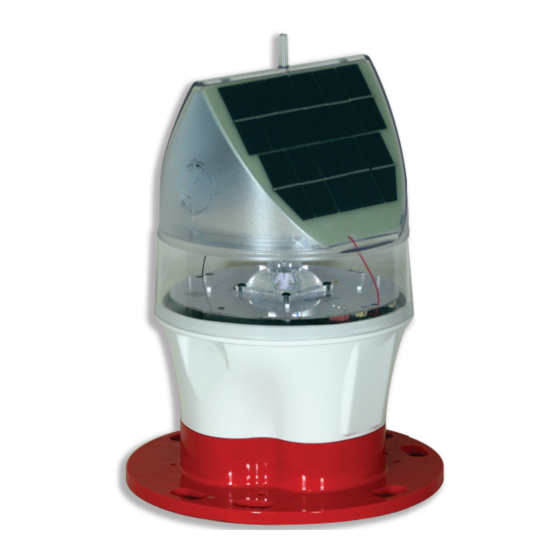

Sealite SL-75 Installation & Service Manual

3-5nm+ solar marine lantern
Hide thumbs Also See for SL-75:
Table of Contents

Advertisement

Quick Links

Download this manual
SL-75
3-5NM+ Solar Marine Lantern
Installation & Service Manual
Version 1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL-75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sealite SL-75

Summary of Contents for Sealite SL-75

  • Page 1 SL-75 3-5NM+ Solar Marine Lantern Installation & Service Manual Version 1.4...
  • Page 2 Single LED Optic LEXAN® polycarbonate Large industry standard 200mm bolt pattern for ease of installation. Optional bases available Internal user-replaceable battery in sealed compartment 114.55 4 x 4.00 THRU 16 X 15 Slots 6 Places Latest products and information available at www.sealite.com...

  • Page 3: Table Of Contents

    Selecting a Flash Code ..................Page 7 Flash Codes ...................... Page 8 Optional IR Remote Control ................Page 14 Sealite IR Controller / Universal Remote Compatibility ......Page 14 IR Controller Functions .................. Page 15 Test Mode / Confi gure ................. Page 15 Normal Operation..................

  • Page 4: Introduction

    As a commitment to producing the highest quality products for our customers, Sealite has been independently certifi ed as complying with the requirements of ISO9001:2008 quality management system. Sealite lanterns comply with requirements of the US Coast Guard in 33 CFR part 66 for Private Aids To Navigation.

  • Page 5: Sl-75 Model

    3–5NM+ Solar Marine Lantern SL-75 Model The Sealite SL-75 is exceptional in its unique ability to be able to ‘track the sun’ and operate reliably in low sunlight conditions. The SL-75 has been proven to operate as a 3–5+ nautical mile compact buoy lantern in various low sunlight environments such as Britain, Canada and Europe.

  • Page 6: Installation

    6. To test place dark cover (towel or jacket) on top of lantern to activate sensor, lantern will come on. 7. Ensure that the unit is bolted to an even, fl at surface. Rotary Switch A User Rotary Replaceable Switch B Battery ON / OFF Switch Lantern Base Intensity Setting Latest products and information available at www.sealite.com...

  • Page 7: Selecting An Intensity/Power Setting

    100% setting and the range by 20% - 40% depending on the maximum intensity. Refer to Sealite power calculator to confi rm reduced range.. This setting may be used to adjust the current draw of the light to local sunlight conditions.

  • Page 8: Flash Codes

    3–5NM+ Solar Marine Lantern Flash Codes The Sealite SL-75 may be set to any of 256 IALA recommended fl ash settings which are user-adjustable onsite without the need for external devices. SEALITE® code reference is listed by number of fl ashes For the latest version of this document visit www.sealite.com,...
  • Page 9 FL 5 S FL 15 S 14.0 FL 5 S LFL 15 S 11.0 FL 5 S OC 15 S FL 5 S LFL 20 S 18.0 FL 5 S FL 26 S 25.0 Latest products and information available at www.sealite.com...
  • Page 10 FL (2) 12 S 10.0 FL (2) 12 S FL (2) 15 S 11.0 FL (2) 15 S 11.0 Q (2) 15 S 13.8 FL (2) 20 S 15.0 FL (2) 25 S 22.0 Latest products and information available at www.sealite.com...
  • Page 11 VQ (3) 15 S 13.7 FL (2) + LFL 16 S FL (3) 20 S 12.5 FL (3) 20 S 15.5 FL (3) 20 S 12.0 FL (3) 20 S 15.2 FL (3) 20 S 15.0 Latest products and information available at www.sealite.com...
  • Page 12 FL (5) 20 S 11.2 FL (5) 20 S 11.0 SWITCH Controller FLASH CODE OFF ON OFF ON OFF ON OFF ON OFF ON Q (6) 10 S FL (6) 15 S FL (6) 15 S Latest products and information available at www.sealite.com...
  • Page 13 MO (A) 10 S MO (D) 10 S MO (A) 15 S 11.0 MO (U) 15 S 11.8 MO (U) 15 S 10.7 MO (U) 15 S 10.1 MO (B) 15 S 10.5 Latest products and information available at www.sealite.com...

  • Page 14: Optional Ir Remote Control

    Sealite IR Controller / Universal Remote Compatibility If you lose your Sealite IR Controller, the following Universal Remote Controller has been tested for compatibility: RCA Type RCR312WR programmed for Phillips TV Type Code 10054...

  • Page 15: Ir Controller Functions

    The light fl ashes the current battery status. The light fl ashes the sunset level in Lux, followed by a 2 second gap, followed by the sunrise level. Levels are in the range of 1 to 9. Latest products and information available at www.sealite.com...

  • Page 16: Flash Code Numbers

    This function reads the battery status. The response from the light is High Voltage: 4 fl ashes, Good Voltage: 3 fl ashes, Low Voltage 2 fl ashes, Cutoff Voltage or below: 1 fl ash. Example Key sequence: Latest products and information available at www.sealite.com...

  • Page 17: Lux

    This sets the ambient light level to be lower than the default 100 lux. The light will turn on when its surroundings are darker. The light responds by acknowledgement with a long fl ash. Latest products and information available at www.sealite.com...

  • Page 18: Error / Acknowledge Indication

    IR Remote Control, the lamp will fl ash 49 which is the corresponding number for switches A=3, B=1. Use the IR Remote Control to read the current lamp intensity setting and fl ash code. Latest products and information available at www.sealite.com...

  • Page 19: Hibernation Mode (Advanced Users)

    Mode and depending on the current calendar month setting will either Hibernate or enter Dusk-to- Dawn mode. By default, Hibernation mode is disabled. Note you can only use this command once a valid hibernation start & end date has been stored in the lantern. Latest products and information available at www.sealite.com...

  • Page 20: Storage Mode (Advanced Users)

    In this example, we want the lantern to hibernate each year from Dec 10th, through to February 15th, and the lantern is located inside a storage warehouse. The required key sequence is: Command IR Controller Key Press Store the Hibernation Date Range Enable Hibernation Latest products and information available at www.sealite.com...

  • Page 21: Operational Mode

    Standby Mode: manually forces the lantern to turn off, disables the GPS but with access to daylight it will still charge the battery pack. Read Operation Mode Set Operation Mode to Always on Set Operation Mode to Standby Mode Set Operation Mode to Dusk to dawn Latest products and information available at www.sealite.com...

  • Page 22: Optional Gps Synchronisation

    If the light turns on unsynchronised it will continually check for valid time data. Once valid data is found the light will automatically synchronise. Note: Lights will not synchronise if different fl ash codes are selected. Latest products and information available at www.sealite.com...

  • Page 23: Optional Avmesh® Monitoring & Control System

    Optional AvMesh® Monitoring & Control System Sealite’s AvMesh® Monitoring and Control Systems may be fi tted to the lantern enabling users to remotely modify the setup of their lantern via handheld radio controller. Please contact Sealite for instructions on how to use the AvMesh® Monitoring & Control System.

  • Page 24: Maintenance And Servicing

    fi tted. Always discard old batteries in a safe manner. Long Term Storage Instructions If the SL-75 is to be placed in storage for an extended period, being more than 5 months, please follow the below steps.

  • Page 25: Trouble Shooting

    • Expose lantern to direct sunlight and monitor operation for several days. entire night. Sealite products typically require 1.5 hours of direct sunlight per day to retain full autonomy. From a discharged state, the lantern may require several days of operational conditions to ‘cycle’ up to full autonomy.

  • Page 26: Sealite Led Light Warranty

    Please complete the Online Registration Form at: www.sealite.com Sealite Pty Ltd will repair or replace your LED light in the event of electronic failure for a period of up to three years from the date of purchase, as per the terms & conditions below.
  • Page 27 To the extent permitted by acts and regulations applicable in the country of manufacture, the liability of Sealite Pty Ltd under this Warranty will be, at the option of Sealite Pty Ltd, limited to either the replacement or repair of any defective product covered by this Warranty.
  • Page 28 SL-75 3–5NM+ Solar Marine Lantern Other Sealite Products Available Marine Lanterns Monitoring Monitorin (1–19NM) & Control Systems & Control Sy Bridge & Barge Lights Marine Buoys (up to 3mt in diameter) Area Lighting Mooring Systems & Accessories Sealite Asia Pte Ltd...
