* User Manual
50W Solar Charger Set TX-214

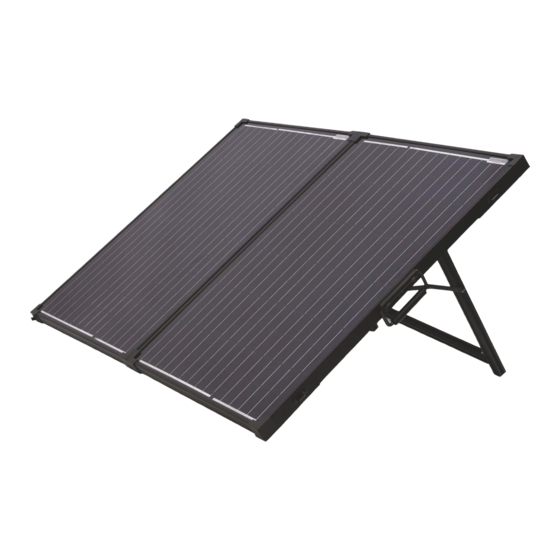

Foldable 100W Solar Suitcase TX-215
Before using the appliance for the first time, please read the instructions for use and
safety information carefully.
TX-214
TX-215
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capacities, or by persons lacking in experience or
knowledge, unless they are supervised or instructed on the use of this device by a
person responsible for their safety. Children should be supervised to ensure they do
not play with this device.
Keep this user manual for future reference or product sharing carefully. Do the same
with the original accessories for this product. In case of warranty, please contact the
dealer or the store where you bought this product.
Enjoy your product. * Share your experience and opinion on one of the well-
known internet portals.
Specifications subject to change without notice - please make sure you are using the
latest manual available on the manufacturer's website.
1
Model: TX-214,TX-215; Article No. 5023,5024; 10/2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Technaxx TX-214
Summary of Contents for Technaxx TX-214
- Page 1 Enjoy your product. * Share your experience and opinion on one of the well- known internet portals. Specifications subject to change without notice - please make sure you are using the latest manual available on the manufacturer's website. Model: TX-214,TX-215; Article No. 5023,5024; 10/2022...
-
Page 2: Table Of Contents
Technical specifications ....15 Display Interface/Parameter Settings Support ..........16 ............9 Care and maintenance ..... 16 System voltage type selection Declaration of Conformity ....16 interface ........9 Disposal ........... 16 Battery type settings ....9 Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 3: Important Notes At The Start
⚫ Before installing or using the charge controller, read carefully all the instructions and safety notes in the user manual and on the device and other solar equipment. ⚫ Do not connect the charge controller to the operator grid. Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 4: Intended Use
⚫ Never touch the positive and negative terminals at the same time. connection. Disclaimer ⚫ In no event shall Technaxx Deutschland be liable/responsible for any direct, indirect punitive, incidental, special consequential danger, to property or life, improper Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 5: Features
⚫ Error messages may appear depending on the environment it is used in. Features ⚫ Erectable solar panel, easy to carry - island solution (TX-214) ⚫ Collapsible solar panel, easy to carry - island solution (TX-215) ⚫ Ideal for garden, camping, etc. and charges e.g. car or camper battery ⚫... -
Page 6: Product Details
Terminals (+,-) for power storage DC12V output (MC4) Foldable 100W Solar Suitcase TX-215 Hinged adjustable stand DC12V output (MC4) Solar panel Charge controller Junction box MC4 connector, extension cable Handle Terminals (+,-) for power storage Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 7: Commissioning
Further are the both solar panels each 50W are connected in series for the optimizes voltage input for the charge controller. NOTE: You need to set the charge controller to the correct parameter for optimized charging of your used power storage. Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 8: Charge Controller
2s to make the number blinking, and then click to adjust the set value. Then, press and hold the button for 2s Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 9: Display Interface/Parameter Settings
[C2A] - the load will work for 2 hours a day, stop for 15 minutes, and keep cycling. [C2d] - the load will work for 2 hours during the day, stop for Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 10: Display Current Controller Temperature
When the controller turns off the load due to low voltage, the load will not be turned on until the battery voltage rises to the set voltage again. Setting recommendation: It is recommended to keep the default value. Setting method: same as above. Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 11: Over Discharge Voltage
PoF is Off, Pon is On, and the default is On. Setting recommendation: It is recommended to keep the default value. Setting method: same as above. Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 12: Load Light Control Mode Settings
2. b01-b03 will go into equalizing charge when and only when LVD occurs. After equalizing charge, it goes directly into floating charge. 3. The corresponding parameters in grey font in the table can be modified by the buttons, and the other parameters cannot be modified. Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 13: Error Code
70°C. Solar panel over-voltage protection When the solar panel voltage exceeds 50V, the controller will stop charging to protect the internal circuitry. When the voltage is below 45V, charging resumes. Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 14: Faq
PV panel or mains. The voltage will rise very soon. Then, stop charging and turn on the load. The voltage drops very soon. This indicates that the battery performance has degraded. You should replace a battery. Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 15: Technical Specifications
≤3000m IP rating IP32 Product size 120x75x34mm Installation size 108.5x58.5mm Weight 130g General Cable connection MC4 / terminals Cable length (total) Weight (total) 4.1kg 8.2kg Dimensions (total) 57x53.5x4.0cm 57x 53.5x6.6cm (folded); 107x 57x4.0cm (unfolded) Model: TX-214,TX-215; Article No. 5023,5024; 10/2022... -
Page 16: Support
Do not use abrasive cleaners to clean the device. Declaration of Conformity The EU Declaration of Conformity can be requested at the following address: www.technaxx.de/ (in the lower bar "Declaration of Conformity"). Disposal Disposal of the packaging. Sort packaging materials by type upon disposal.
