Do not use electric charge that need higher watts than
maximum 1200W continuously! This device is only suitable for
The Declaration of Conformity for this device is under the Internet link: www.technaxx.de/
(in bottom bar "Konformitätserklärung"). Before using the device the first time, please read
Service phone No. for technical support: 01805 012643 (14 cent/minute from German
fixed-line and 42 cent/minute from mobile networks). Free Email: support@technaxx.de
Keep this user manual for future reference or product sharing carefully. Do the same with
the original accessories for this product. In case of warranty, please contact the dealer or
the store where you bought this product.
Features
For mobile use of electronic devices via 12V connection
2x 5V USB ports with max. 3.1A (in total)
2x 230V safety contact sockets with power switch
Converts 12V DC battery power into standard 230V AC (household) power,
to run a variety of electronics, e.g. tablets, smartphones, laptop computers,
game systems, TVs, DVD/MP3 players, camping accessories, GPS units and
much more
Output power max. 1200W (continuous) & 2400W (peak)
Automatic safety shutdown to secure the car battery (alarm at ~10.5 & ~16V)
Protection against overload, short circuit & reverse polarity
Overheating protection through built-in ventilation
Technaxx

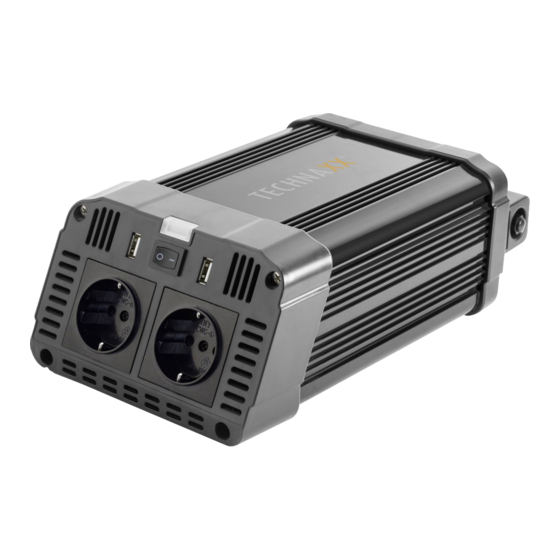

Power Inverter 1200W TE16
vehicle with 12V electrical systems!
the user manual carefully.
Hints for Environment Protection: Packages materials are
raw materials and can be recycled. Do not disposal old devices
or batteries into the domestic waste. Cleaning: Protect the
device from contamination and pollution (use a clean drapery).
Avoid using rough or coarse-grained materials or solvents or
aggressive cleaner. Wipe the cleaned device accurately.
Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr.
105, 60388 Frankfurt a.M., Germany
®
* User Manual
Warranty 2 years
Advertisement
Table of Contents
Related Manuals for Technaxx TE16
Summary of Contents for Technaxx TE16
- Page 1 1200W continuously! This device is only suitable for vehicle with 12V electrical systems! The Declaration of Conformity for this device is under the Internet link: www.technaxx.de/ (in bottom bar “Konformitätserklärung”). Before using the device the first time, please read the user manual carefully.
-
Page 2: Technical Specifications
Circuit protection (DC overload) 3x 40A internal fuses 2.3kg (with cables) Weight / Dimensions (L) 28.8 x (W) 15.9 x (H) 9.9cm Power Inverter 1200W TE16, 2x 90cm Package Contents connection cable, User Manual Warnings & Caution Use of the device in life support applications where failure of the device can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. -
Page 3: Normal Use
Normal use The power inverter is intended to convert 12V direct current voltage to alternating current voltage 230V / 50Hz and/or direct current voltage of 5V / max. 2.1A (2.0 USB). The power inverter is only intended for permanent installation. This power inverter is not intended for use by children or persons with limited mental capacity or lacking experience and/or lacking expertise. -
Page 4: Product Overview
Product Overview Positive power input (protective cap) Safety contact socket Negative power input (protective cap) ON / OFF Switch High speed cooling fan USB port Ground Indicator LED Ventilation holes (3) When the temperature inside the inverter exceeds a preset limit, the cooling fan automatically turns on to cool the inverter. -
Page 5: Voltage Converter Installation
Once you know how much power you will be using, you can determine how much battery capacity you need. Technaxx recommends that you purchase as much battery capacity as possible. CAUTION: Risk of inverter damage. -
Page 6: Operation
Securely connect the black negative (-) cable lead to the negative (-) terminal of the battery or power source. Connect a 0.75mm² wire or larger insulated wire between the chassis ground connector on the Inverter and a clean electrical grounding point on the vehicle. - Page 7 To Estimate Battery Recharge Required given Your Application You must allow your batteries to recharge long enough to replace the charge lost during inverter operation or else you will eventually run down your batteries. To estimate the minimum amount of time you need to recharge your batteries given your application, divide your required battery amp-hours (from above) by your Inverter/Charger’s rated charging amps (depending on the ON/OFF settings).
-
Page 8: Protective Features
Using the Inverter to Operate a TV or Audio Device The inverter is shielded and filtered to minimize signal interference. Despite this, some interference may occur with your television picture, especially with weak signals. Below are some suggestions to try and improve reception. Make sure the television antenna produces a clear signal under normal operating conditions (i.e. - Page 9 Overload Protection (Red LED on Inverter) The Inverter will automatically shut down if the continuous draw exceeds its maximum wattage rating. When the Inverter is at or near maximum output, an alarm will sound. When the alarm sounds you need to disconnect the device(s) to bring the Inverter output down to an acceptable level.
-
Page 10: Troubleshooting
TROUBLESHOOTING No Power on Fault connection Turn the inverter’s power switch off; Verify cable are tightly connected to the inverter and the power source Battery voltage below 10V Recharge or replace battery Equipment being operated draws too much power Allow the inverter to cool down.
