Technaxx
* User Manual

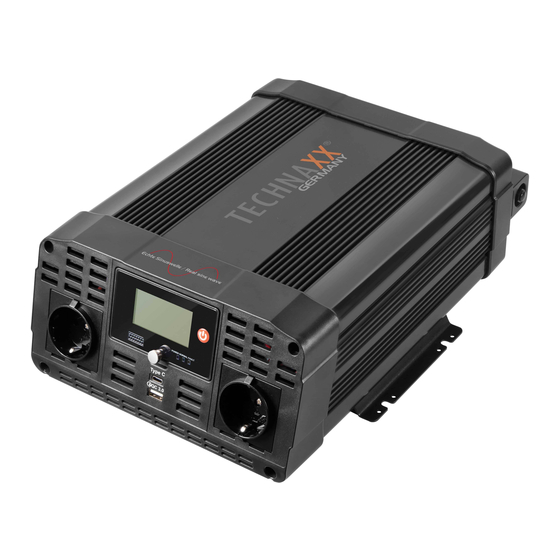

Car Power Inverter with 2 USB Ports TE23
Do not use electric charge that need higher watts than
maximum 3000W continuously !
This device is only suitable for vehicle with 12V electrical
systems!
You can find a detailed manual under www.technaxx.de/products
Before using the appliance for the first time, please read the instructions for
use and safety information carefully.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capacities, or by persons lacking in
experience or knowledge, unless they are supervised or instructed on the use
of this device by a person responsible for their safety. Children should be
supervised to ensure they do not play with this device.
Keep this user manual for future reference or product sharing carefully. Do the
same with the original accessories for this product. In case of warranty, please
contact the dealer or the store where you bought this product.
Enjoy your product * Share your experience and opinion on one of the
well-known internet portals.
Specifications are subject to change without notice - please be sure to use the
latest manual available on the manufacturer's website.
Support
Service phone No. for technical support: 01805 012643* (14
cent/minute from German fixed-line and 42 cent/minute from mobile
networks). Free Email: support@technaxx.de
The support hotline is available Mon-Fri from 9am to 1pm & 2pm to
5pm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TE23 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technaxx TE23

Summary of Contents for Technaxx TE23

  • Page 1 ® Technaxx * User Manual Car Power Inverter with 2 USB Ports TE23 Do not use electric charge that need higher watts than maximum 3000W continuously ! This device is only suitable for vehicle with 12V electrical systems! You can find a detailed manual under www.technaxx.de/products Before using the appliance for the first time, please read the instructions for use and safety information carefully.

  • Page 2: Care And Maintenance

    Care and maintenance Clean the device only with a dry or slightly damp, lint-free cloth. Do not use abrasive cleaners to clean the device. This device is a high-precision optical instrument, so in order to avoid damage, please avoid the following practice: Use the device in ultra-high or ultra-low temperature.

  • Page 3: Normal Use

    Weight / Dimensions 6kg / (L) 45,0 x (W) 26.0 x (H) 13cm Package Contents Car Power Inverter with 2 USB Ports TE23, 2x0.6m connection cable, User Manual Normal use The power inverter is intended to convert 12 V direct current voltage to alternating current voltage 230 V/50 Hz and/or direct current voltage of 12 V/max.

  • Page 4: Product Overview

    Product Overview...

  • Page 5: Voltage Converter Installation

    Once you know how much power you will be using, you can determine how much battery capacity you need. Technaxx recommends that you purchase as much battery capacity as possible. CAUTION: Risk of inverter damage.

  • Page 6: Connecting The Inverter

    Connecting the inverter This Inverter has two DC cable connections, one positive and one negative. The order of steps in the following procedure minimizes the danger of sparking near the battery bank. Prepare all cable set ends with ring terminals at the battery ends Select the OFF position on the inverter Remove the red positive(+) screw connector cap Slide the red positive(+) cable lead onto the red positive(+) screw connector...
  • Page 7 To Estimate Battery Amp-Hours Required Multiply the DC amps required (from above) by the number of hours you estimate you will operate your equipment exclusively from battery power before you have to recharge your batteries with utility- or generator-supplied AC power. Compensate for inefficiency by multiplying this number by 1.2.

  • Page 8: Protective Features

    operating conditions (i.e. at home plugged into a standard 230 volt AC wall outlet). Also, ensure that the antenna cable is adequately shielded and of good quality. Try altering the position of the inverter, antenna cables, and television power cord. Add an extension cord from the inverter to the TV so as to isolate its power cord and antenna cables from the 12 volt power source.

  • Page 9: Troubleshooting

    To Reset the Inverter 1. Turn off the Inverter using the ON/OFF switch on the Inverter, depending upon how the Inverter was controlled. 2. Unplug all devices. 3. Turn the Inverter back on using the ON/OFF switch on the Inverter. Before devices are reconnected, verify the total wattage of the devices to ensure they are less than the rating of the Inverter.
  • Page 10 Declaration of Conformity The EU Declaration of Conformity can be requested at the following address: www.technaxx.de/ (in the lower bar "Declaration of Conformity"). Disposal Disposal of the packaging. Sort packaging materials by type upon disposal.
  • Page 11 For this reason, electrical devices are marked with the symbol shown here. Made in China Distributed by: Technaxx Deutschland GmbH & Co. KG Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany...
