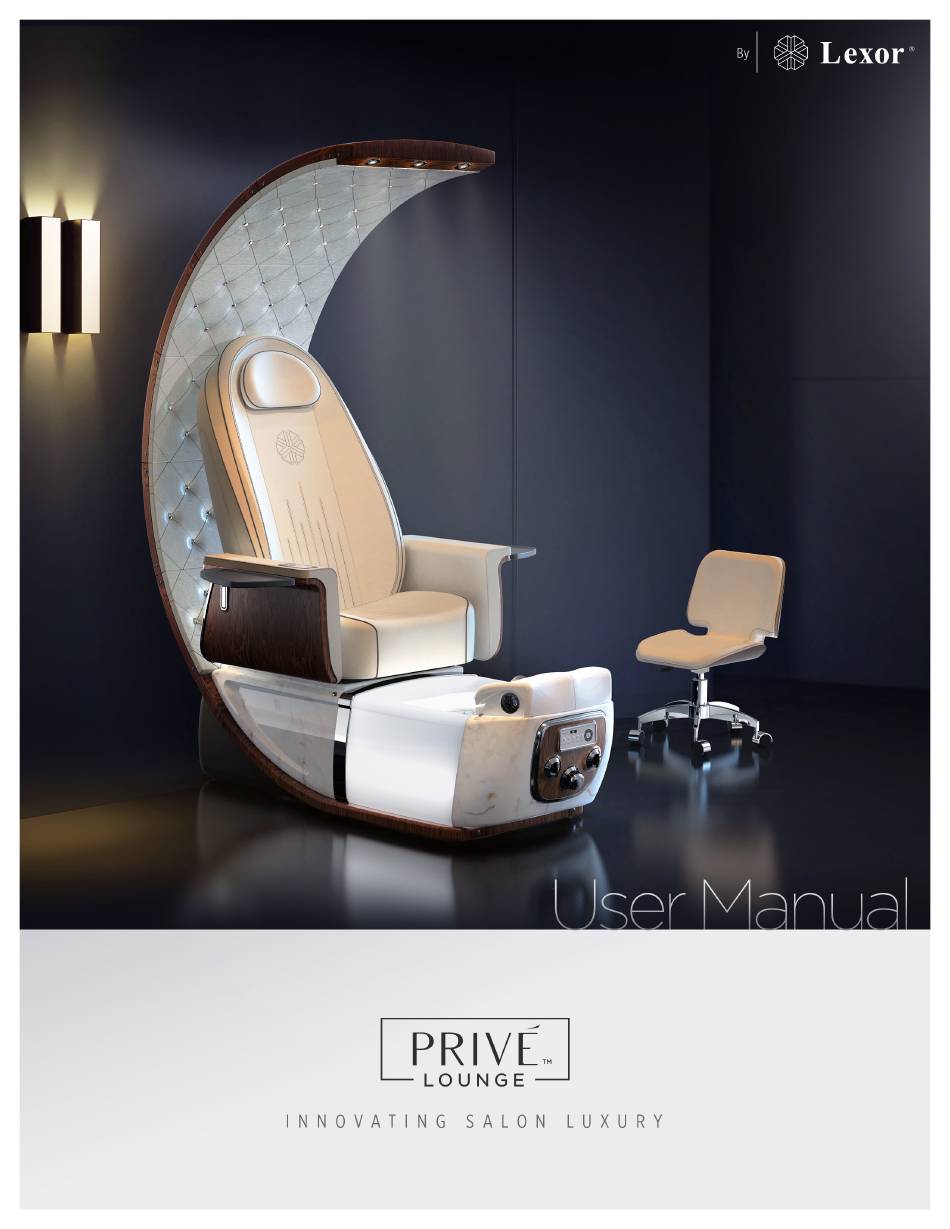

THE KEY TO SALON SUCCESS PRIVE PEDICURE SPA USER MANUAL RECEIVING AND INSPECTION: If missing parts or damages are found, please notify the carrier at once and insist on a notation of the damage on the bill of lading. DO NOT DISCARD THE SHIPPING BOX. If you give the carrier a clear receipt for goods that have been damaged in transit, you do so at your own risk and expense.
Identifying Parts for PRIVE Model ® Pedicure Spa with Massage System 1. Dome Led 11. Hot/Cold Water Mixer Valve 2. Dome 12. Dual Function Auto-Fill & Jet On/Off 3. Pillow Knob 4. Back Cushion with Massage 13. Aurora Bowl 5. Massage Remote Control 14.
WALL CLEARANCE & SPA to SPA RECOMMENDED CLEARANCE The wall clearance for dome-to-wall(0.5inches/1.25cm) and base-to-wall(10 VERY IMPORTANT: inches/25.4cm) are mandatory to give enough space for the unobstructed chair recline and plumbing system connections. Failure to follow may result in serious damage to the SPA component and void the warranty.
INSTALLATION OF PEDICURE SPA DOME LOWER DOME ASSEMBLY Lower-Dome Panel labeled “Lower-Dome” Step 1: Open the panel labeled “Lower-Dome” by removing 4 screws on both sides of the panel. Install lower-dome by inserting 2 mounting bolts from lower dome into spa base frame then secure 2 M8 x 100 bolts (attached near the mounting hole).
Page 7
2. BACK CUSHION ASSEMBLY Install the back cushion by engaging the 2 bottom hooks of cushion onto the shaft of massage frame. Position the top of back cushion, then snap the fit joint of back cushion to the crossbar of massage frame, press the back cushion firmly on the massage frame to secure.
Page 8
4. ARMRESTS ASSEMBLY Armrests Assembly Position and line up both markers of the armrest and seat frame connectors. Engage both sides into guide joints. Horizontally rotate armrest counterclockwise (clockwise with Right Armrest) to lock it in place Connect 8-pin male-female connectors labeled “1” between Right Armrest and Spa Base.
INSTALLATION OF PLUMBING SYSTEM NOTE: The drainage and water supply system installation require a licensed plumber. Detailed instructions can be found in the manual book. Instructions and local plumbing codes need to be carefully compiled to pass the city inspections. 1.
Page 10
2. POWER DRAIN 1) The power drainage installation should comply with SECTION 807.1, 2018 UPC. 2) Trap, vent, and connectors should comply with SECTION 1001.1 and 1001.2 UPC. 3) An alternative code needs to be complied with by the states not adopting UPC. a) Drainage system: SECTION 701.2 and 702.2 IPC (or local plumbing code) b) Trap, vent, and connectors: SECTION 1002.1 and 1002.2 IPC (or local plumbing code) 4) The installer/plumber is responsible for obtaining and complying with the local plumbing code for...
Page 11
3. DRAIN SYSTEM RECOMMENDATION 4. HOT/COLD WATER SUPPLY SYSTEM NOTE: The drainage and water supply system installation require a licensed plumber. Instructions and local plumbing codes need to be carefully compiled to pass the city inspections. New constructions: drain a good amount of water in a bucket to remove all debris from the new hot/cold water pipes before connecting to new SPA chairs (figure 1).
INSTALLATION OF VENTILATION SYSTEM (OPTIONAL) (The Spa comes with a preinstalled ventilation system because it is required by some state regulation. Please contact your state department for the requirements and regulations)
ELECTRICAL AND PEDICURE SPA COMPONENT SPECIFICATIONS All electrical connections MUST be made by a licensed electrician following Local & National Electrical and Building Codes. SPECIFICATIONS LIST FOR PRIVE SPA CHAIR Spa: L = 71” (180cm) W = 31” (79cm) w/ Tray =49” (126cm) H=84” (214cm) Net Weight: ~ 310 lbs.
PRE-OPERATIONAL SETUP 1. STEAMER SET UP Installing Air Tube to Air Ring Turn safety cap cover clockwise to open the safety device, next Insert the Air Tube Air Tube into the safety device Air Ring You can choose either one of the 2 following options for setting up the air ring and drainage: 1.
Page 15
PRE-OPERATIONAL SETUP Drain Stopper Air-Ring Eco-Jet Silicon Pipe Safety Device The system should be set as the figure above before each service session Note: To assure the safety for the operator; if the silicon pipe is not connected or accidentally popped out from the safety connector. The safety device will shut off the steam system 2.
OPERATE Auto-Fill™/Jet Switch: Digital Control Panel Control Panel Locate the control panel at the front of the spa base. Drain Hot/Cold Auto Fill / Follow the instructions below to operate the pedicure spa Knob Water Knob Jet Switch On/Off Push Button Push in button for manually shut off water...
OPERATE DIGITAL CONTROL PANEL: Press and Hold the Steam Heat Button for 3s. The system will activate the Air Jet without the Steamer NOTE: ● The Blue/White LED light indicates the current working status. ● Eco-Jet action can cause small amounts of soap or body oil to foam excessively. For this reason, refrain from using these products during the whirlpool cycle.
RESET WATER SENSOR AND WATER LEVEL 1. Reset the water sensor (Empty basin before activating this mode). ● A reset water sensor is required when the water level is out of range. ** Note : - This will also reset the water level to default = 3. - Click should be pressed slowly.
Page 19
3. Adjust The Steamer Timeout (turn off all system functions for configuration). 4. Reset to The Factory Setting Factory Default Parameters - Water level: 3 - Steamer Timeout: 20 mins - Safety device: Enabled. - Unit of temperature: F...
MASSAGE SYSTEM & REMOTE CONTROLLER 1. Press Auto Button to start Auto mode. Press again to turn off the massage. Auto and Manual mode will run for a duration of 20min. 2. Press any button (Rolling/Spot, Kneading, Tapping, Combine) to enter Manual mode 3.
REPLACEMENT DOME LED REPLACEMENT Remove the 2 mounting screws on Disconnect LED cable connector as needed both sides of the top dome cover. Remove the LED by lifting the springs holder and push down the LED housing Reverse the above steps to reinstall the LED...
REPLACEMENT STEAMERS REPLACEMENT 1. REMOVE THE LEFT SIDE PANEL Swing up the left armrest Unscrew the 2 thumbscrews as indicated in the above figure Remove the side panel by lift the panel out of the holder then pull out the panel. 2.
REPLACEMENT AF-CONTROL BOX REPLACEMENT 1. REMOVE THE RIGHT-SIDE PANEL Swing up the right armrest Unscrew the 2 thumbscrews as indicated in the above figure Remove the side panel by lift the panel out of the holder then pull out the panel. 2.
Page 24
REPLACEMENT REPLACE AF-CONTROL BOX 3. WIRING DIAGRAM AF-CONTROL BOX Power plug 3 prong Steamer (WHITE) Power plug 2 prong Air Pump (BLACK) Power socket Steamer Out Power socket Air Pump (WHITE) (BLACK) Female power plug (BLACK) AUTO-FILL3 Power socket Whirlpool (BLACK) Power socket Drain Pump (BLUE)
Page 25
CLEANING PROCEDURE IS REQUIRED BY STATE BOARDS Note: *** A cleaning log should be kept with each pedicure spa *** Each State will have slight differences in cleaning policies, please check with your state’s Bureau of Barbering and Cosmetology or Regulatory Authority for specific details. Safety Requirements for Pedicure Spas The Bureau of Barbering and Cosmetology requires that salons using whirlpool pedicure foot spas must follow these disinfecting procedures to ensure proper cleaning and maintenance of the...
Page 26
Limited warranty term commences on date product is received by the customer. 2-YEAR PARTS EXCHANGE LIMITED WARRANTY: All parts for the pedicure spa chair model: Prive Lounge, Prestige, Envision Spa, Elite, Liberte, Luminous and Infinity. 90-DAY PARTS EXCHANGE LIMITED WARRANTY ON INDIVIDUAL PARTS SOLD: All purchased parts will be covered for 90-Day parts exchange only.
