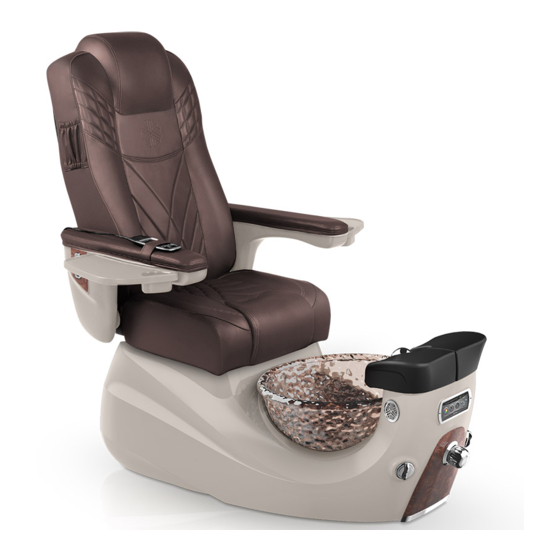

LIBERTE /LUMINOUS PEDICURE SPA USER MANUAL
RECEIVING AND INSPECTION: If missing parts or damages are found, please notify the carrier at once and
insist on a notation of the damage on the bill of lading. DO NOT DISCARD THE SHIPPING BOX. If you give
the carrier a clear receipt for goods that have been damaged in transit, you do so at your own risk and
expense.
WARNING:
1.This Product is for indoor use only & is not recommended for use on Carpet or Wood floor
2. This Product must be connected to a circuit outlet protected by a Class A GFCI
3. DO NOT USE if you have poor circulation, or if any area of your feet or legs has an open sore
4. Maximum temperature of the water should never exceed 100 degrees F.
5. DO NOT STEP/ STAND IN THE FOOT BASIN.
6. NEVER bring and/or operate any electrical devices in or near the Pedicure Spa.
7. Maximum load in the spa chair is 250lbs (114kg).
PROPER INSTALLATION ACCORDING TO THIS MANUAL IS REQUIRED. FAILURE TO DO SO MAY RESULT IN
SERIOUS INJURY AND/OR WARRANTY WILL BE NULL. YOU MUST HAVE A LICENSED PLUMBER TO CONNECT THE
SPA AND WATER SYSTEM IN PLACE SAFELY.
STATES' NOTICE
In the commonwealth of most states, all pedicure spas installed for Commercial usage are required to have a
backflow preventer at the salon's cost. This device shall be installed between the water inlet hose and the
spout.
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
THE KEY TO SALON SUCCESS
Table of Contents
1
2
3
3
5
8
9
10
12
13
14
15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lexor LIBERTE
Summary of Contents for Lexor LIBERTE
-
Page 1: Table Of Contents
THE KEY TO SALON SUCCESS LIBERTE /LUMINOUS PEDICURE SPA USER MANUAL RECEIVING AND INSPECTION: If missing parts or damages are found, please notify the carrier at once and insist on a notation of the damage on the bill of lading. DO NOT DISCARD THE SHIPPING BOX. If you give the carrier a clear receipt for goods that have been damaged in transit, you do so at your own risk and expense. -
Page 2: Identifying Parts For Liberte Model
® Identifying Parts for Liberte Model Pedicure Spa with Massage System... -
Page 3: Identifying Parts For Luminous Model
® Identifying Parts for Luminous Model Pedicure Spa with Massage System... -
Page 4: Wall Clearance & Spa To Spa Recommended Clearance
WALL CLEARANCE & SPA to SPA RECOMMENDED CLEARANCE Both the back of the chair and seat are adjustable. When the seat is at a maximum VERY IMPORTANT: incline, one must allow 18"(44cm) from the back wall to the foot spa. This minimum distance assures an unobstructed recline. - Page 5 2. ASSEMBLE THE BACK AND SEAT CUSHION 3. ASSEMBLE THE ARM-RESTS...
-
Page 6: Installation Of Plumbing System
INSTALLATION OF PLUMBING SYSTEM NOTE: The drainage and water supply system installation requires a licensed plumber. Detailed instructions can be found in the manual book. Instructions and local plumbing codes need to be carefully compiled to pass the city inspections. 1. - Page 7 POWER DRAIN 1) The power drainage installation should comply with SECTION 807.1, 2018 UPC. 2) Trap, vent, and connectors should comply with SECTION 1001.1 and 1001.2 UPC. 3) An alternative code needs to be complied with by the states not adopting UPC. a) Drainage system: SECTION 701.2 and 702.2 IPC (or local plumbing code) b) Trap, vent, and connectors: SECTION 1002.1 and 1002.2 IPC (or local plumbing code) 4) The installer/plumber is responsible for obtaining and complying with the local plumbing code for...
- Page 8 DRAIN SYSTEM RECOMMENDATION HOT/CODE WATER SUPPLY SYSTEM NOTE: The drainage and water supply system installation requires a licensed plumber. Detailed instructions can be found in the manual book. Instructions and local plumbing codes need to be carefully compiled to pass the city inspections. New constructions: drain a good amount of water in a bucket to remove all debris from the new hot/cold water pipes before connecting to new SPA chairs...
-
Page 9: Installation Of Ventilation System (Optional)
INSTALLATION OF VENTILATION SYSTEM (OPTIONAL) (The Spa comes with a preinstalled ventilation system because it is required by some state regulations. Please contact your state department for the requirements and regulations) -
Page 10: Electrical And Pedicure Spa Component Specifications
All electrical connections MUST be made by a licensed electrician following Local & National Electrical and Building Codes. SPECIFICATIONS LIST OF ELITE SPA CHAIR Spa(seat up-right): L=53”(134cm) W=31”(79cm) w/ Tray =47”(120cm) Liberte Spa chair H=56”(142cm) L=68”(172cm) Spa(fully reclined): Spa Dimensions & Weights ~ 200 lbs. -
Page 11: Pre-Operational Setup
PRE-OPERATIONAL SETUP 1. SETUP THE Air-Jet 2. SETUP THE Eco-Jet... - Page 12 The system should be set as the picture above before each service section. Note: to assure the safety of the operator, if the silicon pipe is not connected or accidentally popped out from the connector, the safety device will shut off the steam and cut the steam supply.
-
Page 13: Operate Auto-Fill™/Jet Switch
OPERATE Auto-Fill™/Jet Switch : purchases Locate the control panel at the front of the spa base. Follow the instructions below to operate the pedicure spa. ● Twist Auto-Fill/Jet switch clockwise then release to start auto-fill. Water will automatically shut off when it reaches the preset water level. -
Page 14: Operate Digital Control Panel
OPERATE DIGITAL CONTROL PANEL : ● The Blue/White LED light indicates the current working status. ● Eco-Jet action can cause small amounts of soap or body oil to foam excessively. For this reason, refrain from using these products during the whirlpool cycle. ●... -
Page 15: Reset Water Sensor And Water Level
RESET WATER SENSOR AND WATER LEVEL Reset the water sensor (Empty basin before activating this mode). ● A reset water sensor is required when the water level is out of range. ** Note : - This will also reset the water level to default = 3. - Click should be pressed slowly. -
Page 16: Massage System & Remote Controller
** Note : - Click should be pressed slowly. - Press and hold the SteamHeat Button for 3 sec to resume system operation or the system will be automatically resumed if no action is taken in 20 sec. MASSAGE SYSTEM & REMOTE CONTROLLER 1. - Page 17 Operation and C CLEANING PROCEDURE IS REQUIRED BY STATE BOARDS Note: *** A cleaning log should be kept with each pedicure spa *** Each State will have slight differences in cleaning policies, please check with your state’s Bureau of Barbering and Cosmetology or Regulatory Authority for specific details.
- Page 18 Part Shipping Fee Shipping cost for the replacement part is covered under warranty. To continue the warranty, Salon owners have 15 days to return the defective parts to Lexor at the Salon owner’s expense before the next service. Limited Warranty Terms and Conditions Wear and tear, physical damage, abuse, misuse, accidental events, freight damaged Furniture lines are excluded.
