Page 2: Table Of Contents
Table of Contents Identifying Parts for Elite® Model Identifying Parts for PrestigeTMModel WALL CLEARANCE & SPA to SPA RECOMMENDED CLEARANCE... -
Page 3: Identifying Parts For Elite® Model

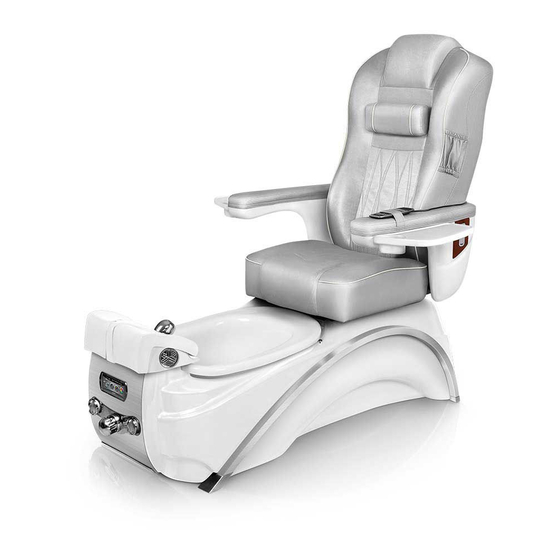

Identifying Parts IDENTIFYING PARTS Identifying Parts for Elite Model ® Pedicure Spa with Massage System 1. Headrest 11.Ventilation Inlet 2. Chair Cushion with Massage 12. Air-Jet Connector 3. Armrest Cushion 13. Liner Hook 4. Massage Remote Control 14. Up/Down Armrest 5. -
Page 4: Identifying Parts For Prestigetmmodel
Identifying Parts IDENTIFYING PARTS Identifying Parts for Prestige Model Pedicure Spa with Massage System 1. Headrest 11.Ventilation Inlet 2. Chair Cushion with Massage 12. Air-Jet Connector 3. Armrest Cushion 13. Liner Hook 4. Massage Remote Control 14. Up/Down Armrest 5. Aurora Bowl 15. -
Page 5: Wall Clearance & Spa To Spa Recommended Clearance
INSTALLATION WALL CLEARANCE & SPA to SPA RECOMMENDED CLEARANCE Both the back of the chair and seat are adjustable. When the seat is at a maximum VERY IMPORTANT: incline, one must allow 18"(44cm) from the back wall to the foot spa. This minimum distance assures an unobstructed recline. - Page 6 INSTALLATION trench 2. ASSEMBLE THE BACK AND SEAT CUSHION Align the back cushion to fit on the back Align the screws to the holes on the seat frame. shell. Push the cushion firmly onto the Put the seat cushion onto the frame. Then use VELCRO straps.
-
Page 7: Installation Of Plumbing System
PLUMBING SYSTEM INSTALLATION OF PLUMBING SYSTEM NOTE: The drainage and water supply system installation require a licensed plumber. Instructions and local plumbing codes need to be carefully compiled to pass the city inspections. 1. GRAVITY DRAIN 1) The gravity drainage installation should comply with SECTION 701.0, 2018 UPC. 2) Trap, vent, and connectors should comply with SECTION 1001.1 and 1001.2 UPC. - Page 8 PLUMBING SYSTEM 2. POWER DRAIN 1) The power drainage installation should comply with SECTION 807.1, 2018 UPC. 2) Trap, vent, and connectors should comply with SECTION 1001.1 and 1001.2 UPC. 3) An alternative code needs to be complied with by the states not adopting UPC. a) Drainage system: SECTION 701.2 and 702.2 IPC (or local plumbing code) b) Trap, vent, and connectors: SECTION 1002.1 and 1002.2 IPC (or local plumbing code) 4) The installer/plumber is responsible for obtaining and complying with the local plumbing code for...
- Page 9 PLUMBING SYSTEM 3. DRAINAGE SYSTEM RECOMMENDATION HOT/CODE WATER SUPPLY SYSTEM NOTE: The drainage and water supply system installation require a licensed plumber. Detailed instructions can be found in the manual book. Instructions and local plumbing codes need to be carefully compiled to pass the city inspections. New constructions: drain a good amount of water in a bucket to remove all debris from the new hot/cold water pipes before connecting to new SPA chairs...
-
Page 10: Installation Of Ventilation System (Optional)
VENTILATION INSTALLATION OF VENTILATION SYSTEM (OPTIONAL) (The Spa comes with a preinstalled ventilation system to fulfill the regulations for some states. Please contact your state department for the requirements and regulations) -
Page 11: Electrical And Pedicure Spa Component Specifications
Electrical and Building Codes. WARNING: IT IS EXTREMELY IMPORTANT THAT THE FOOT SPA OPERATES WITH GFCI PROTECTION A 110V-50/60Hz 15 Amp GFCI MUST BE UTILIZED SPECIFICATIONS LIST OF ELITE SPA CHAIR Spa (seat up-right): L=58” (147cm) W=31” (79cm) w/ Tray =47” (120cm) H=56”... -
Page 12: Pre-Operational Setup
OPERATION & CARE OPERATION & CARE OPERATION & CARE OPERATION & CARE PRE-OPERATIONAL SETUP 1. SETUP THE Air-Jet Plug in the other end of the pipe to the Air-connector 2. SETUP THE Eco-Jet... - Page 13 OPERATION & CARE 3. Drain Stopper Use the blades on the drain stopper to poke through the liner for easy drainage access. The system should be set as the picture below before each service section. (Location of the Air Connector slightly varies on different models. Refer to the page 1-2 to locate)
-
Page 14: Operate Auto-Fill™/Jet Switch
OPERATION & CARE OPERATE Auto-Fill™/Jet Switch: Locate the control panel at the front of the spa base. Follow the instructions below to operate the pedicure spa. ● Twist Auto-Fill/Jet switch clockwise then release to start auto-fill. Water will automatically shut off when it reaches the preset water level. ●... -
Page 15: Operate Digital Control Panel(Dcs)
OPERATION & CARE OPERATE DIGITAL CONTROL PANEL(DCS) : ❖ The LED light indicates the current working status. ❖ The factory setting for Dual-Jet: ➢ By default, Eco-jet automatically turns on with Auto-fill. Click the “WhirlPool” button to turn it on/off. ➢... -
Page 16: Reset Water Sensor And Water Level
OPERATION & CARE OPERATION & CARE RESET WATER SENSOR AND WATER LEVEL Reset the water sensor (Empty basin before activating this mode). ● A reset water sensor is required when the water level is out of range. ** Note: - This will also reset the water level to default = 3. - Click should be pressed slowly. -
Page 17: Massage System & Remote Controller
OPERATION & CARE ** Note: - Click should be pressed slowly. - Press and hold the “WHIRLPOOL” button again for 3 sec to resume system operation or the system will be automatically resumed if no action is taken in 20 sec. MASSAGE SYSTEM &... -
Page 18: Warning
MISCELLANEOUS WARNING: YOU MUST ALWAYS REFER TO YOUR STATE OR LOCAL GUIDELINES FOR CLEANING REQUIREMENTS. OVERNIGHT SOAKING WITH OVERDOSED CHLORINE MAY DAMAGE Operation and C CLEANING PROCEDURE IS REQUIRED BY STATE BOARDS Note: *** A cleaning log should be kept with each pedicure spa *** Each State will have slight differences in cleaning policies, please check with your state’s Bureau of Barbering and Cosmetology or Regulatory Authority for specific details. - Page 19 (RMA number) which is provided by Lexor’s Customer Support Representative. The RMA number will help us locate the parts and complete the service in a timely manner. Lexor is not responsible for missing/lost returned defective parts which are being returned without the RMA number issued.
