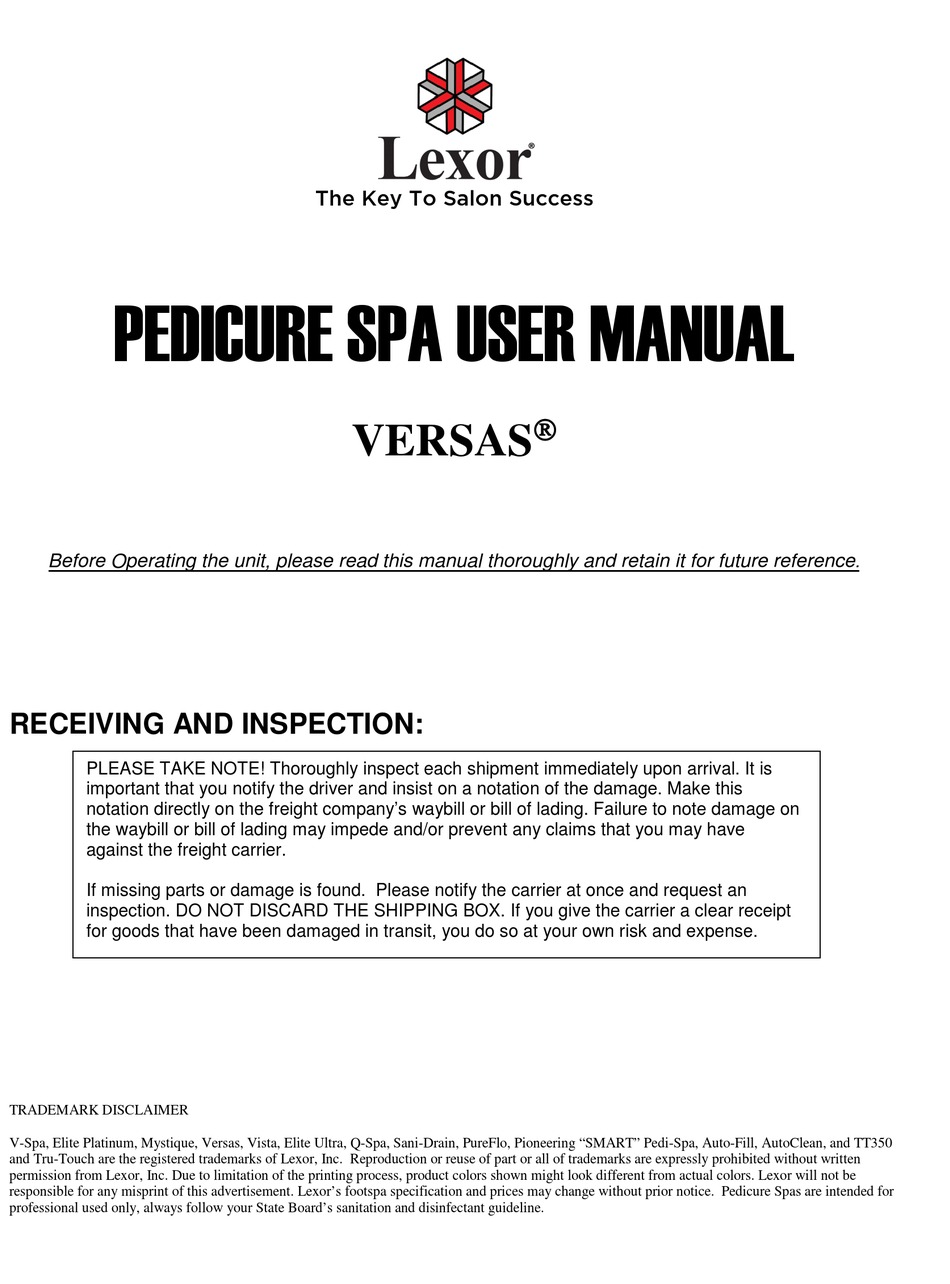

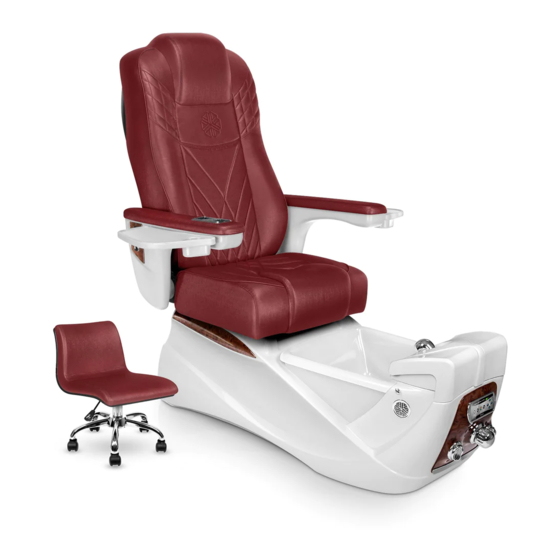

PEDICURE SPA USER MANUAL
Before Operating the unit, please read this manual thoroughly and retain it for future reference

RECEIVING AND INSPECTION:

PLEASE TAKE NOTE! Thoroughly inspect each shipment immediately upon arrival. It is
important that you notify the driver and insist on a notation of the damage. Make this
notation directly on the freight company's waybill or bill of lading. Failure to note damage on
the waybill or bill of lading may impede and/or prevent any claims that you may have
against the freight carrier.
If missing parts or damage is found. Please notify the carrier at once and request an
inspection. DO NOT DISCARD THE SHIPPING BOX. If you give the carrier a clear receipt
for goods that have been damaged in transit, you do so at your own risk and expense.
TRADEMARK DISCLAIMER
V-Spa, Elite Platinum, Mystique, Versas, Vista, Elite Ultra, Q-Spa, Sani-Drain, PureFlo, Pioneering "SMART" Pedi-Spa, Auto-Fill, AutoClean, and TT350
and Tru-Touch are the registered trademarks of Lexor, Inc. Reproduction or reuse of part or all of trademarks are expressly prohibited without written
permission from Lexor, Inc. Due to limitation of the printing process, product colors shown might look different from actual colors. Lexor will not be
responsible for any misprint of this advertisement. Lexor's footspa specification and prices may change without prior notice. Pedicure Spas are intended for
professional used only, always follow your State Board's sanitation and disinfectant guideline.
The Key To Salon Success
VERSAS
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VERSAS and is the answer not in the manual?

Questions and answers

Summary of Contents for Lexor VERSAS

  • Page 1: Receiving And Inspection

    Tru-Touch are the registered trademarks of Lexor, Inc. Reproduction or reuse of part or all of trademarks are expressly prohibited without written permission from Lexor, Inc. Due to limitation of the printing process, product colors shown might look different from actual colors. Lexor will not be responsible for any misprint of this advertisement.
  • Page 2: Ul Certification

    20140424-E319402 Certificate Number E319402-20130425 Report Reference 2014-April-24 Issue Date LEXOR INC Issued to: 14800 GOLDENWEST ST WESTMINSTER CA 92683 COMPONENT - PLUMBING ACCESSORIES This is to certify that representative samples of Pedicure Spa Pump / Jet Assembly, Model Pureflo 7 and...
  • Page 3: Table Of Contents

    UL CERTIFICATION .......................2 TABLE OF CONTENTS....................3 SAFETY PRECAUTION....................4 PARTS ® Identifying Parts for Versas Model..................5 INSTALLATION SpaTo Spa Recommended Clearance / Top Chair Manual Lock- Revision 1....6 Top Chair - Auto Lock -Revision 2..................7 Plumbing Connection / Flow Pattern for Gravity Drain:............8 Plumbing Flow Pattern for Power Drain (under ground)...........9...
  • Page 4: Safety Precaution

    Safety Precautions ______________________________________________________________ READ AND FOLLOW INSTRUCTIONS CAREFULLY SAFETY PRECAUTIONS: Warning THIS PRODUCT IS FOR INDOOR USE ONLY & IS NOT RECOMMENDED FOR USE ON CARPET OR WOOD FLOORS DISCONNECT POWER SUPPLY CORD BEFORE SERVICING This product is to be connected to a branch circuit outlet protected by a Class A GROUND FAULT CIRCUIT INTERRUPTER (GFCI), and the GFCI shall be tested regularly for continued protection and correct operation.
  • Page 5: Identifying Parts For Versas Model

    Identifyng Parts __________________________________________________________ ® Identifying Parts for Versas Model Pedicure Whirlpool with Massage System 1. Head Rest Discharge On/Off Knob Up/Down Armrest 2. Chair Cushion with Hot/Cold Water Mixer 13. Tub Light Massage Valve 14. Drain Stopper 3. Armrest Cushion 10.
  • Page 6: Installation

    Installation ________________________________________________________________ WALL CLEARANCE & SPA to SPA RECOMMENDED CLEARANCE: TOP CHAIR REVISION 1 : FOLD AND UNFOLD BACK-REST MASSAGE 1. To set backrest up: Lift up the backrest until a “Click” is heard. Make sure the lever is locked before operating.
  • Page 7: Top Chair - Auto Lock -Revision 2

    Installation ________________________________________________________________ TOP CHAIR REVISION 2 (2 Units installation. Packed in Separated Boxes) Step 1: Line-up Backrest Frame and locking screws to the open trenches located on seat frame Step 2 : Connect actuator power and system will auto lock the connectors by following wire's color Backrest Frame Step 3: Line-up &...
  • Page 8: Plumbing Connection / Flow Pattern For Gravity Drain

    Installation _____________________________________________________________ Plumbing Connections: Warning Before any connection, pay attention to these subjects: 1. Debris or residue may become lodged into the Hot and Cold hoses during construction, which may clog the Hot and Cold Mixer. To clean, drain a good amount of water from water hoses to bucket before connecting them to the pedicure spa.
  • Page 9: Plumbing Flow Pattern For Power Drain (Under Ground)

    Installation ______________________________________________________________ POWER DRAIN : Connect Drain System with Drain Pump - Using ¾” schedule 40 PVC (Power Drain). Connect drain to meet local plumbing codes. - Flexible connection to the drain should be removable for easy service and should not be permanent to prevent damages.
  • Page 10: Hot And Cold Water Supply Lines

    Installation ______________________________________________________________ HOT AND COLD WATER SUPPLY LINES Carefully connect ½” ID supply hoses (not provided) to fresh water sources. Shut-off valves (not provided) should be utilized. Valves should be placed outside the tub for easy access. Before water line connections, please follow below: Determine if your spa chair is used for a new construction of a salon or a replacement spa chair.
  • Page 11: Spa Specification

    Electrical Switches One (1) electro-mechanical knob for the Drain. Rated at 5A contact. Installation should be made with connection at the external interface parts. Plug & Play Installation Please consult with your local plumber. Safety Versas® Pedicure Spa is UL listed.
  • Page 12: Operation And Care

    Operation and Care _______________________________________________________ OPERATION AND CARE INSTRUCTIONS Manual Operation (For Non Auto-Fill™/Drain Models): Filling Close the Drain Stopper by turning the Drain Knob counterclockwise. Utilizing the single lever hot/cold mixer faucet located on the front of the Pedicure Spa, fill the tub to the water level above the whirlpool jet at least 1 inch.
  • Page 13: Auto-Fill™ Models Operation And Care

    Operation and Care ______________________________________________________ AUTO OPERATION (Auto-Fill™ Models Optional on Versas Spa): 1.1 Use faucet knob to adjust optimal water temperature at “H” (Left) or “C” (Right) directory. 1.2 Pull out and tilt down faucet knob to shut off water any time during the automatic or manual operational cycle.
  • Page 14: Magnetic Whirlpool Jet & Auto Fill Liner & Foot-Rest Calf Support

    Operation and Care ________________________________________________________ MAGNETIC WHIRLPOOL JET VERSION: Position the Trench Mark on impeller housing to 12 O’clock. Logo must be on top Turn Counterclockwise to remove Cap Cover Turn Clockwise to Close Cap Cover AUTOFILL SYSTEM USING PLASTIC LINER (Option on QSpa) Place plastic liner under this AutoFill Sensor.
  • Page 15: Conventional Whirpool Jet & Massage Remote Control

    Operation and Care _____________________________________________________ CONVENTIONAL WHIRLPOOL JET VERSION JET COVER REMOVAL & INSTALLATION: 1. Turn Counterclockwise to remove. Turn Clockwise to install. MASSAGE SYSTEM & REMOTE CONTROLLER: Press Auto Button to start Auto mode. Press again to turn off massage. Auto and Manual mode will run for duration of 20min.
  • Page 16: Cleaning Suggestion For Pedicure Spas

    Operation and Care ______________________________________________________ WARNING ou must always refer to your state or local guidelines for cleaning requirements Overnight soaking with overdosed Chlorine may damage rubber part in basin CLEANING PROCEDURE IS REQUIRED BY STATE BOARDS Note: *** A cleaning log should be kept with each pedicure spa *** Each State will have slight differences in cleaning policies, please check with your state’s Bureau of Barbering and Cosmetology or Regulatory Authority for specific details.
  • Page 17 Furthermore, this limited warranty is void if removed from its place of initial shipment. *Continuing a policy of constant research and development to improve the quality of our products, Lexor, Inc. reserves the right to change pricing, parts, design and specifications without prior notice or obligation.
  • Page 18 LEXOR INC.14800 GOLDENWEST ST., WESTMINSTER, CA 92683, USA CUSTOMER CARE: TEL: 1-800-559-3630 FAX: 1-714-622-1740 www.lexor.com 2012 All Rights reserved. Design and Specifications are subject to change without notice...
