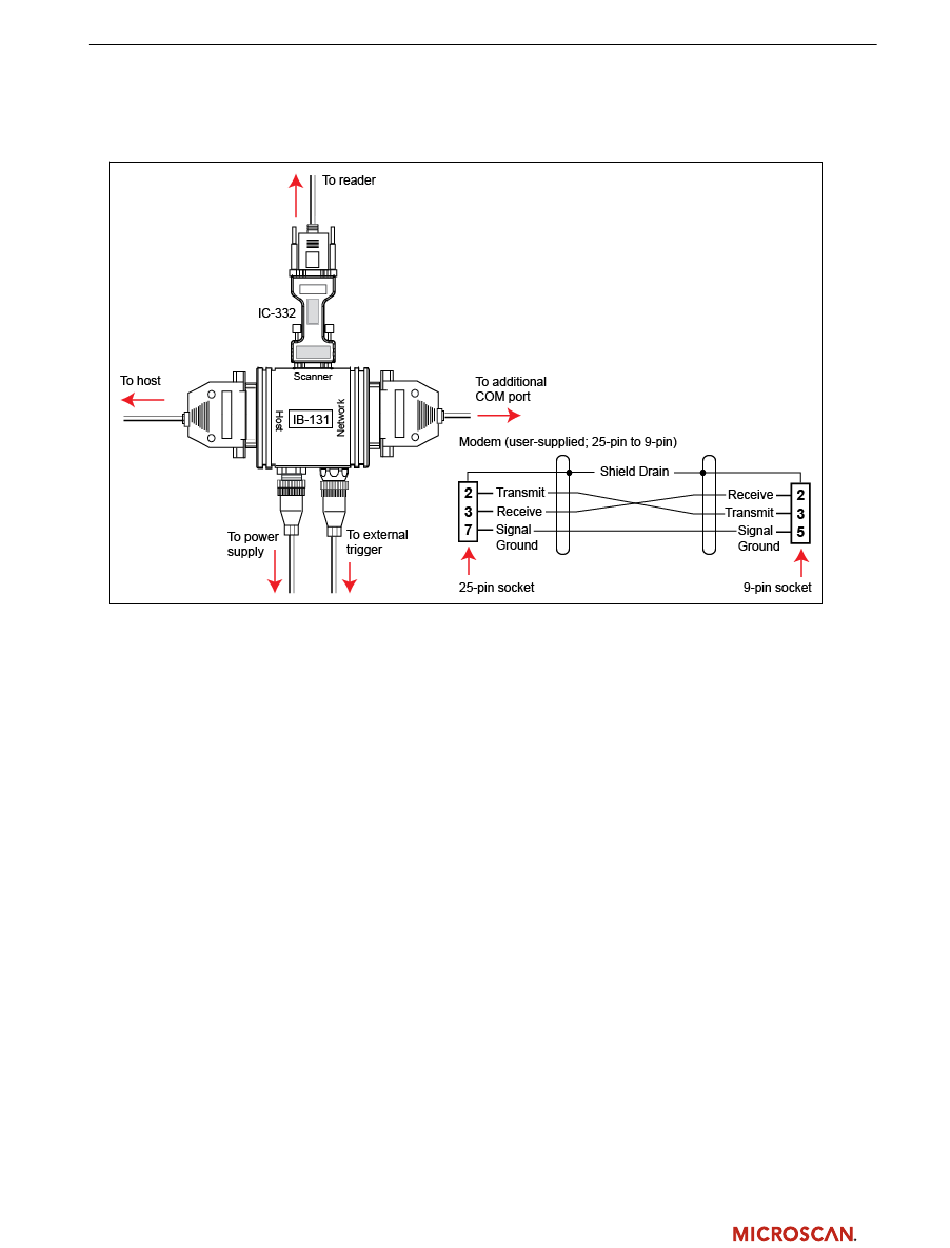

Hardware Configuration for Aux Port Operation
If you will be using the Aux Port in tandem with the host port, you will need to include a modem cable in
your hardware configuration. The following illustration shows the correct cabling for Aux Port operation.
Microscan Systems, Inc. 1201 SW 7th St.
Renton, WA 98057 USA
Tel: 425 226 5700
Fax: 425 226 8250
www.microscan.com
