Step 3 — Explore the EZ Trax Interface

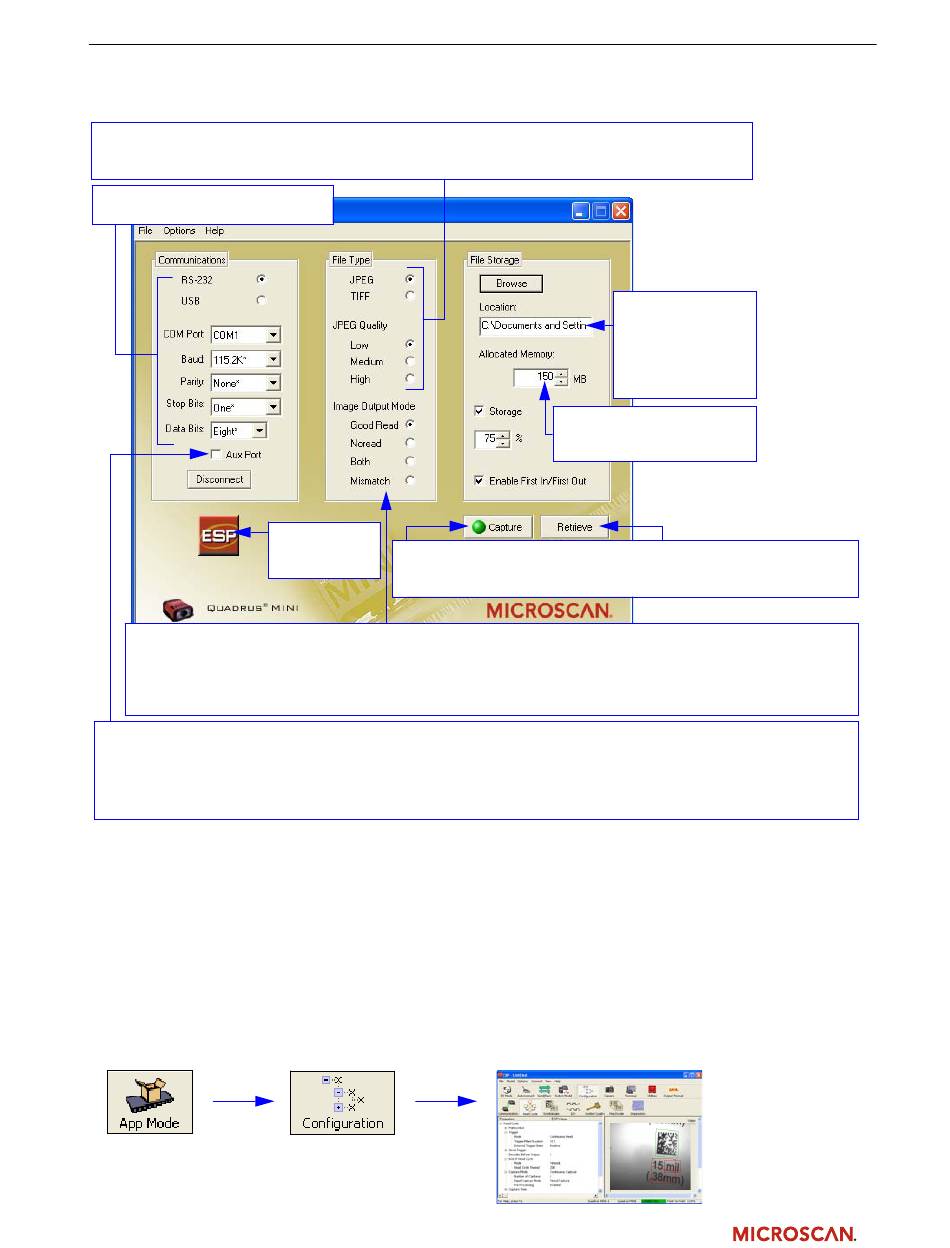

Choose which format to use for output of captured symbol images.
Hint: TIFFs and BMPs, while higher resolution than JPEGs, take significantly longer to transfer.
Set connection parameters here.
EZ Trax can capture and store an image for each Good Read, Noread, or Mismatch (between the captured
symbol and a Master Symbol). It can also be set to capture for both Good Reads and Noreads.
Note: Image Output options vary depending on the reader that is in operation. The Mismatch option is
available for Quadrus MINI and MS-4 only.
When the Aux Port box is checked, you can use the Aux Port to transfer image captures while you use the Host
Port to run another application in tandem with EZ Trax.
Note: Only the Quadrus MINI and MS-4 support this feature. See
about how to prepare the reader for Aux Port operation.
Step 4 — Configure Your Reader in ESP
Your reader can be configured in three ways using ESP:
• Choosing items from dropdown menus in the tree controls.
• Sending commands in Terminal mode.
• Interacting directly with the graphic interfaces.
To configure your reader in ESP, click the App Mode button. Once you are in App Mode, click the
Configuration button and then use the tree controls, the Terminal window, and the other graphic
interfaces available to set and save desired reader parameters.
Important: The reader's Trigger Mode, <K200>, must be set to External Edge, and its Capture Mode,
<K241>, must be set to Rapid Capture for EZ Trax to operate correctly.
Click here to
open ESP.
Click the Capture button to begin the image capture and storage
process. Click Retrieve to access stored images.
Select a location
in host memory
where EZ Trax
can store captured
images.
Set the amount of memory
allocated for storage.
Configure Your Reader in ESP for details
