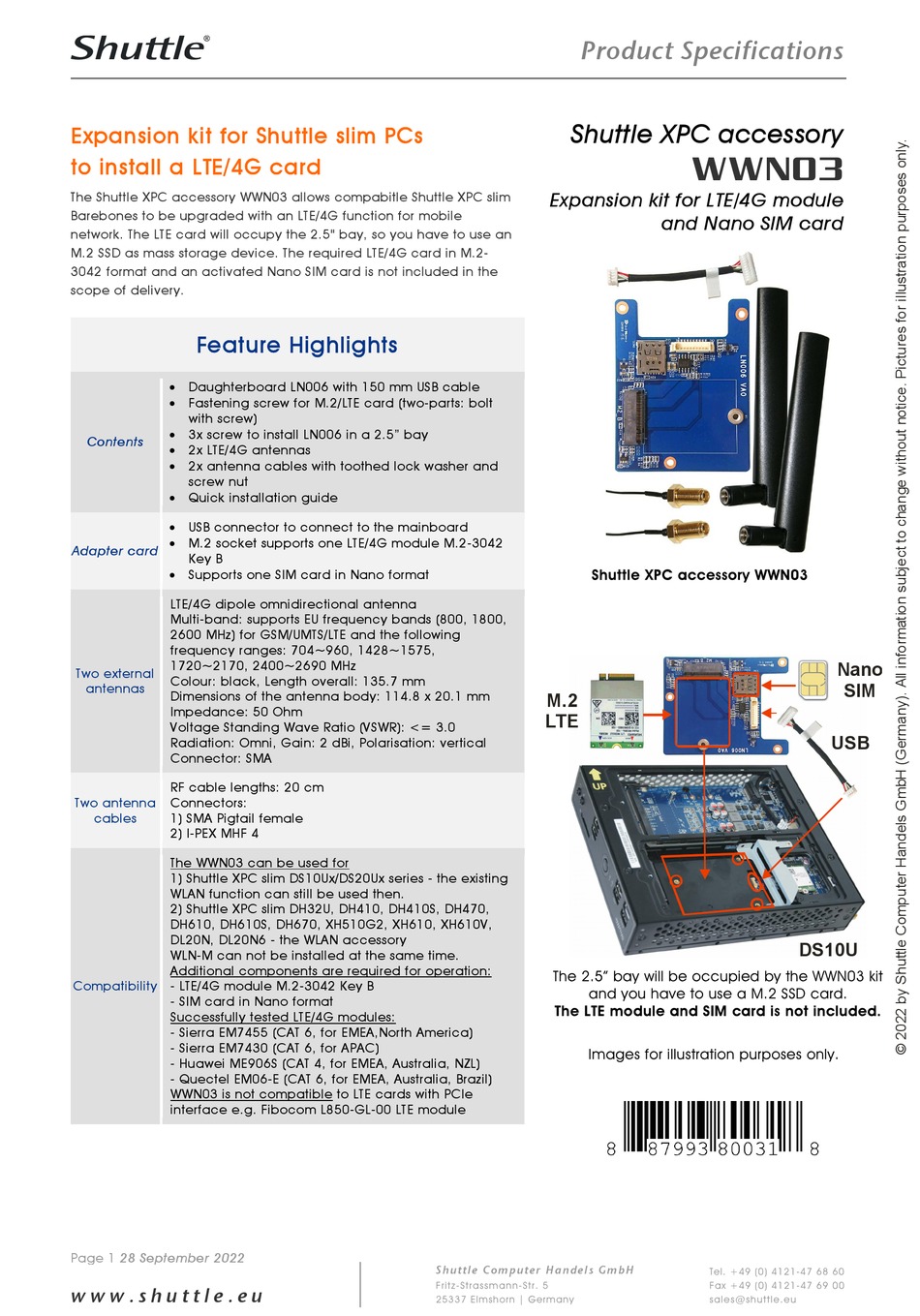

Shuttle WWN03 Product Specifications

Expansion kit for Shuttle slim PCs
to install a LTE/4G card
The Shuttle XPC accessory WWN03 allows compabitle Shuttle XPC slim
Barebones to be upgraded with an LTE/4G function for mobile
network. The LTE card will occupy the 2.5" bay, so you have to use an
M.2 SSD as mass storage device. The required LTE/4G card in M.2-
3042 format and an activated Nano SIM card is not included in the
scope of delivery.

Feature Highlights

 Daughterboard LN006 with 150 mm USB cable
 Fastening screw for M.2/LTE card (two-parts: bolt
with screw)
 3x screw to install LN006 in a 2.5" bay

Contents

 2x LTE/4G antennas
 2x antenna cables with toothed lock washer and
screw nut
 Quick installation guide
 USB connector to connect to the mainboard
 M.2 socket supports one LTE/4G module M.2-3042
Adapter card
Key B
 Supports one SIM card in Nano format
LTE/4G dipole omnidirectional antenna
Multi-band: supports EU frequency bands (800, 1800,
2600 MHz) for GSM/UMTS/LTE and the following
frequency ranges: 704~960, 1428~1575,
1720~2170, 2400~2690 MHz
Two external
Colour: black, Length overall: 135.7 mm
antennas
Dimensions of the antenna body: 114.8 x 20.1 mm
Impedance: 50 Ohm
Voltage Standing Wave Ratio (VSWR): <= 3.0
Radiation: Omni, Gain: 2 dBi, Polarisation: vertical
Connector: SMA
RF cable lengths: 20 cm
Two antenna Connectors:
cables 1) SMA Pigtail female
2) I-PEX MHF 4
The WWN03 can be used for
1) Shuttle XPC slim DS10Ux/DS20Ux series - the existing
WLAN function can still be used then.
2) Shuttle XPC slim DH32U, DH410, DH410S, DH470,
DH610, DH610S, DH670, XH510G2, XH610, XH610V,
DL20N, DL20N6 - the WLAN accessory
WLN-M can not be installed at the same time.
Additional components are required for operation:

Compatibility

- LTE/4G module M.2-3042 Key B
- SIM card in Nano format
Successfully tested LTE/4G modules:
- Sierra EM7455 (CAT 6, for EMEA,North America)
- Sierra EM7430 (CAT 6, for APAC)
- Huawei ME906S (CAT 4, for EMEA, Australia, NZL)
- Quectel EM06-E (CAT 6, for EMEA, Australia, Brazil)
WWN03 is not compatible to LTE cards with PCIe
interface e.g. Fibocom L850-GL-00 LTE module
Page 1 28 September 2022
w w w . s h u t t l e . e u
Product Specifications
Shuttle XPC accessory
Expansion kit for LTE/4G module
M.2
LTE
S h u tt l e C o m p u t er Ha n d e l s G m bH
WWN03
and Nano SIM card
USB
DS10U
Nano
SIM
