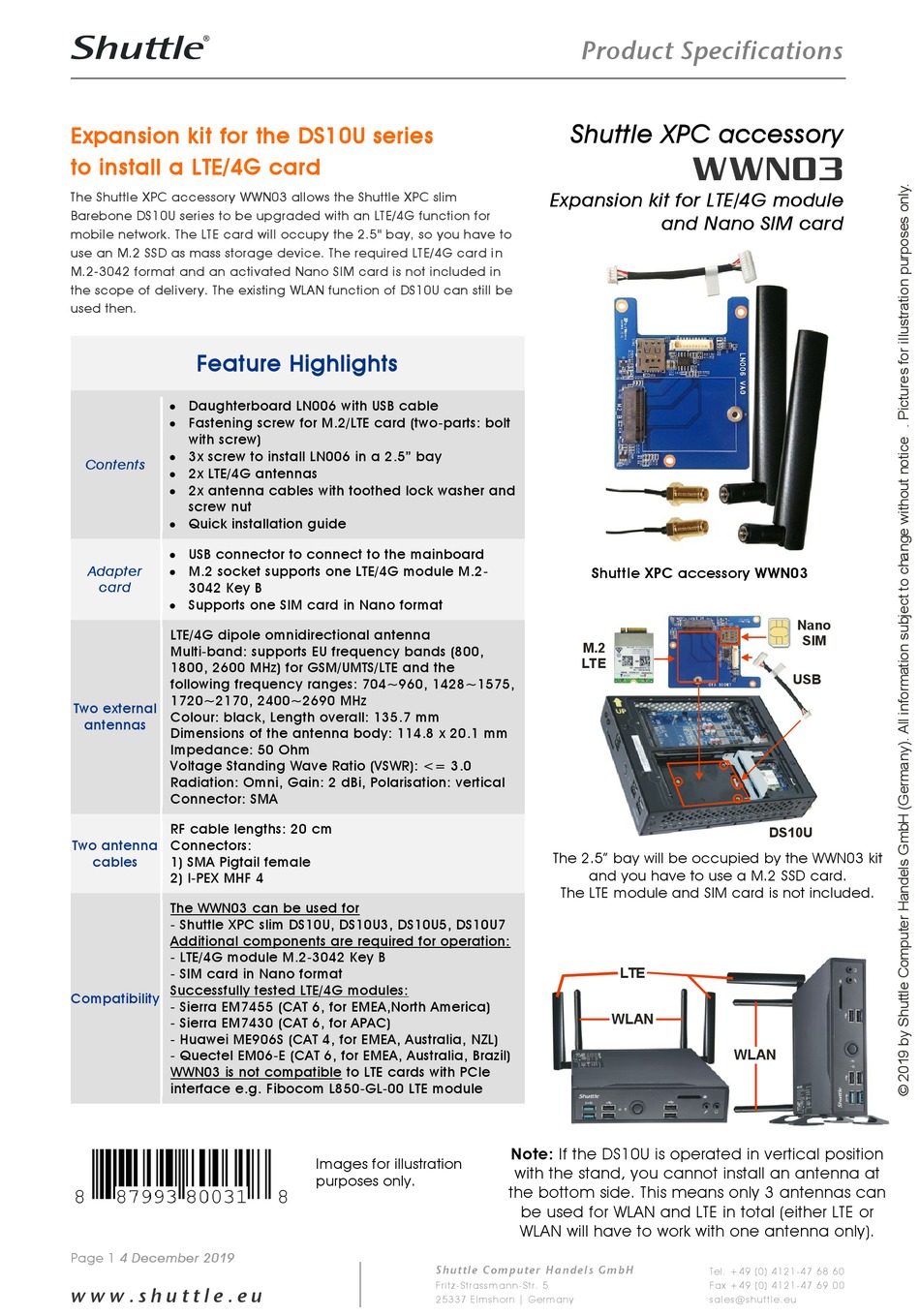

Shuttle WWN03 Product Specifications

Expansion kit for the DS10U series
to install a LTE/4G card
The Shuttle XPC accessory WWN03 allows the Shuttle XPC slim
Barebone DS10U series to be upgraded with an LTE/4G function for
mobile network. The LTE card will occupy the 2.5" bay, so you have to
use an M.2 SSD as mass storage device. The required LTE/4G card i n
M.2-3042 format and an activated Nano SIM card is not included in
the scope of delivery. The existing WLAN function of DS10U can still be
used then.

Feature Highlights

 Daughterboard LN006 with USB cable
 Fastening screw for M.2/LTE card (two-parts: bolt
with screw)
 3x screw to install LN006 in a 2.5" bay
Contents
 2x LTE/4G antennas
 2x antenna cables with toothed lock washer and
screw nut
 Quick installation guide
 USB connector to connect to the mainboard
Adapter  M.2 socket supports one LTE/4G module M.2-
card 3042 Key B
 Supports one SIM card in Nano format
LTE/4G dipole omnidirectional antenna
Multi-band: supports EU frequency bands (800,
1800, 2600 MHz) for GSM/UMTS/LTE and the
following frequency ranges: 704~960, 1428~1575,
1720~2170, 2400~2690 MHz
Two external
Colour: black, Length overall: 135.7 mm
antennas
Dimensions of the antenna body: 114.8 x 20.1 mm
Impedance: 50 Ohm
Voltage Standing Wave Ratio (VSWR): <= 3.0
Radiation: Omni, Gain: 2 dBi, Polarisation: vertical
Connector: SMA
RF cable lengths: 20 cm
Two antenna Connectors:
cables 1) SMA Pigtail female
2) I-PEX MHF 4
The WWN03 can be used for
- Shuttle XPC slim DS10U, DS10U3, DS10U5, DS10U7
Additional components are required for operation:
- LTE/4G module M.2-3042 Key B
- SIM card in Nano format
Successfully tested LTE/4G modules:
Compatibility
- Sierra EM7455 (CAT 6, for EMEA,North America)
- Sierra EM7430 (CAT 6, for APAC)
- Huawei ME906S (CAT 4, for EMEA, Australia, NZL)
- Quectel EM06-E (CAT 6, for EMEA, Australia, Brazil)
WWN03 is not compatible to LTE cards with PCIe
interface e.g. Fibocom L850-GL-00 LTE module
Page 1 4 December 2019
w w w . s h u t t l e . e u
Images for illustration
purposes only.
S h u t t l e C o m p u t er Ha n d e l s G m bH
Fr it z -St r assm an n -St r . 5
25337 Elmsh orn | German y

Product Specifications

Shuttle XPC accessory
Expansion kit for LTE/4G module
and Nano SIM card
Shuttle XPC accessory WWN03
M.2
LTE
The 2.5" bay will be occupied by the WWN03 kit
and you have to use a M.2 SSD card.
The LTE module and SIM card is not included.
LTE
WLAN
Note: If the DS10U is operated in vertical position
with the stand, you cannot install an antenna at
the bottom side. This means only 3 antennas can
be used for WLAN and LTE in total (either LTE or
WLAN will have to work with one antenna only).
WWN03
Nano
SIM
USB
DS10U
WLAN
