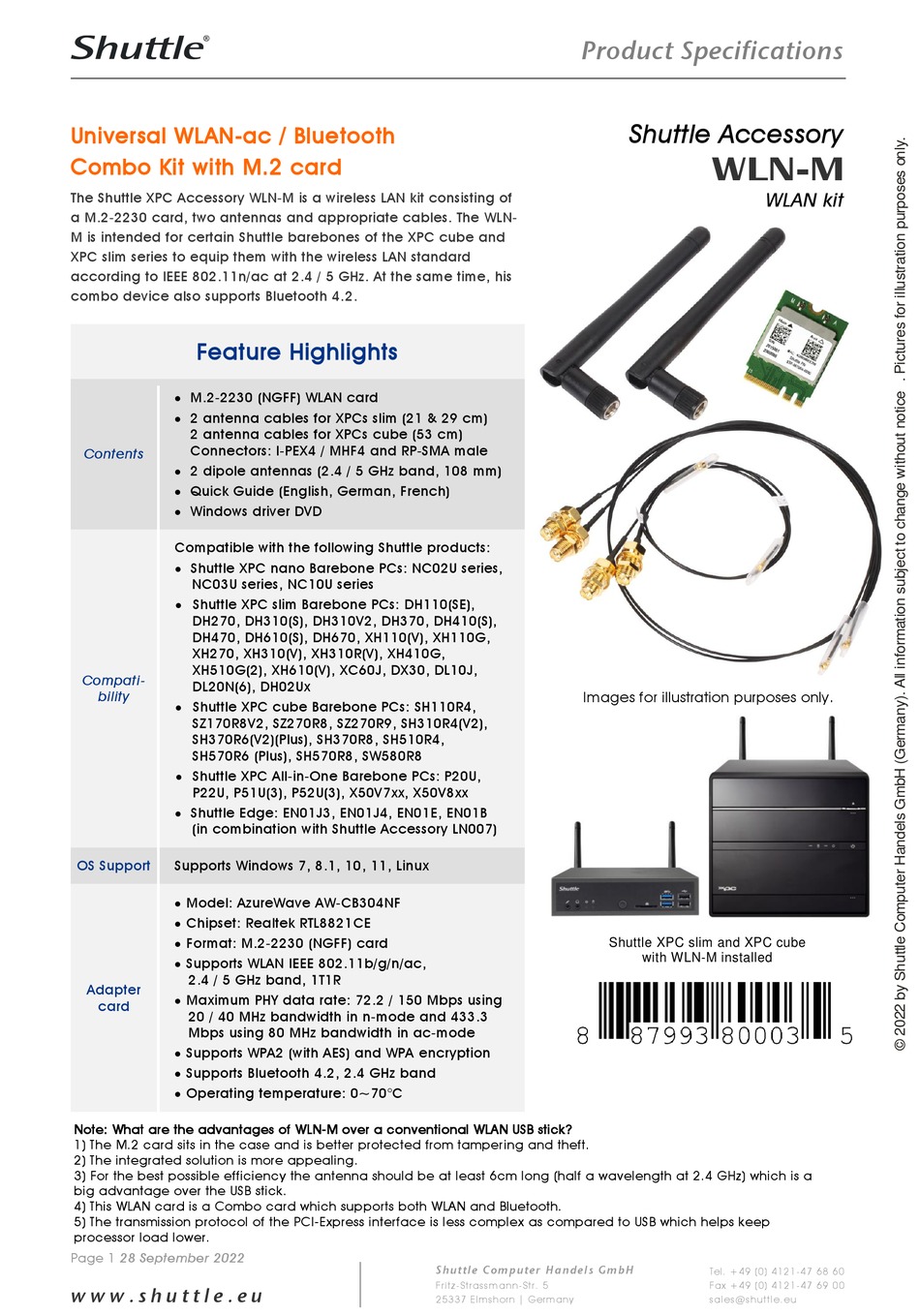

Shuttle WLN-M Manual

Universal WLAN-ac / Bluetooth
Combo Kit with M.2 card
The Shuttle XPC Accessory WLN-M is a wireless LAN kit consisting of
a M.2-2230 card, two antennas and appropriate cables. The WLN-
M is intended for certain Shuttle barebones of the XPC cube and
XPC slim series to equip them with the wireless LAN standard
according to IEEE 802.11n/ac at 2.4 / 5 GHz. At the same time, his
combo device also supports Bluetooth 4.2.

Feature Highlights

 M.2-2230 (NGFF) WLAN card
 2 antenna cables for XPCs slim (21 & 29 cm)
2 antenna cables for XPCs cube (53 cm)
Connectors: I-PEX4 / MHF4 and RP-SMA male

Contents

 2 dipole antennas (2.4 / 5 GHz band, 108 mm)
 Quick Guide (English, German, French)
 Windows driver DVD
Compatible with the following Shuttle products:
 Shuttle XPC nano Barebone PCs: NC02U series,
NC03U series, NC10U series
 Shuttle XPC slim Barebone PCs: DH110(SE),
DH270, DH310(S), DH310V2, DH370, DH410(S),
DH470, DH610(S), DH670, XH110(V), XH110G,
XH270, XH310(V), XH310R(V), XH410G,
XH510G(2), XH610(V), XC60J, DX30, DL10J,
Compati-
DL20N(6), DH02Ux
bility
 Shuttle XPC cube Barebone PCs: SH110R4,
SZ170R8V2, SZ270R8, SZ270R9, SH310R4(V2),
SH370R6(V2)(Plus), SH370R8, SH510R4,
SH570R6 (Plus), SH570R8, SW580R8
 Shuttle XPC All-in-One Barebone PCs: P20U,
P22U, P51U(3), P52U(3), X50V7xx, X50V8xx
 Shuttle Edge: EN01J3, EN01J4, EN01E, EN01B
(in combination with Shuttle Accessory LN007)

OS Support

Supports Windows 7, 8.1, 10, 11, Linux
 Model: AzureWave AW-CB304NF
 Chipset: Realtek RTL8821CE
 Format: M.2-2230 (NGFF) card
 Supports WLAN IEEE 802.11b/g/n/ac,
2.4 / 5 GHz band, 1T1R
Adapter
 Maximum PHY data rate: 72.2 / 150 Mbps using
card
20 / 40 MHz bandwidth in n-mode and 433.3
Mbps using 80 MHz bandwidth in ac-mode
 Supports WPA2 (with AES) and WPA encryption
 Supports Bluetooth 4.2, 2.4 GHz band
 Operating temperature: 0~70°C
Note: What are the advantages of WLN-M over a conventional WLAN USB stick?
1) The M.2 card sits in the case and is better protected from tampering and theft.
2) The integrated solution is more appealing.
3) For the best possible efficiency the antenna should be at least 6cm long (half a wavelength at 2.4 GHz) which is a
big advantage over the USB stick.
4) This WLAN card is a Combo card which supports both WLAN and Bluetooth.
5) The transmission protocol of the PCI-Express interface is less complex as compared to USB which helps keep
processor load lower.
Page 1 28 September 2022
w w w . s h u t t l e . e u

Product Specifications

Images for illustration purposes only.
Shuttle XPC slim and XPC cube
S h u t t l e C o m p u t er Ha n d e l s G m bH
Fr it z -St r assm an n -St r . 5
25337 Elmsh orn | German y
Shuttle Accessory
WLN-M
WLAN kit
with WLN-M installed
