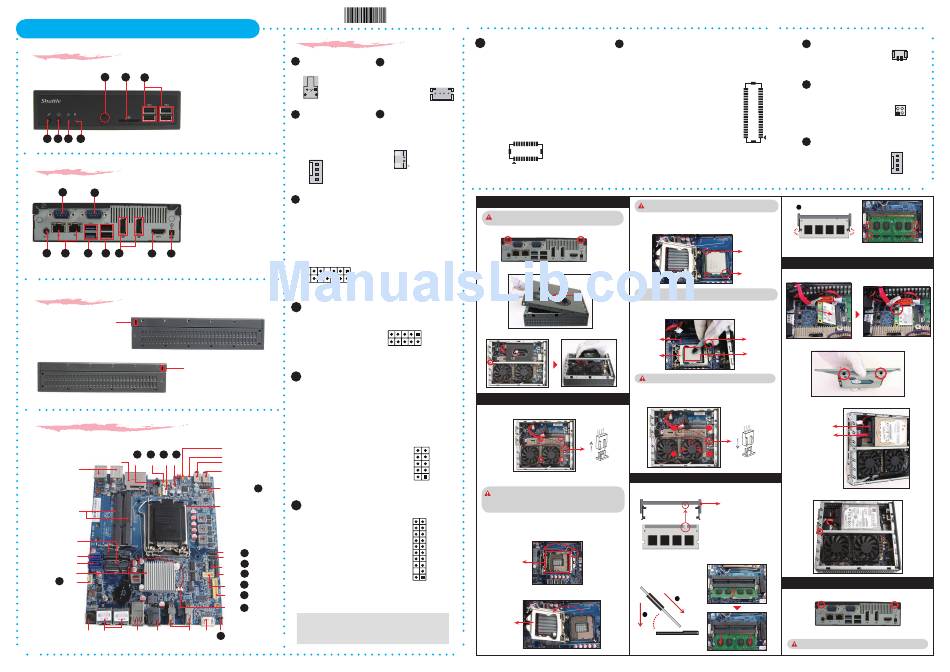

Shuttle DS81 Series Quick Manual

DS81 Series Quick Guide 【 English 】
__p
Front Panel
F1. Mic-In
F2. Headphone
F5 F6 F7
F3. Power LED
F4. HDD LED
F5. Power Button
F6. Card reader
F7. USB2.0 Ports
F1 F2 F3 F4
Back Panel
B1. COM1 Port
(RS232/RS422/RS485)
B2. COM2 Port (RS232 only)
B1
B2
B3. Power Jack (DC-in)
B4. LAN Ports
B5. USB3.0 Ports
B6. USB2.0 Ports
B7. DisplayPort
B8. HDMI Port
B3 B4 B5 B6 B7 B8 B9
B9. Clear CMOS&POWER
BUTTON
Left / Right Panel
Kensington® Lock Port
Kensington® Lock Port
Motherboard Illustration
C1 C2 C3 C4
Card
SW3 USB FAN1 SPK1
Reader Slot
USB 2.0
DDR3 SODIMM
slots
Mini PCIE Slot
Serial ATA Connectors
SATA3
SATA6
Intel H81 Chipset
C13 PW1
DC IN LAN Ports USB3.0 USB2.0 Display HDMI
(x2) Ports (x2) Ports Port Port
62R-DS8100-0601
English.Spanish.Korean.
Traditional Chinese.Japanese.
French. German Quick Guide
Jumper Settings
Power Button (SW3)
USB Connector
C1
C2
Pin Assignments :
1=GND
2=USB10P
3=USB10N
4=USBPW04
SPK1
C3 Fan Connector C4
Pin Assignments (FAN1): Pin Assignments (CN1):
1=GND 1=SPKR_OUT
2=+12V 2=GND
3=SPEED_SENSE
4=PWM_CTRL
1
2
3
4
Audio Connector
C5
Pin Assignments (AUDIO2):
1=PULL AGND 2=LINE-R
3=NC 4=LINE-L
5=PULL AGND 6=FRONT_L
7=NC 8=FRONT_SENSE
9=PULL AGND 10=FRONT_R
11=BK_AUDIO-JD 12=MIC1_R
13=AGND 14=MIC1_L
13 11 9 7 5 3 1
14 12 10 8 6 4 2
COM PORT
C6
Pin Assignments (COM1&COM2):
1=DCD 2=RX
9
3=TX 4=DTR
5=GND 6=DSR
7=RTS 8=CTS
10
9=RI 10=NC
Support RS232 Back panel
C7
Independent External Power 12V / 5V
(DEFAULT=SHORT 1-2,3-4)
IF JUMP1 Connector Pin 5 and Pin 7 = COM1 is +5V
IF JUMP2 Connector Pin 6 and Pin 8 = COM2 is +5V
IF JUMP1 Connector Pin 7 and Pin 9 = COM1 is +12V
IF JUMP2 Connector Pin 8 and Pin 10 = COM2 is +12V
Pin Assignments (JP3):
1=-XRI1 2=COM_-XRI1
3=-XRI2 4=COM_-XRI2
HDD LED
5=+5V 6=+5V
Power LED
7=COM1_PWR 8=COM2_PWR
Headphone
9=+12V 10=+12V
MC In
Audio Connector C5
LPC connector
LGA1150 Package
C8 C8
CPU Socket
Pin Assignments (LPC1):
1=CLK-33M 11=L_AD0
2=GND 12=GND
3=LFRAME 13=LPC_48M
4=NC 14=PCH_PME-
5=SIORST# 15=+3.3VS
COM 2
C6
6=-XRI3 16=SERIRQ
COM 1
7=L_AD3 17=GND
C7
JP3 8=L_AD2 18=+3.3V
LPC C8 9=+3.3V 19=+3.3V
10=L_AD1 20=SUS_CLK
CN25 C9
EDP C10
 Safety Information
CN1 Read the following precautions before setting up a Shuttle XPC.
C11
CAUTION
Incorrectly replacing the battery may damage this computer.
Replace only with the same or equivalent as recommended by Shuttle.
C12 SW2
Dispose of used batteries according to the manufacturer's instructions.
VGA Connector
C9
Pin Assignments (CN25):
1=GND 11=CRT_HSYNC_R
2=GND 12=GND
3=SDVO_CLK_D 13=GND
4=GND 14=GND
1 2 3 4
5=SDVO_DATE_D 15=BOUT-O
6=GND 16=VGA_PWR
7=GND 17=GOUT-O
8=GND 18=VGA_PWR
9=CRT_VSYNC_R 19=ROUT-O
10=GND 20=VGA_PWR
2 20
1 19
A. Begin Installation
For safety reasons, please ensure that the power cord is discon-
nected before opening the case.
1. Unscrew the two screws of the chassis cover.
2. Slide the cover backwards and upwards.
2
1
7 5 3 1
3. Unfasten the rack mount screw and remove the rack.
8 6 4 2
B. CPU and ICE Module Installation
1. Unfasten the four ICE module attachment screws and unplug the fan
connector.
20 19
2 1
2. Remove the ICE module from the chassis and put it aside.
Please note this 1150 pin socket bends easily. Always apply
extreme care and little force when installing a CPU and limit the
number of times you remove or exchange it. Before installation,
make sure to turn off the computer and unplug the power cord
from the mains to avoid damage.
 Follow the steps below to correctly install the CPU into the
20
19
motherboard CPU socket.
3. Tear off the protective membrane first, then unlock and raise the socket
lever.
Remove the
protective
membrane
2 1
4. Lift the metal load plate on the CPU socket.
Metal load plate
L The product's color and specification will depend on the actual shipping product.
EDP Connector V1.0
C10
Pin Assignments:
1=PANEL_VDD 21=NC
2=CAD_56B 22=D3+_56B_C
3=PANEL_VDD 23=GND
4=HPD_56B_C 24=GND
5=PANEL_VDD 25=INV_PWR_SRC
40
6=NC 26=D2-_56B_C
7=PANEL_VDD 27=INV_PWR_SRC
8=NC 28=D2+_56B_C
9=PANEL_VDD 29=INV_PWR_SRC
10=NC 30=GND
11=GND 31=INV_PWR_SRC
12=GND 32=D1-56B_C
13=EDP_BKLTCTL 33=INV_PWR_SRC
14=AUX-_56B_C 34=D1+56B_C
2
15=EDP_BKLTEN 35=GND
16=AUX+_56B_C 36=GND
17=GND 37=NC
18=GND 38=D0-_56B_C
19=NC 39=NC
20=D3-_56B_C 40=D0+_56B_C
DO NOT touch socket contacts. To protect the CPU socket, always
replace the protective socket cover when the CPU is not installed.
5. Orientate the CPU and socket and please align the CPU notches with
the socket alignment keys. Make sure the CPU is perfectly horizontal,
insert it into the socket.
Notch on the CPU/
Alignment Key of the
Socket CPU Socket
1155
CPU
Triangle Pin1
Marking on the CPU
Please be aware of the CPU orientation, DO NOT force the CPU into
the socket to avoid bending of pins on the socket and damage of CPU!
6. Close the metal load plate, lower the CPU socket lever and lock in place.
7. Spread thermal paste evenly on the CPU surface.
Load lever Retention tab
Thermal Paste
Metal load plate
application area
Please do not apply excess amount of thermal paste.
8. Screw the ICE module to the mainboard. Note to press down on the
HDD Rack
opposite diagonal corner while tightening each screw.
9. Connect the fan connector.
1
3
4 2
Fan connector
Fan connector
C. Memory Module Installation
1. Locate the SODIMM slot on the mainboard.
2. Align the notch of the memory module with the one of the memory slot.
SODIMM slot
notch
Cutout
3. Gently insert the module into the slot in a 45-degree angle.
4. Carefully push down the memory
module until it snaps into the
locking mechanism.
1
2
45-degree
angle
Battery connector
C11
Pin Assignments (CN1):
1=V_BAT
1
2=GND
Clear CMOS&POWER BUTTON
C12
39
Pin Assignments (SW2):
1=RTCRST-
2
2=+5V
1
3=GND
4=PWRSW-
1
SATA POWER connector
C13
Pin Assignments (PW1):
4
1=GND
3
2=GND
2
3=+5v
1
4=+5v
3
Latch
Latch
5. Repeat the above steps to install additional memory modules, if required.
D. Component Installation
1. Install the Mini PCIE card into the Mini PCIE slot and secure with
screw.
2. Place the HDD in the rack and secure with the four screws from the side.
3. Connect the Serial ATA and power cables to the HDD.
Serial ATA Power Cable
Serial ATA Cable
4. Slide the rack in the chassis and refasten the screw.
E. Complete
1. Replace the cover and refasten the screws.
2 . Complete.
Please load the optimized BIOS settings.
