TESmart HKS0801A1U Quick Start Manual

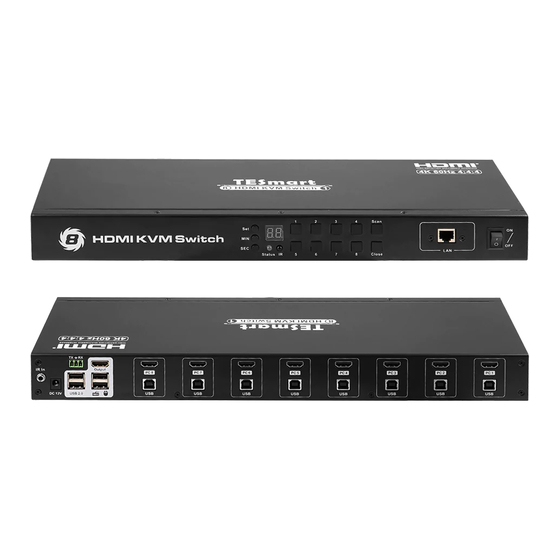

8x1 HDMI KVM Switch
This 8x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform
computer equipment easily. It makes you available to switch easily and reliably between any
HDMI computers using one HDMI compliant display.
The 8x1 HDMI KVM switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using
USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or
other USB devices to the KVM. Switching can be controlled through variable methods, such
as the front panel source selector buttons, RS232 commands, IP commands, IR signals and
hot keys on keyboard.
With EDID emulators in each input port, keep PCs always having correct display information,
prevent display settings from changing while switching input ports.

Features

 Using one USB console controls 8 HDMI computers
 Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for
Raspberry Pi and other Linux based systems
 With EDID emulators in each input port, keep PCs always having correct display
information
 Support hot plug, connect or disconnect devices to the KVM switch at any time without
turning off devices
 Support auto switching to monitor computers in a specified time interval
 Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or
IP commands to control KVM switch
Available to use keyboard without any delay after switching input sources

 Support resolution up to 3840*2160@60H
 With extra standard USB 2.0 hub port, it is possible to connect barcode scanner, USB
hard drive or other USB devices to KVM just as you have plug these devices directly to
computer
 Support DVI-D single link sources and displays with the use of HDMI-to-DVI adapters

Packing list

1 * 8x1 HDMI KVM Switch
1 * DC 12V 2A Power Adapter
1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector (For RS232)
2 * Rack-ears
1 * Quick-Start Guide
1
