Summary of Contents for Safe Fleet Prime Dresign ASH-8034

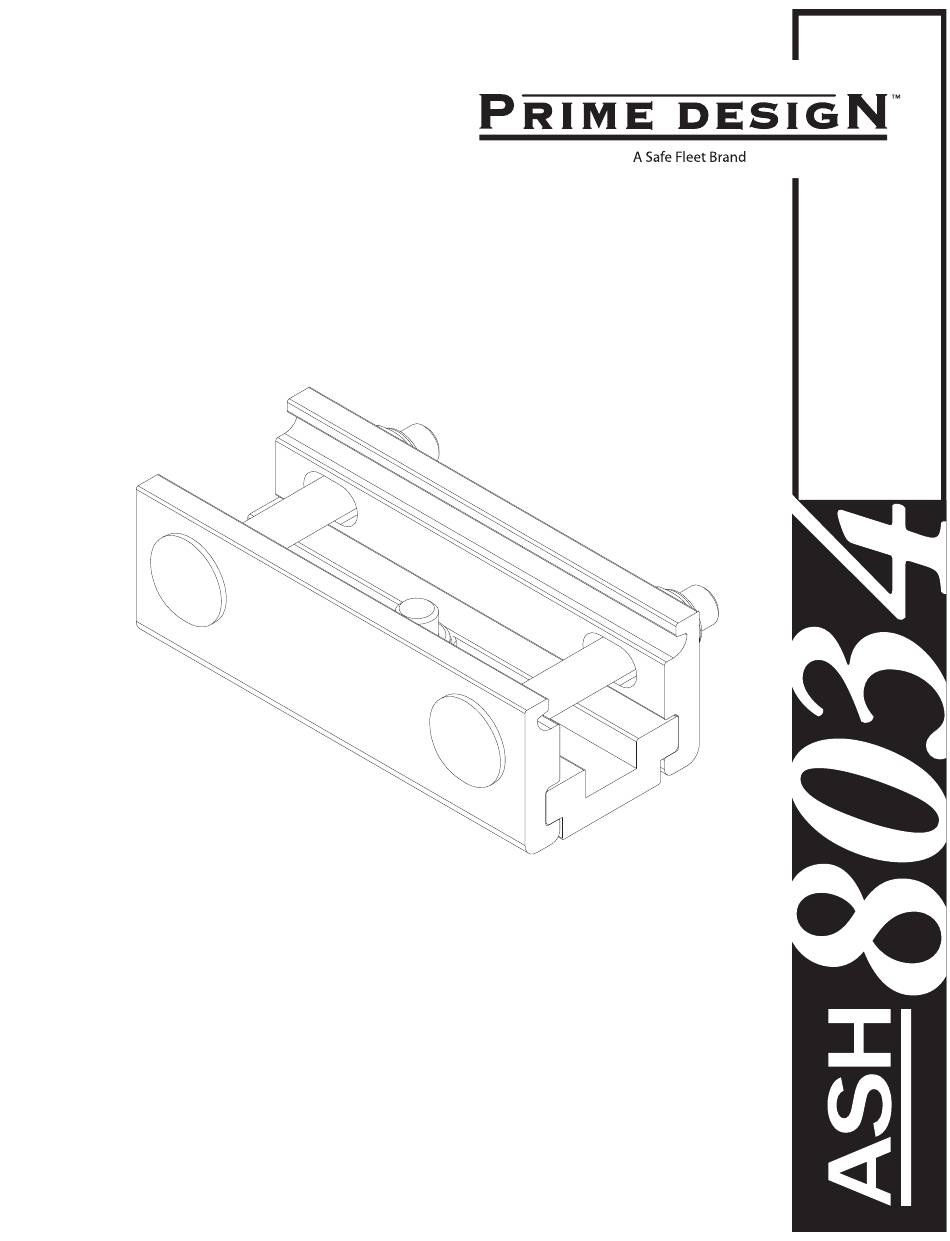

- Page 1 WORKPRO LIGHT MOUNT (BELOW CROSSBAR) PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
- Page 2 CONTENTS OVERVIEW NOTE: The Gen4 PBR Rack and WorkPro LED Light shown in this Manual are for illustrative purposes only, and are not included in this Kit. ASH-8035 WorkPro Light Mount, Below Crossbar Bottom Connector (1X) Clamp Connector Pair (1X) M8 x 60MM (2X) M8 x 25 MM (1X) M8 Lock Nut (3X)
- Page 3 WORKPRO LIGHT MOUNT INSTALLATION SEQUENCE 1–3 NOTE: The Gen4 PBR Rack and WorkPro LED Light shown in this Manual are for illustrative purposes only, and are not included in this Kit. This Light Mount Kit contains only the parts needed to repair, replace, or retrofit one Light Mount.
- Page 4 MOUNTING LIGHT TO CROSSBAR ADJUSTMENTS Install the WorkPro Light with the attached Adjust to desired positioning. Bottom Connector to the Crossbar and Clamp Connectors using the hardware shown. NOTE: If installing more that one WorkPro Light and Mount, repeat Steps 1-2 and Finger-tighten only until step 3.
