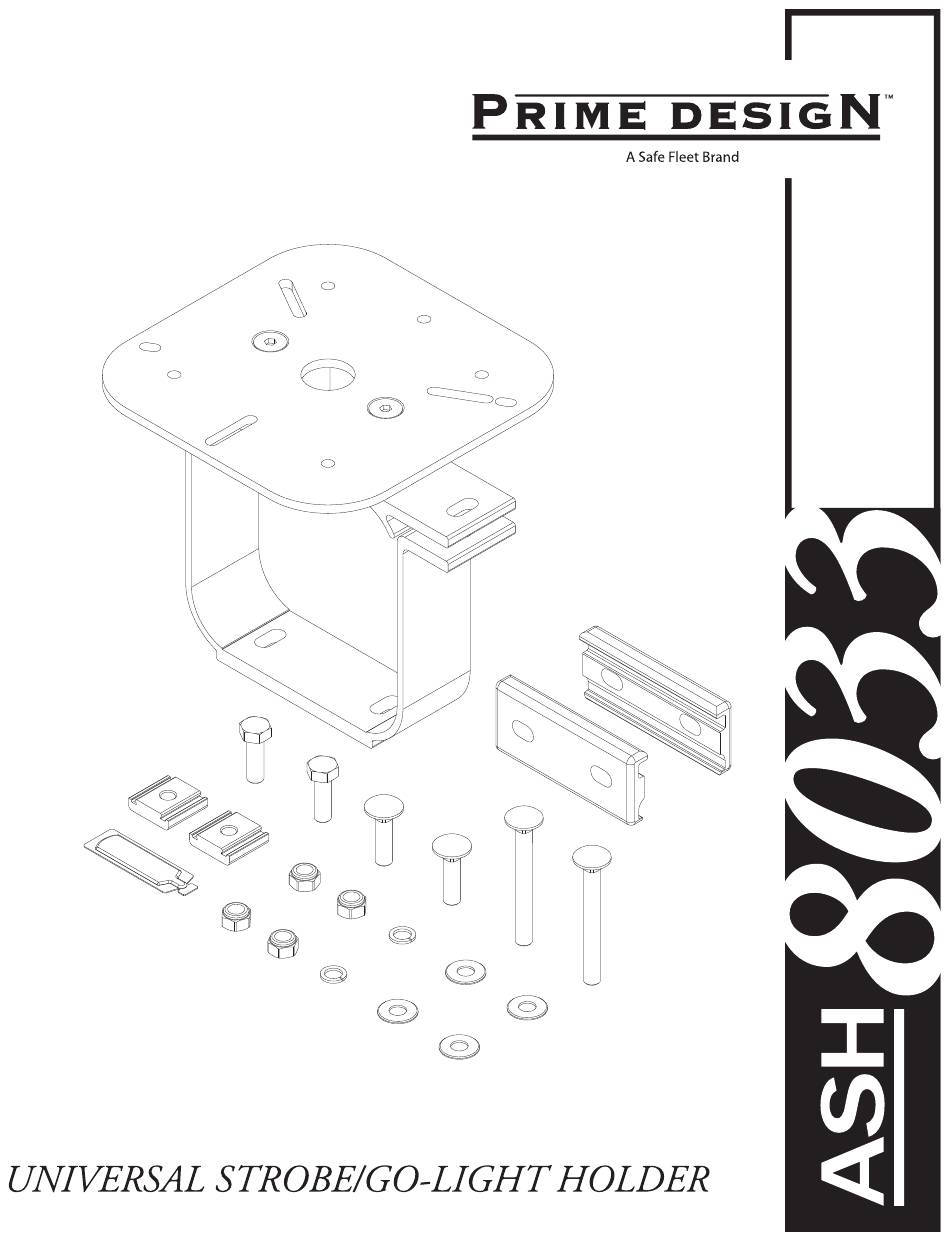

- Page 1 PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW Note: Rack model and Conduit Carriers are shown in this Manual for illustrative purposes only, and are not included with this Light Holder assembly. ASH-8033 Strobe/Go-Light Holder, Universal Nut Bracket (2X) Z Post Clamp (1X) GoLight Mount (1X) Mounting Clamp (1X) M8 Lock Nut (4X) "... - Page 3 GEN2/4 LIGHT HOLDER INSTALLATION SEQUENCE NOTE: Ladder Rack is shown for illustrative purposes only, and is not included with this Accessory Light Holder Kit. Not all Gen2/4 racks will have enough space between This Light Holder Kit contains only the parts Rotation/Rotation Uppers to fit a Light Holder.
- Page 4 If mounted to a Rotation/Rotation rack, center the Accessory Attach the GoLight Holder to the Mounting Clamp Light Holder evenly between the Uppers as seen in Figure 1. using the hardware shown and torque to 90 in-lbs. If using on a rack equipped with only one rotation, mount a minimum distance of 1.00”...
- Page 5 LIGHT HOLDER INSTALLATION Assemble the Light Holder Mount onto the Crossbar using the hardware shown below. Torque nuts to 90 in-lbs. Place the Nut Brackets into the Crossbar as shown. M8 x 25MM Center the Accessory Light Holder evenly between the Uppers Attach the GoLight Holder to the Mounting Clamp as seen below.
- Page 6 LIGHT HOLDER INSTALLATION SEQUENCE NOTE: Not all Gen1 Crossbars are factory drilled to NOTE: Ladder Rack is shown for illustrative receive accessories. If not drilled, perform Steps 3.1 to purposes only, and is not included with this 3.3. If factory drilled, proceed to Step 4.1. Accessory Light Holder Kit.
- Page 7 LIGHT HOLDER INSTALLATION Attach the GoLight Holder to the Mounting Clamp using the hardware shown and torque to 90 in-lbs. Assemble the Light Holder Mount onto the Crossbar using the hardware shown below. Torque nuts to 90 in-lbs. M8 x 70MM M8 x 30MM Prime Design Limited Warranty.
-
Page 8: Installation Sequence
CONDUIT LIGHT HOLDER INSTALLATION SEQUENCE NOTE: Conduit is shown for illustrative purposes only, and is not included with this Accessory Light Holder Kit. This Light Holder Kit contains only the parts needed to retrofit one side. Order an additional kit for the other side to add an additional accessory light.
