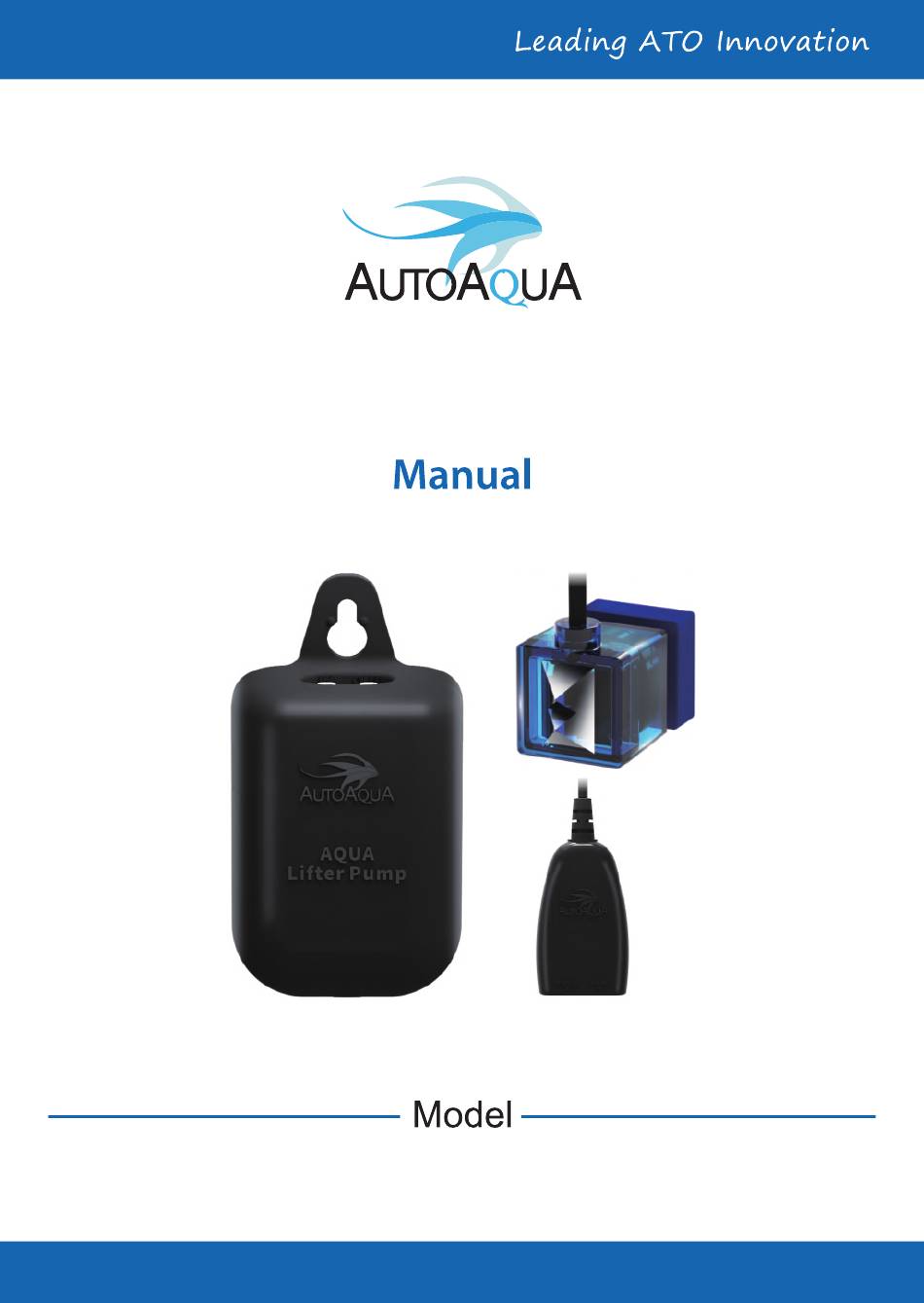

- Page 1 Smart ATO Lifter SATO-272D...
- Page 2 List of Parts (Can Be Purchased Separately) Item Picture Description 1. Auto Top Off with Square Dual Sensor Smart ATO Lifter Controller x1 2. Mounting Thickness : 1/2 inch (12.7 mm) Replaceable Diaphragm AQUA Lifter Pump Pump with Built-In Anti-Siphon Valve Input : 100-240 VAC 50-60 Hz Universal Power Adapter x1...
- Page 3 AQUA Lifter Pump & Square Dual Sensor Cleanable Pre lter Open Caution:RiskofInjury fromStrongMagnets Close Water Inlet Water Outlet Mounting Hole Failsafe Sensor ATO Level Sensor Specifications 1. Power Input : 100-240 VAC 50-60 Hz 2. Diaphragm Pump Suction Head : 6.5 feet (200 cm) Flow Rate : 3.2 gph (12 lph) Built-In Anti-Siphon Pressure : 1 feet (30 cm) max.
- Page 4 Installation 1. Mount the square dual sensor on the tank/sump with the magnet, and adjust the lower sensor to the desired water level.* 2. Fix the AQUA Lifter Pump Holder on the tank/sump and mount the AQUA Lifter Pump. 3. Plug the pre lter into the tubes and keep it higher than the max. level of the reservoir.
- Page 5 LED Indicator LED Color Status Description Action N.A. Solid Power on N.A. Flashing Filling / Pumping Blue Flashing The failsafe sensor detects water N.A. quickly for a short time** level changes. Flashing with QST alarm : 1. Clean the sensor or move it to an audible alerts 1.
- Page 6 3. Please open and clean the Pre lter every 3 to 6 months for best lter performance. 4. Please visit AUTOAQUA's website to know how to replace the pump. Limited Warranty 1. Limited warranty is provided by AUTOAQUA only if your AUTOAQUA Product ("Product") was purchased from an...
