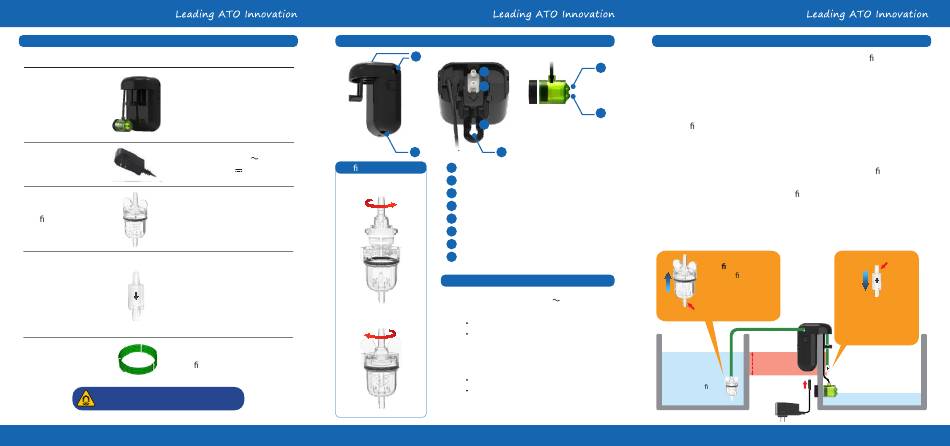

AutoAqua Smart ATO nano Manual

List of Parts (Can Be Purchased Separately)
Item Picture
1. Integrated with one dual
sensor and one replaceable
Smart ATO nano
diaphragm pump
Controller
2. Mounting Thickness :
0.12-0.39 inch (3-10 mm)
Input : 100-240 V
Universal Power
Adapter
Output : 12V
A cleanable connector
Pre lter to remove particles in
the reservoir
1. A valve to stop the forward
siphon pressure up to 2 feet
(60 cm) of water.
Anti-Siphon Valve
2. Adding one more valve
(optional) can stop a higher
forward siphon pressure.
Tubing 6.5 feet Used with Diaphragm Pump,
(200 cm) Pre lter and Anti-Siphon Valve.
Caution
:
Risk
of
Injury
from
Strong
Magnets
1
Smart ATO nano Controller
Description
50-60 Hz
Pre lter
1A
Open
Close
1
3
4
5
2 6
1 Holes for Fixing Water Inlet Tube
2 Power Jack
3
Water Inlet
4 Water Outlet
5 Holder
6 Hole for Fixing Water Outlet Tube
7
Failsafe Sensor
8
ATO Level Sensor
Specifications
1. Power Input : 100-240 V 50-60 Hz
2. Diaphragm Pump
Suction Head : 6.5 feet (200 cm)
Flow Rate : 7.9 gph (30 lph)
3. Tubing I.D. : 5/32 inch (4 mm)
O.D. : 1/4 inch (6.4 mm)
4. Mounting Thickness
Sensor : Max.1/2 inch (12.7 mm)
Holder : 0.12-0.39 inch (3-10 mm)
5. Anti-Siphon Pressure : 2 feet (60 cm) of
water
2
Installation
1. Take off the cover of Smart ATO nano controller and x it on
7
tank/sump with the holder.
2. Mount the sensor with the magnet at the normal water level (with
the water level reaching the lower one) . If the cable is too long,
push it back into the main body.
8
3. Cut the tube to a proper length. Connect the water inlet tube with
the Pre lter and put it in the water.
4. Connect water outlet tube and insert it into the holder.
5. Connect the white part of the Anti-Siphon Valve to the end of the
tube and keep it out of water.
6. Put the cover back on Smart ATO nano controller and x the tube
with the hole on the side of the cover.
7. Connect power and do one-time lling to check there is no water
dripping (forward siphon) after the pump stops.
8. Unplug and plug the power adapter back in for reset.
*Please set the sensor away from the water outlet to avoid bubble
interference.
Pre lter :
The Pre lter must
be installed before
the inlet of the
diaphragm pump.
Water Inlet
Anti-Siphon
Pressure
Pre lter
Reservoir
*
Water Inlet
Anti-Siphon Valve :
The white part is
water inlet. Keep it
always out of water.
Anti-Siphon Valve
Optical Level Sensor
Tank/Sump
3
