Toshiba TLP470EF Service Manual page 14

3-15. CAM SW PC Board
(Only for TLP451/651)
1. Remove one screw (1) and remove the cover (2).
2. Remove four connectors (4) connected to the CAM
SW PC board (3).
3. Remove two screws (5) and remove the CAM SW PC
board (3).
CAM SW
PC board (3)
Connector (4)
Connectors (4)
Screws (5)
Cover (2)

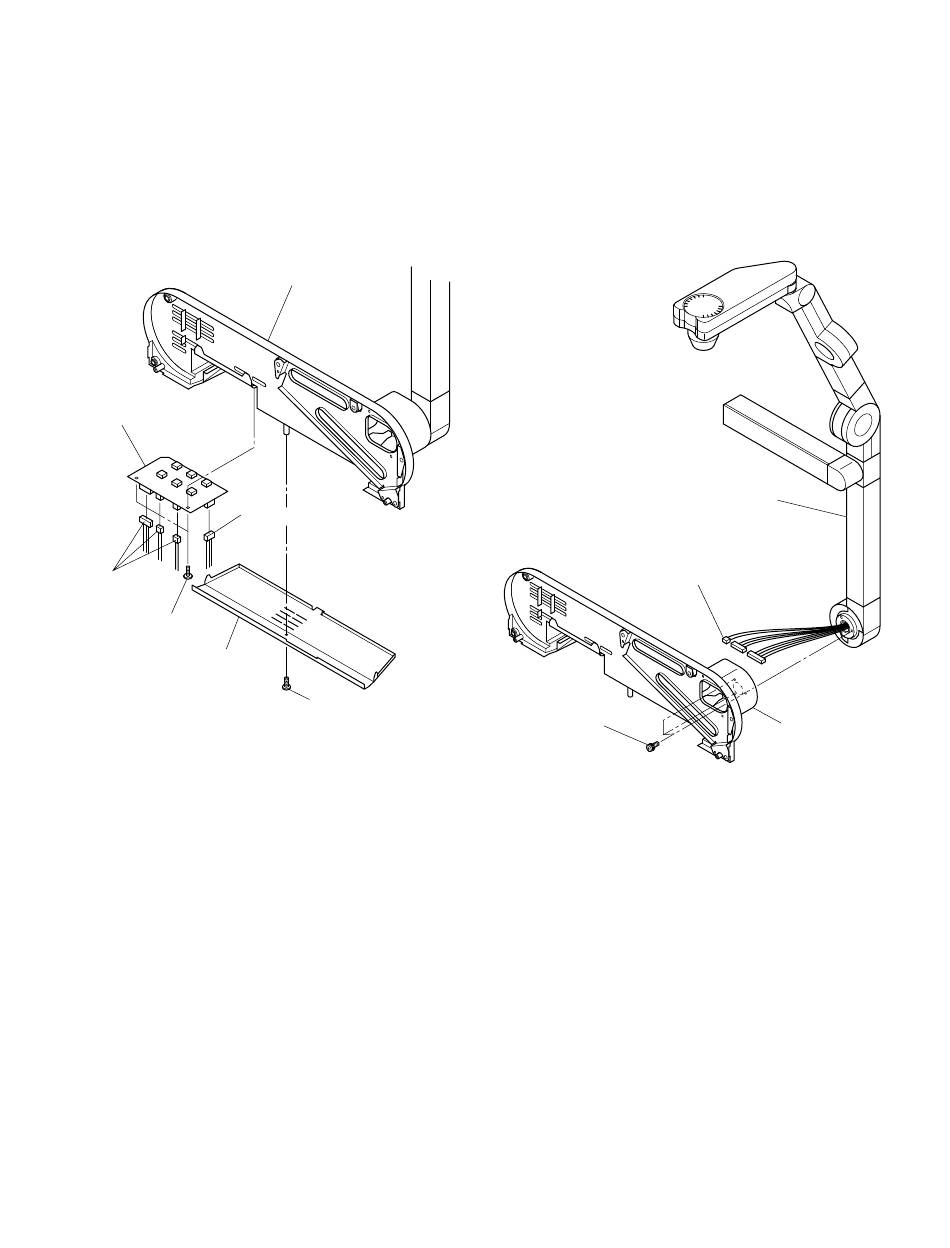

Fig. 1-3-20
Base cover
Screw (1)
3-16. Arm Assembly
(Only for TLP451/651)
1. Remove three screws (1) and remove the arm assem-
bly (2).
2. Pull out three connectors (3) connected from the arm
assembly (2) from the base cover (4).
Screws (1)
1-9
Arm assembly (2)
Connectors (3)
Base cover (4)
Fig. 1-3-21
