3-11. Input PC Board
1. Remove five screws (1).
2. Remove the input PC board (2) by turning the arrow
direction.

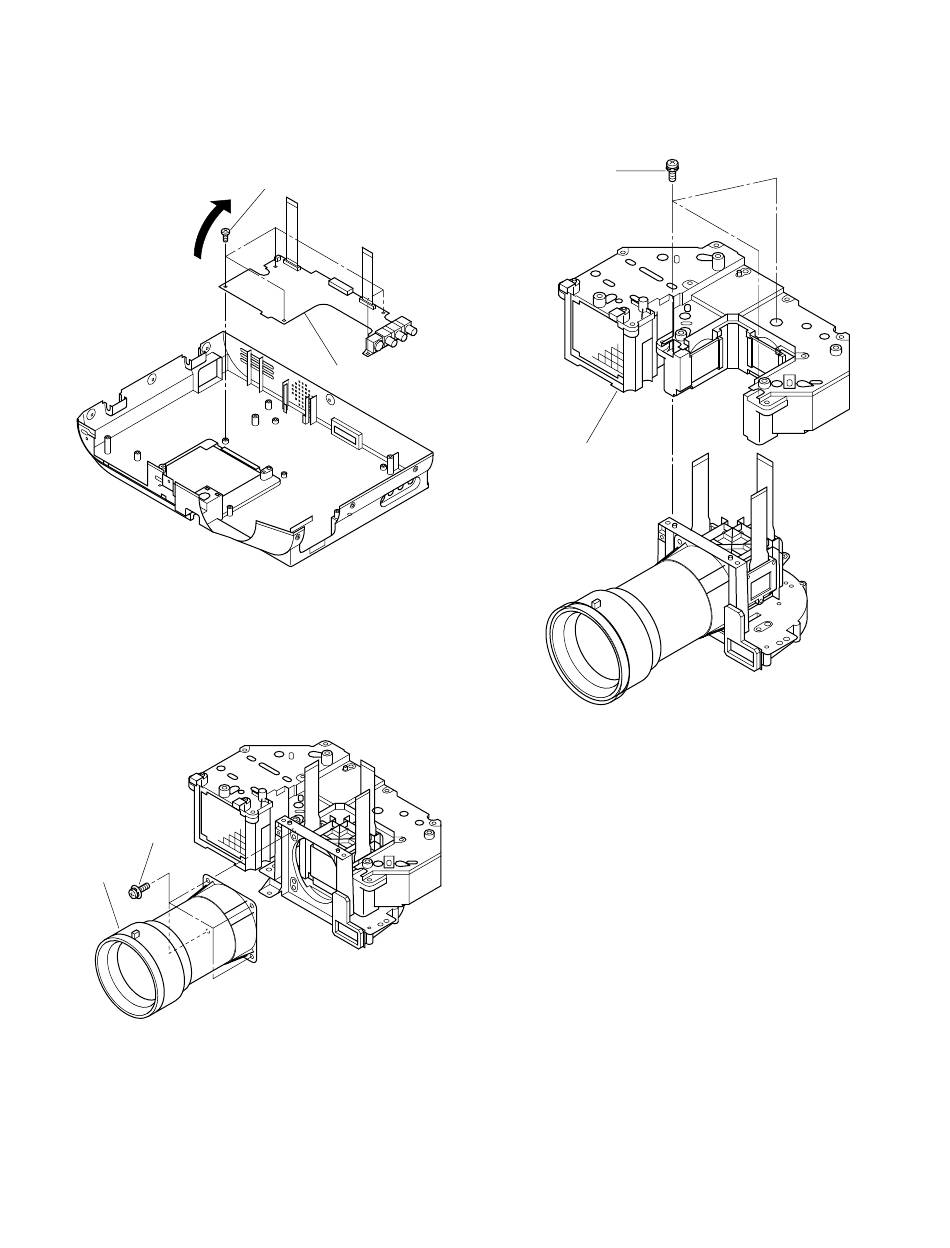

Fig. 1-3-11
3-12. Lens
1. Remove four screws (1) and then remove the lens (2).
Screws (1)
Lens (2)
Fig. 1-3-12
Screws (1)
Input PC board (2)
3-13. Mirror Box
1. Remove three screws (1) and then remove the mirror
box (2).
Screws (1)
Mirror box (2)
