THORLABS PDA015C Quick Start Manual

PDA015C(/M) InGaAs Amplified Detector
Safety & Quick Start Guide
Note: The information contained in this document is for safety purposes. Thorlabs' green efforts
are aimed at reducing waste and preserving our planet's natural resources. To that end, we have
created a webpage so that you can digitally read, download, and save a copy of the full product
manual and/or other documentation for any item on our website: www.thorlabs.com/manuals

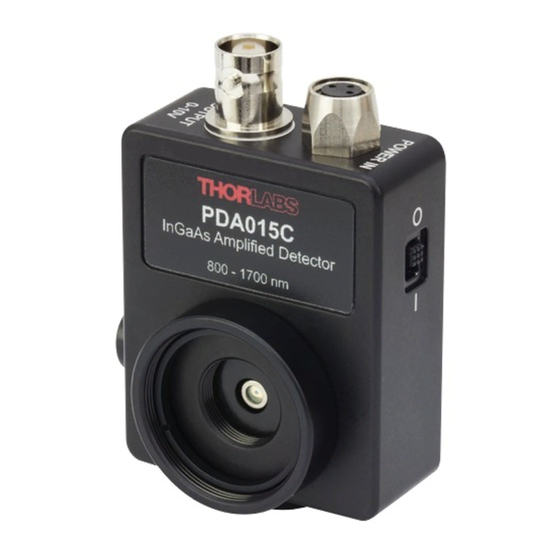

Description: The PDA015C(/M) is a fixed gain, 380 MHz BW, InGaAs detector designed for detection of
optical signals in the 800 to 1700 nm wavelength range. It has a frequency response from DC-380 MHz, an
impulse response of 1 ns, and a transimpedance gain of 50 kV/A. Each PDA015A has a power supply connector
designed to work with the LDS1212 linear power supply (±12 VDC, 200 mA) that is included with each unit.
The PDA015C also includes a removable SM1T1 SM1 Adapter with internal threads and SM1RR retaining ring.

Safety Information

General: All statements regarding safe operation and technical data in the instruction manual will only apply
when the unit is operated correctly. A copy of the full product manual can be accessed online at the
following website: www.thorlabs.com/manuals
Before Applying Power: Each PDA015C is supplied with an external ±12 V power supply. Before connecting
the power supply to the mains make sure that the RED Line Voltage Switch on the Power Supply Module is set
to the proper voltage range so that it agrees with your local mains supply voltage. The PDA015C should
always be powered up using the power switch on the power supply or the PDA015C itself. Hot plugging the
unit is not recommended.
Covers and Service: Do not remove the cover of the PDA015C. There are no user serviceable parts in this
product. Refer servicing to qualified personnel. Do not cover the device in order to prevent overheating of
the instrument.
Explosive Environments: Do NOT operate this device in explosive environments.
Please read the Operational Precautions on the other side of this sheet
January 26, 2017
TTN122711‐D04, Rev A
