USER MANUAL
HN-SB500
5MP AHD/TVI, 4MP CVI, 960H
Hybrid Waterproof Camera
Customer Service:
s e r v i c e @ h o n i c t e c h . c o m
Tech Support:
s u p p o r t @ h o n i c t e c h . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HN-SB500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Honic HN-SB500

  • Page 1 USER MANUAL HN-SB500 5MP AHD/TVI, 4MP CVI, 960H Hybrid Waterproof Camera Customer Service: s e r v i c e @ h o n i c t e c h . c o m Tech Support: s u p p o r t @ h o n i c t e c h . c o m...
  • Page 2: Important Notes

    Important Notes If there is ANY QUESTION of the camera, please contact us, EACH camera has been tested before shipping. Power supply, coaxial video cable and DVR are NOT INCLUDED but REQUIRED. Default mode: 960H (CVBS) video format. Firstly confirm what resolution and frame rate your support, for example, if your DVR support max 5MP TVI 12.5fps, then press OSD joystick, the...
  • Page 3: Product Description

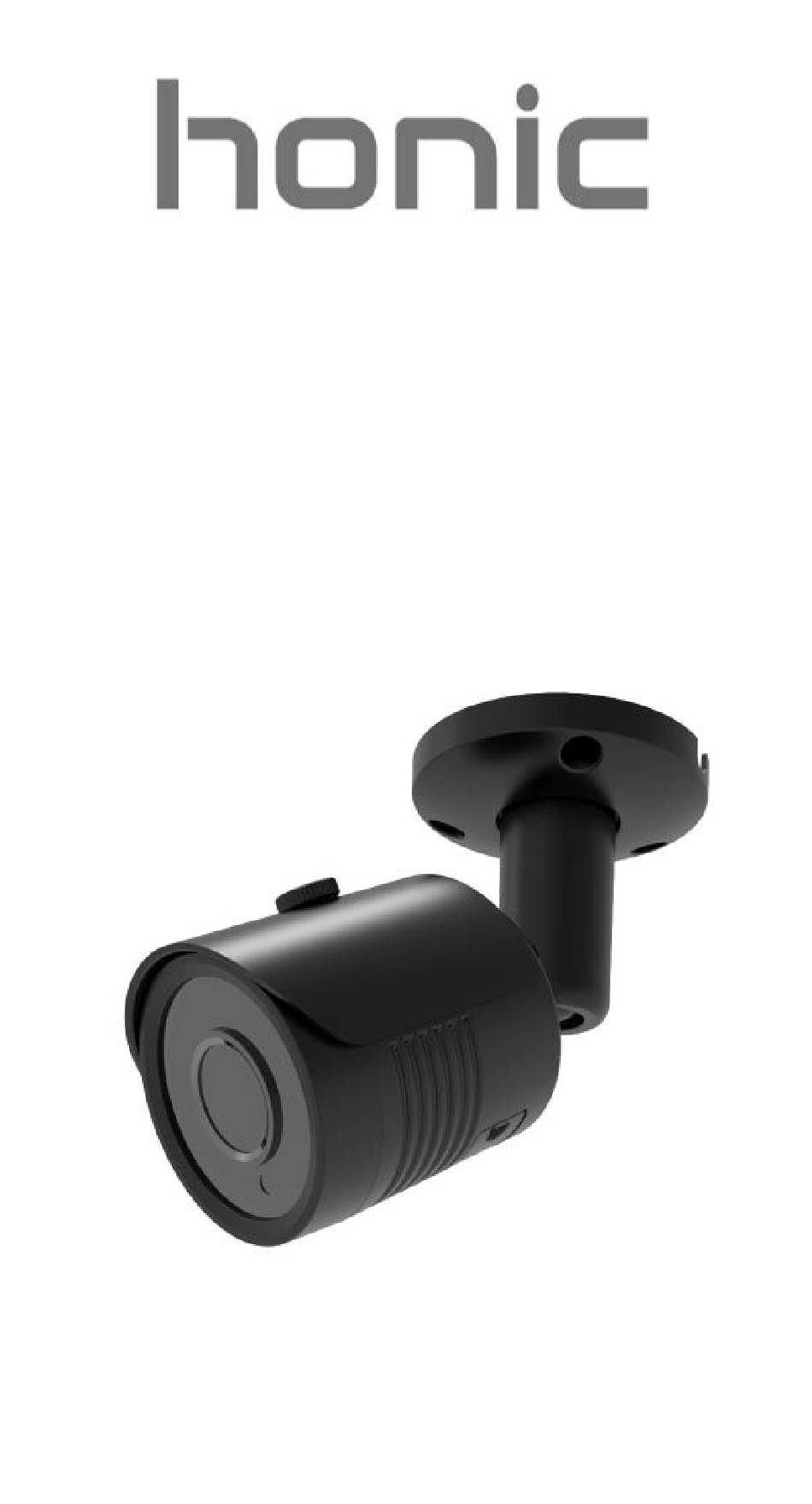

    Please read this user manual carefully to ensure proper use of the product. Product Description The HN-SB500 is a high-definition camera designed around a 1/2.5" Color 5 megapixel CMOS image sensor, 14µ x 20pcs IR LEDs providing infrared capability up to 65 feet, and a 2.8mm lens with wide angle field of view...
  • Page 4: Video Setting

    to go to the sub menu of Press OSD joystick again VIDEO SETTING. the video mode your DVR support. Switch to the resolution and frame rate your DVR Choose support. APPLY&REBOOT. Then NOTE: If you accidentally choose the wrong video mode or frame rates, there may be no signal shows on monitor, please power off and power on the camera again, hold OSD joystick left for 5 seconds, then the camera will be...
  • Page 5 1x drill template 1x Allen wrench Mechanical Inspection Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose. If equipment appears to be damaged or defective please contact us for assistance.
  • Page 6 temperature must match requirement of this equipment. (vii) Only qualified installers are allowed to install, test and disassemble the camera. (viii) Any change to the camera's lens will affect image quality. (ix) The camera is a low voltage product. If installed outdoors, proper safety and lightening grounding are required.
  • Page 8 Setup OSD Menu Press the OSD joystick to start the OSD menu in any video output mode, OSD menu will show on display as following: MAIN MENU DAY NIGHT IMAGE ENHANCE VIDEO SETTING LANGUAGE VERSION RESET SAVE-EXIT EXIT OSD Functions and Options MAIN MENU BRIGHTNESS GLOBE...
  • Page 9 RETURN CONTRAS AUTO/MANUAL SHARPNE AUTO/MANUAL IMAGE SATURATE AUTO/MANUAL ENHAN 3DNR AUTO/MANUAL 2DNR AUTO/MANUAL RETURN AHD/CVI/TVI/CVBS HD: TVI 8MP 15fps; 8MP 12.5fps; 5MP 20fps; 5MP 12.5fps; 4MP 30fps; 4MP 25fps; 1080P 30fps; 1080P 25fps. HD: AHD 8MP 15fps; 8MP 12.5fps; VIDEO STANDAR 5MP 20fps;...
  • Page 10 RETURN ENGLISH, CHINESE, KOREAN, RUSSIAN, LANGU CAMEAR FIRMWARE VERSION VERSIO RESET SAVE-EXIT EXIT (Back Light Compensation): In images where a bright light source is behind the subject of interest, the subject would normally appear in silhouette. BLC allows the camera to adjust the exposure of the entire image to properly expose the subject in the foreground.
  • Page 11 and bright, making shadows darker and highlights brighter. Decrease contrast and you bring the shadows up and the highlights down to make them closer to one another. Sharpness can be defined as edge contrast, Sharpness: that is, the contrast along edges in a photo. When we increase sharpness, we increase the contrast only along/near edges in the photo while leaving smooth areas of the image alone.
  • Page 12: Specifications

    2. OSD menu—video setting—increase DNR value Side effect: Lower gain value make the image a little darker. High DNR may cause motion blur. Specifications Model No. HN-SB500 Video Output Mode AHD/CVI/TVI/CVBS Camera Image Sensor 1/2.5" CMOS Image Sensor Image Resolution...
  • Page 13: Troubleshooting

    Camera Features Day/Night OSD Menu Language YES White Balance AUTO / MANUAL Gain Control AUTO Noise Reduction Picture Adjustment OSD Support (HD Mode Only) General Housing Metal, IP66 Bracket IR Cut Filter Operation Temperature14F ~ 122F RH95% Max Storage Temperature -4F ~ 140F RH95% Max Power Source DC12V±10%, 700mA Dimension...
  • Page 14 Please move the eyeball direction to avoid strong IR reflection. b. No picture or only black and white picture after applying power (iii) Check all plugs and cables are securely connected to the proper connectors. (iv) Ensure your power supply is providing the correct voltage and current.
  • Page 15 FAQ: Q: What else do I need to make it work? 1. DVR (support 2MP to 8MP) 2. 12V DV power supply. 3. Coaxial video cable with BNC connector. Q: Will the OSD switch stay in same mode if camera is powered off, or do you have to reset mode each time you power it back up? A: It will stay in the same output mode, do not need to...
  • Page 16: Warranty And Customer Service

    60 days of purchase to receive a FULL REFUND for any reason. 24-Month Warranty for Quality-Related Issues Honic warrants this product against defects in workmanship and material for a period of 2 years from its original purchase date.
