Honic HN-4KA Quick Start Manual

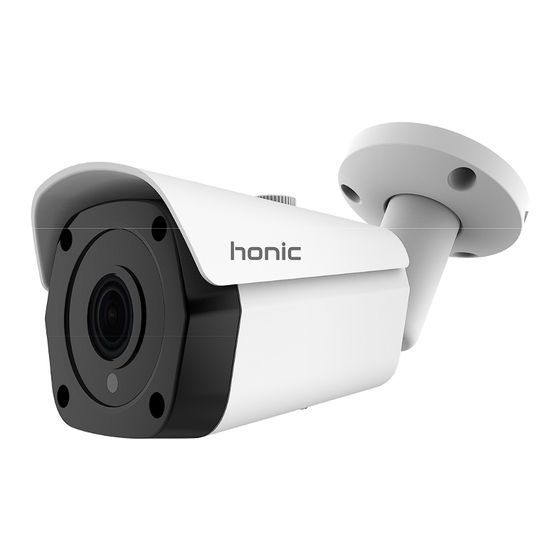

Ultrahd 4k 8mp weatherproof outdoor poe ip camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide
HN-4KA
UltraHD 4K 8MP Weatherproof
Outdoor POE IP Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HN-4KA and is the answer not in the manual?

Questions and answers

Related Manuals for Honic HN-4KA

Summary of Contents for Honic HN-4KA

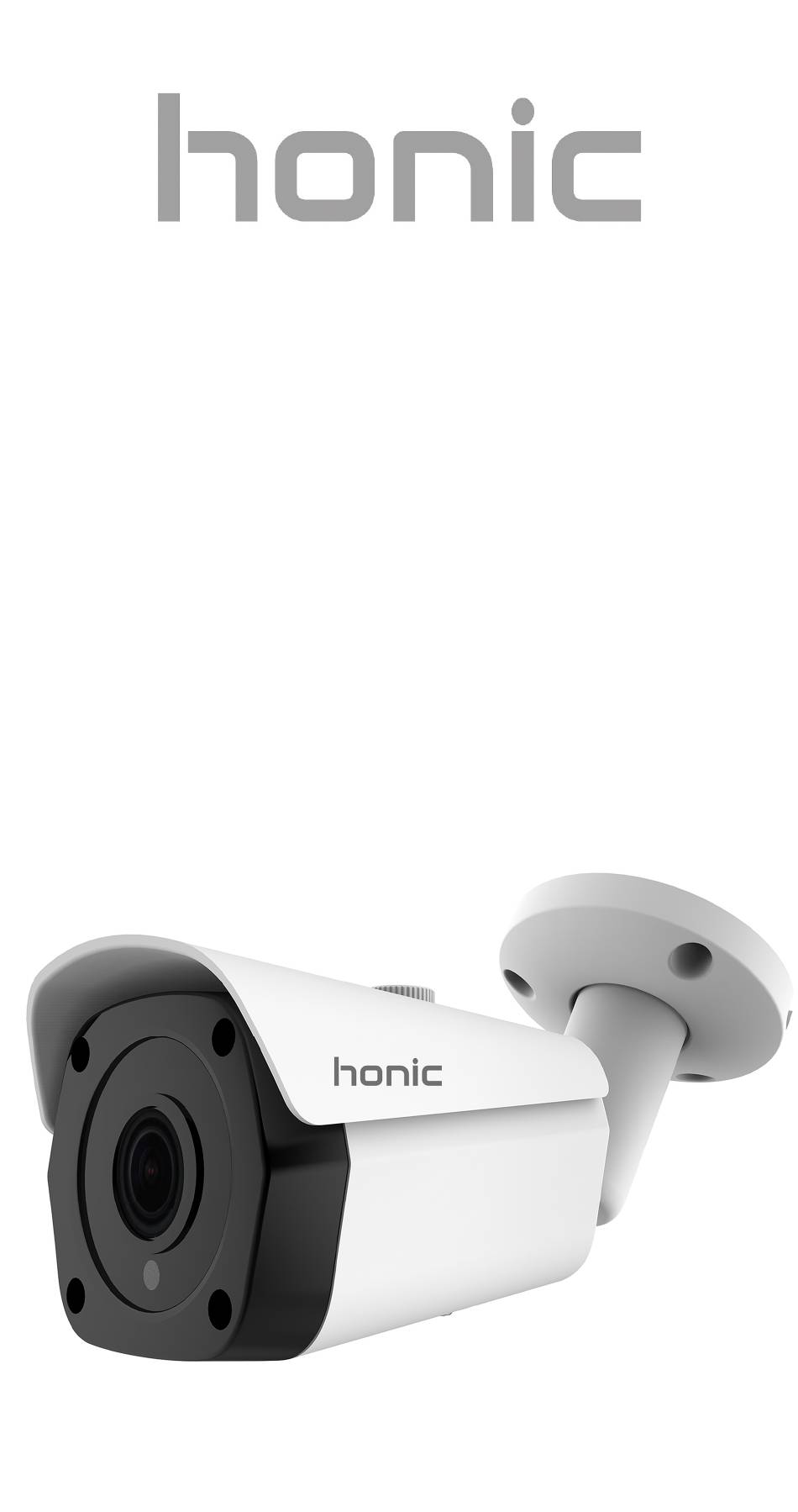

  • Page 1 Quick Start Guide HN-4KA UltraHD 4K 8MP Weatherproof Outdoor POE IP Camera...

  • Page 2: Quick Reference

    Contents Item Quantity Bullet IP Camera Quick Start Guide Screws Pack Drill Template Waterproof Components for RJ45 Quick Reference  Default Static IP: 192.168.1.168  HTTP Port: 80  RTSP Port: 554 Main Stream: rtsp://ip address:port/0 Sub Stream: rtsp://ip address:port/1 Tri Stream: rtsp://ip address:port/2 ...
  • Page 3  Default Passwords: Username: admin Password: admin  Device ID: Please check the label on the camera (package), or (Configuration-Network-Advanced Setup- p2p)  DHCP disabled in default, to enable DHCP, please check “Quick Configuration Tool” chapter bellow  PoE Standards: IEEE 802.3af ...
  • Page 4 Dimensions and Appearance (mm) Description DC 12V Power Network (PoE)  It is recommended to connect the camera to the PoE Router or an external PoE switch. If using a DC power adapter with the camera, a REGULATED power supply is REQUIRED.

  • Page 5: Insert Microsd Card

    Insert MicroSD Card This camera has microSD card slot to record video data if with microSD card inserted. When inserting / replacing the SD card, make sure that power is off and that recording has been deactivated (Deactivated in default) in the browser (Configuration > System >...

  • Page 6: To Install The Camera

    Insert the microSD card and gently press it until you hear click sound. Make sure that the SD card is fully inserted. To Install the Camera General Guidelines Try to place the camera in a position that a potential security threat will find it difficult to avoid detection.

  • Page 7: Installation Diagram

    place the camera in bright light and have it facing shade or darkness. Bright light sources to the sides of, or behind the subject will interfere with your images. The camera’s night vision will give well-exposed images if the area is dark. However, if there’s a bright point source in the camera’s view (a streetlight, car headlights or similar) then it might not engage night vision mode.
  • Page 8 Fix the bracket to the wall with screws Loose the regulation screw to adjust the camera angle (A for vertical angle, B for axial angle).
  • Page 9 Tighten the screw with hex wrench to complete the installation.  If you install the camera outside of your home, we highly recommend using waterproof tape to wrap all the trail cables connection areas. Use as much as is necessary for the layer of tape to protect the connections.

  • Page 10: Connecting The Camera

    Connecting the Camera Connect the Ethernet cable to the camera.  A 12V DC power adapter (NOT included) is only required if connecting the camera’s Ethernet cable to a router or switch that does not support PoE. 2. Connect the other end of the Ethernet cable to the NVR’s PoE ports.
  • Page 11 Set Diagram Cable Extension Options Extend the Ethernet cable run for your camera up to 300ft. See table below. It is recommended to use UL CMR approved cables. Cable Type Max Cable Run Max # of Distance Extensions Cat5e or higher 300ft / 92m Ethernet cable You can use a RJ45 Coupler (not included) or switch...

  • Page 12: Quick Configuration Tool

    Quick Configuration Tool Install IP Search Tool Windows: Download Search Tool from www.herospeed.net--Tools--Search Tool (Windows) and install it. Mac: Download Search Tool from www.herospeed.net-- Tools--Search Tool (Mac). Start IP Search Tool Refresh Change “All” to “IPC” Select the IPC...
  • Page 13 Change parameters or Enable DHCP (optional) Input password (admin in default) Modify  For the best security, Honic recommends you use a static IP setting and standard port forwarding.  Assign an IP address to the IP Camera by using the first 3 sets of numbers of your default gateway.
  • Page 14 For detailed user manual of Search Tool, please download it from www.herospeed.net--Manual--Search Tool User Manual for Win & Mac. Access the Camera by Browser Windows: IE 8-11 Mac: Safari Start your browser, input the IP address of your camera (default IP is 192.168.1.168) in the address bar and then press Enter to open the login page.
  • Page 15 and password and then login. (default IP: 192.168.1.1, default username: admin, password: admin)  Strongly suggest you to modify the user name and password to improve security level. If there is problem to install Active X plugin in IE browser, Please check the following:...
  • Page 16 browser—Tool—Internet Option—Security— Customized Level—ActiveX controls and plug-ins, Enable all the options bellow—OK Chrome (lower than version 44) Firefox (lower than version 53) Please go to ip address of your camera, default ip is 192.168.1.168 and then click “Help” on top left, then follow the instructions for plug-in installation.

  • Page 17: Mobile Connection

    Please install IE Tab Plugin and follow instructions as IE browser. Mobile Connection Install Android/iOS App Search “Bitvision” in App store or Google Play. Or scan the following QR code to download. Android App iOS App Add Device Launch Bitvision app (Please register an account if you are a new user), Log in the account.
  • Page 18 Configuration—Network—Advanced Setup— P2P). You could also input serial number (Device ID) manually, Device ID was printed on the device sticker. Input the device name, username, password, captcha (Captcha number was printed on the device sticker) and select group, then submit. Go back to Real time interface.
  • Page 19 Click “+” and choose the device, Click “Done” at the top right. Click calendar icon at the top right, choose date, click “ok”, then go back to Playback, drag the timeline to check the playback video. Configuration in Bitvision Go to Device Manage, find the camera. Click the camera (iOS);...
  • Page 20 Lite User Manual for Windows or Mac. Add Honic Camera to Blue Iris Launch Blue Iris and click + button at top/right of the software window or right click and select Add new camera to add the camera to Blue Iris.
  • Page 21 “Discovery/ONVIF port” to 8999 then click OK to add.  Input new User and Password if you have change the default username and password. Add Honic Camera to iSpy Launch iSpy, and click “Add”>> “IP Camera”. Choose FFMPEG (H264), input URL: rtsp://username:password@ipaddress:rtsp port/0 (or 1,2) E.G.: rtsp://admin:admin@192.168.1.168:554/1...

  • Page 22: Specifications

    Specifications Camera Image Sensor 1/1.8" Progressive Scan CMOS Sensor Resolution 4K 8MP Effective Pixels 3840(H)*2160(V) H.264/H.264+/H.265/H.265+ Compression /JPEG/AVI /MJPEG TV System PAL/NTSC Electronic Shutter Time PAL & NTSC 1/25-1/10000Sec S/N Ratio ≥52dB Video Output Network Lens Focus Length Focus Control Fixed Night Vision Infrared LED...
  • Page 23 Infrared Distance 40M (Best performance in 6-10 meters) IR Status Auto Control IR Power On Auto Control Network Ethernet RJ-45 (10/100Base-T) TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP, Protocol DNS. DDNS, RTP,RTSP,RTCP,NTP,SMTP ONVIF Support ONVIF 2.4 YES, Support QR Code Support IEEE 802.3af Video Delay 0.3S (Within the Lan) Main Stream 3840*2160@20fps etc.

  • Page 24: Support And Warranty

    Support Support D-WDR Support Motion Detection Support Privacy Masking 3 Rectangular Zone Recording Mode NVR/NAS/CMS/Web SD Card Slot Yes, Support Max 128GB General Housing Metal , IP66 IR Cut Filter Operation Temperature -20℃ ~ +60℃ RH95% Max Storage Temperature -20℃ ~ +60℃ RH95% Max Power Source DC12V±10%, 1000mA Dimension...
