- Page 1 USER MANUAL HN-IG60200FS 1080P AHD/CVI/TVI/1200TVL 2.8-12mm Manual Zoom Lens Camera For any problem, please contact us before returning: service@honictech.com (reply within 8 hour)
-
Page 2: Product Description

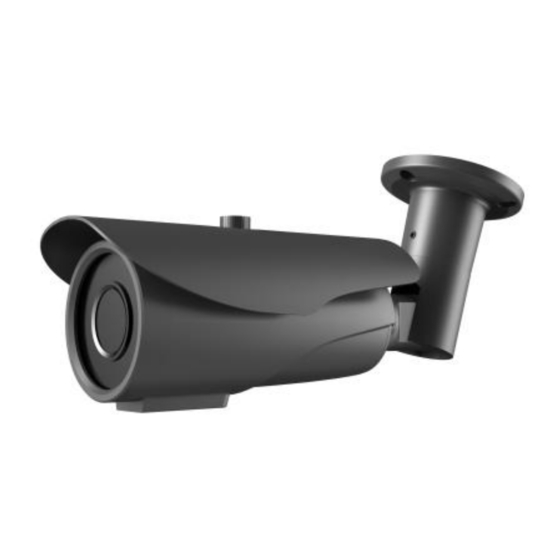

Product Description The HN-IG60200FS is a high-definition camera designed around a 1/2.9" Sony Exmor 2.19MP image sensor, 42µ x 4pcs IR led providing infrared capability up to 130 feet, and a 2.8-12mm manual zoom lens for 26-90 degrees horizontal angle of view. The ability to... -
Page 3: Notice Before Using
Notice Before Using Default Mode: 1080P AHD Video Output. If your DVR is 1080P TVI, 1080P CVI or Analog DVR, please take the OSD cap off and switch the OSD joystick to the corresponding video output mode. POWER ON the camera, switch the OSD joystick: ... - Page 4 1x user manual 1x drill template 1x Allen wrench Mechanical Inspection Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose. If equipment appears to be damaged or defective please contact us for assistance.
- Page 5 operating temperature must match requirement of this equipment. (vii) Only qualified installers are allowed to install, test and disassemble the camera. (viii) The camera is a low voltage product. If installed outdoors, proper safety and lightening grounding are required. Wiring Connections (i) Connect the power supply's DC plug to the camera's power outlet.
- Page 6 Note: It can be difficult to know what the right zoom and focus settings are and these adjustments are best made when the camera is at its intended location. There are several methods one can use to ensure proper adjustments: 1.
- Page 7 Detailed Lens Chart Detailed Lens Chart 5 feet 10 feet 25 feet 2.8mm 6.4 * 8.6 12.9 * 17.1 32.1 * 42.9 4.0mm 4.5 * 6.0 9.0 * 12.0 22.5 * 30.0 6.0mm 3.0 * 4.0 6.0 * 8.0 15.0 * 20.0 8.0mm 2.3 * 3.0 4.5 * 6.0...
- Page 8 OSD Functions and Options MAIN MENU BRIGHTNESS GLOBE EXPOSURE SHUTTE AUTO/M ADVAN MODE GAIN AUTO/M R CTRL -CED RETURN CTRL RETURN MODE RGAIN BGAIN RETURN AUTO DAY- MODE COLOR NIGHT RETURN CONTRAST AUTO/MANUAL SHARPNES AUTO/MANUAL IMAGE COLOR AUTO/MANUAL ENHANCE 3DNR AUTO/MANUAL GAIN RETURN...
- Page 9 (Back Light Compensation): In images where a bright light source is behind the subject of interest, the subject would normally appear in silhouette. BLC allows the camera to adjust the exposure of the entire image to properly expose the subject in the foreground. SHUTTER Control (Shutter Speed): Could be adjusted in manual mode from 1/30-1/10000 based on...
- Page 10 Increase contrast and you increase the separation between dark and bright, making shadows darker and highlights brighter. Decrease contrast and you bring the shadows up and the highlights down to make them closer to one another. Sharpness: Sharpness can be defined as edge contrast, that is, the contrast along edges in a photo.
-
Page 11: Specifications
Note: Normally default setting is the best for most conditions, if you have special needs, please adjust it. Specifications Model No. HN-IG60200FS Video Output Mode AHD/CVI/TVI/CVBS Camera Image Sensor 1/2.9" Sony Exmor CMOS Image Sensor... - Page 12 TV System PAL/NTSC Electronic Shutter 1/30s~1/10,000s ≥50dB S/N Ratio Scanning System Progressive Scan Lens Focus Length 2.8-12mm Horizontal View Angle 26-90 Degrees Lens Type Manual Zoom Pixels 2 Mega Pixels Night Vision Infrared LED 42µ x 4pcs Infrared Distance 100-130 Feet* IR Status Under 10 Lux by CDS...
-
Page 13: Troubleshooting
Operation Temperature 14F ~ 122F RH95% Max Storage Temperature -4F ~ 140F RH95% Max Power Source DC12V± 10%, 2000mA Dimension 291(W) x 90(H) x 93(D)mm Weight 1400g *Stated maximum IR range is based on ideal conditions in typical outdoor environment. Actual range and image clarity depends on installation location, viewing area and light reflection / absorption level of object. -
Page 14: Frequently Asked Questions
(ii) Determine if the monitor is faulty. (iii) Determine if other peripheral equipment is causing ripple and if so make the necessary adjustments. d. The picture appears smeared (i) The power supply voltage level may be unstable, therefore, try another power supply. (ii) Ensure the cables are correctly connected and/or the cables are of the correct impedance. - Page 15 A: It will stay in the same output mode, do not need to reset each time. A: Why the color is black and white at daytime? A: Make sure the camera video signal match your DVR. First check the DVR signal type, then adjust the OSD joystick to corresponding signal mode to make it match.
-
Page 16: Warranty And Customer Service
24-Month Warranty for Quality-Related Issues Honic warrants this product against defects in workmanship and material for a period of 2 years from its original purchase date. The warranty does not cover any incidental, accidental or consequential damages arising from the use of or the inability to use this product.
