- Page 1 USER MANUAL HN-IRDNT200FS 1080P AHD/CVI/TVI/1000TVL Varifocal Dome Camera...
-
Page 2: Product Description

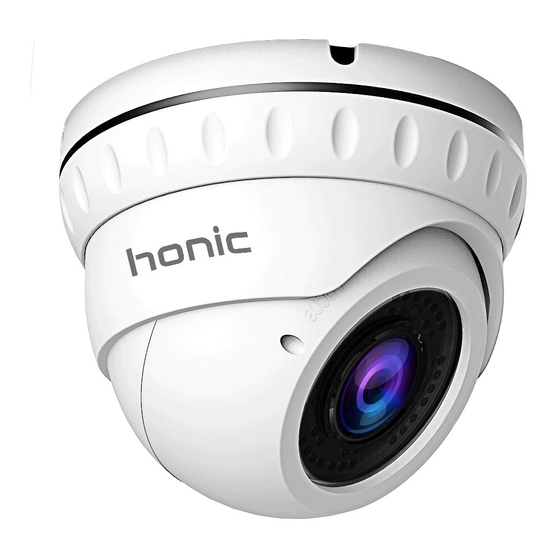

Product Description The HN-IRDNT200FS is a high-definition camera designed around a 1/2.9" Sony Exmor 2.19MP image sensor, 14µ x 24pcs IR LEDs providing infrared capability up to 100 feet, and a 2.8-12mm manual zoom lens for 26-90 degrees horizontal angle of view. The... -
Page 3: Notice Before Using
Notice Before Using Default Mode: 1080P AHD Video Output. If your DVR is TVI, CVI or Analog DVR, please switch the corresponding video output mode by OSD joystick. POWER ON the camera, switch the video output mode by OSD joystick according to your DVR video type: ... - Page 4 Mechanical Inspection Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose. If equipment appears to be damaged or defective please contact us for assistance. Special Attention (i) The installer must comply with electrical safety standards.
- Page 5 (vii) Only qualified installers are allowed to install, test and disassemble the camera. (viii) Any change to the camera's lens will affect image quality. (ix) The camera is a low voltage product. If installed outdoors, proper safety and lightening grounding are required.
- Page 6 Note: It can be difficult to know what the right zoom and focus settings are and these adjustments are best made when the camera is at its intended location. There are several methods one can use to ensure proper adjustments: 1.
- Page 7 Detailed Lens Chart Detailed Lens Chart 5 feet 10 feet 25 feet 2.8mm 6.4 * 8.6 12.9 * 17.1 32.1 * 42.9 4.0mm 4.5 * 6.0 9.0 * 12.0 22.5 * 30.0 6.0mm 3.0 * 4.0 6.0 * 8.0 15.0 * 20.0 8.0mm 2.3 * 3.0 4.5 * 6.0...
- Page 8 OSD Functions and Options MAIN MENU BRIGHTNESS GLOBE EXPOSURE SHUTTE AUTO/M ADVAN MODE GAIN AUTO/M R CTRL -CED RETURN CTRL RETURN MODE RGAIN BGAIN RETURN SMART DAY- MODE COLOR NIGHT RETURN CONTRAST AUTO/MANUAL SHARPNES AUTO/MANUAL IMAGE COLOR AUTO/MANUAL ENHANCE 3DNR AUTO/MANUAL GAIN RETURN...
- Page 9 (Back Light Compensation): In images where a bright light source is behind the subject of interest, the subject would normally appear in silhouette. BLC allows the camera to adjust the exposure of the entire image to properly expose the subject in the foreground. SHUTTER Control (Shutter Speed): Could be adjusted in manual mode from 1/30-1/10000 based on...
- Page 10 between dark and bright, making shadows darker and highlights brighter. Decrease contrast and you bring the shadows up and the highlights down to make them closer to one another. Sharpness: Sharpness can be defined as edge contrast, that is, the contrast along edges in a photo. When we increase sharpness, we increase the contrast only along/near edges in the photo while leaving smooth areas of the image alone.
-
Page 11: Specifications
OSD menu—day/night—mode—color. IR light could NOT be turned off by OSD menu, it could be turned off automatically if ambient light is bright enough. Specifications Model No. HN-IRDNT200FS Video Output Mode AHD/CVI/TVI/CVBS Camera Image Sensor 1/2.9" SONY Exmor Image Sensor... - Page 12 ≥50dB S/N Ratio Scanning System Progressive Scan Lens Focus Length 2.8-12mm Horizontal View Angle 26-90 Degrees Lens Type Manual Zoom Pixels 2 Mega Pixels Night Vision Infrared LED 14µ x 24pcs Infrared Distance 65-100 Feet* IR Status Under 10 Lux by CDS IR Power On CDS Auto Control Camera Features...
-
Page 13: Troubleshooting
Power Source DC12V± 10%, 700mA ￠131 x 93(H) mm Dimension Weight 800g *Stated maximum IR range is based on ideal conditions in typical outdoor environment. Actual range and image clarity depends on installation location, viewing area and light reflection / absorption level of object. -
Page 14: Frequently Asked Questions
d. The picture background continuously changes color (i) A fluorescent lamp's magnetic field may cause color roll, therefore, reduce the number of fluorescent lamps or increase the distance between the camera and the lamps. Camera Dimensions (mm) Frequently Asked Questions Q: Does this camera work with 720P DVR system? A: No, the video signal is 2MP 1080P, it could not work with 720P DVR. - Page 15 A: Why the color is black and white at daytime? A: Make sure the camera video signal match your DVR. First check the DVR signal type, then adjust the OSD joystick to corresponding signal mode to make it match. Make sure the camera and DVR are with same video format, both NTSC or both PAL.
-
Page 16: Warranty And Customer Service
24-Month Warranty for Quality-Related Issues Honic warrants this product against defects in workmanship and material for a period of 2 years from its original purchase date. The warranty does not cover any incidental, accidental or consequential damages arising from the use of or the inability to use this product.
