Page 1: User Manual

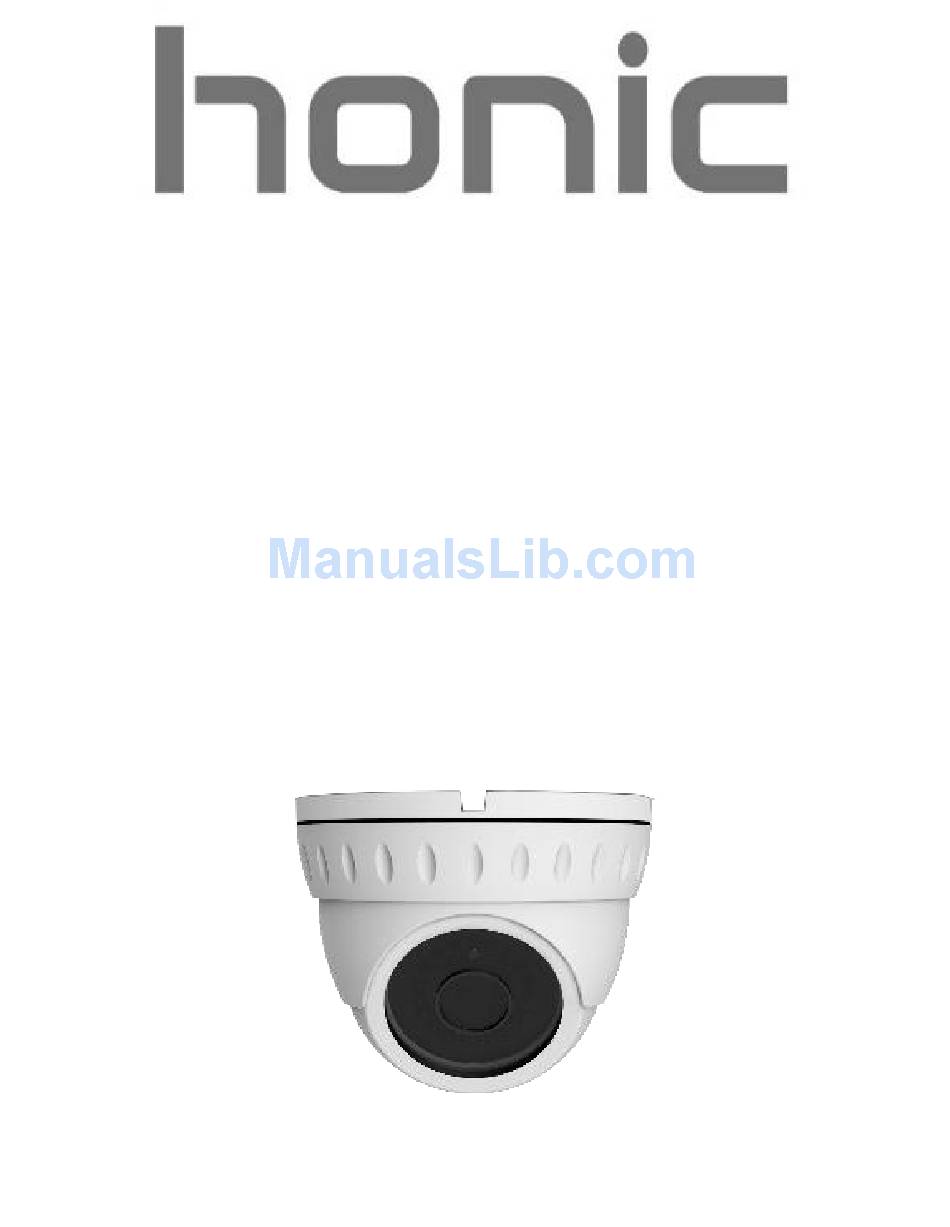

USER MANUAL HN-IRDN200F 1080P AHD/CVI/TVI/960H Hybrid Dome Camera... -
Page 2: Product Description

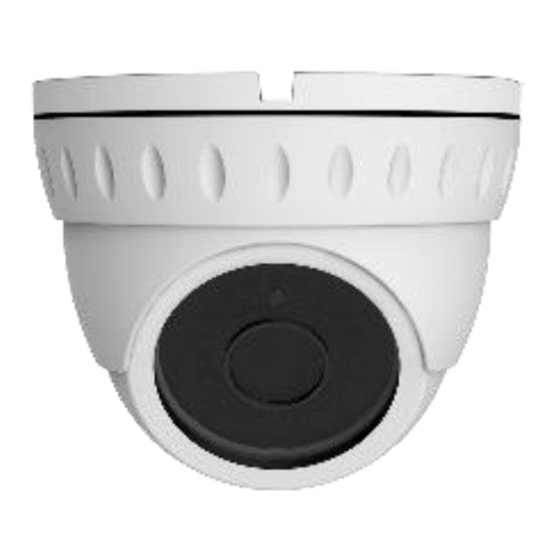

Product Description The HN-IRDN200F is a high-definition camera designed around a 1/2.7" Color 2.0 megapixel CMOS image sensor, 14µ x 18pcs IR LEDs providing infrared capability up to 65 feet, and a 3.6mm lens with wide angle field of view of 90 degrees. -
Page 3: Installation And Operation
Note: 5s means 5 seconds Installation and Operation: Unpacking and Handling Each unit is shipped assembled and factory tested. Ensure that all accessories are removed from the container before discarding packing material. Package includes 1x dome camera 4x mounting screws 4x screw anchors 1x install guide 1x user manual... - Page 4 are broken, damaged, or loose. If equipment appears to be damaged or defective please contact us for assistance. Special Attention The installer must comply with electrical safety standards. There must be sufficient space between the camera's power supply and video line and any high voltage equipment and/or cables.
- Page 5 voltage polarity and operating temperature must match requirement of this equipment. (vii) Only qualified installers are allowed to install, test and disassemble the camera. (viii) Any change to the camera's lens will affect image quality. (ix) The camera is a low voltage product. If installed outdoors, proper safety and lightening grounding are required.
- Page 6 Note: Before connecting the power supply, please check its output voltage (12V).
- Page 7 Setup OSD Menu Press the OSD joystick to start the OSD menu in any video output mode, OSD menu will show on display as following: MAIN MENU DAY-NIGHT VIDEO SETTING LANGUAGE RESET SAVE-EXIT EXIT...
- Page 8 OSD Functions and Options MAIN MENU BRIGHTNESS 1-20 GLOBE EXPOSURE CENTER MODE LV (Level) GAIN GAIN RETURN MODE RGAIN 1-16 BGAIN 1-16 RETURN AUTO DAY- MODE COLOR NIGHT RETURN CONTRAST 1-50 VIDEO SHARPNESS 1-20 SETTING COLOR GAIN 1-31...
- Page 9 1-15 FORMAT NTSC D-WDR RETURN LANGUAG English, Chinese, Spanish, Russian, Italian RESET SAVE-EXIT EXIT (Back Light Compensation): In images where a bright light source is behind the subject of interest, the subject would normally appear in silhouette. BLC allows the camera to adjust the exposure of the entire image to properly expose the subject in the foreground.
- Page 10 (Auto Tracking White Balance): White Balance allows the camera to adjust the tone according to the color temperature of the light source illuminating the subject. It allows the operator to see objects as they appear during daylight. (Manual White Balance): Adjust the red gain and blue gain manually to produce white accurately picture.
- Page 11 Sharpness: Sharpness can be defined as edge contrast, that is, the contrast along edges in a photo. When we increase sharpness, we increase the contrast only along/near edges in the photo while leaving smooth areas of the image alone. Color Gain: Color gain means saturation, it is similar to contrast, however instead of increasing the separation between shadows and highlights, it increases the separation between...
- Page 12 Exit: Leave the OSD menu. How to use OSD to get optimal image Q: Image not sharp enough? A: Press OSD toggle, OSD menu—video setting—sharpness— increase sharpness. Q: High contrast light conditions? A: Press OSD toggle, choose BLC, HLC or Digital WDR based on your needs.
-
Page 13: Specifications
Specifications Model No. HN-IRDN200F Video Output Mode AHD/CVI/TVI/CVBS Camera Image Sensor 1/2.7" CMOS Image Sensor Image Resolution 1080P / 960H Effective Pixels 1920*1080 in HD mode TV System PAL/NTSC Electronic Shutter 1/25s~1/50,000s , 1/30s~1/60,000s ≥50dB S/N Ratio Scanning System Progressive Scan... - Page 14 IR Power On CDS Auto Control Camera Features Day/Night OSD Menu Language White Balance AUTO / MANUAL Gain Control AUTO Noise Reduction Picture Adjustment DWDR OSD Support (HD Mode Only) General Housing Metal, IP66 Bracket IR Cut Filter Operation Temperature 14F ~ 122F RH95% Max Storage Temperature -4F ~ 140F RH95% Max...
-
Page 15: Troubleshooting
*Stated maximum IR range is based on ideal conditions in typical outdoor environment. Actual range and image clarity depends on installation location, viewing area and light reflection / absorption level of object. Trouble Shooting a. Night vision image very dark, could not see the object clear Please check if the IR light is on. - Page 16 (v) Ensure your AHD DVR is 1080P or 1080N, CVI and TVI DVR is 1080P. c. The picture has ripples Check to see if the power supply is experiencing AC ripple, if so a filter may be required. (ii) Determine if the monitor is faulty. (iii) Determine if other peripheral equipment is causing ripple and if so make the necessary adjustments.
-
Page 17: Frequently Asked Questions
Camera Dimensions (mm) Frequently Asked Questions Q: What else do I need to make it work? This camera can output 1080P AHD, 1080P CVI, 1080P TVI and 960H signals, so you need: 1. One of 1080P(N) AHD DVR, 1080P CVI DVR, 1080P TVI DVR or 960H analog DVR. - Page 18 Q: Will the OSD switch stay in same mode if camera is powered off, or do you have to reset mode each time you power it back up? A: It will stay in the same output mode, do not need to reset each time.
- Page 19 Q: Is there a way to turn off the IR? I have sufficient light at night and would prefer that the IR not come on at all. A: There is NO switch to turn off the IR led, the light sensor detect ambient light constantly and turn on/off the IR led automatically.
-
Page 20: Warranty And Customer Service
60 days of purchase to receive a FULL REFUND for any reason. 24-Month Warranty for Quality-Related Issues Honic warrants this product against defects in workmanship and material for a period of 2 years from its original purchase date. The warranty does not cover any incidental, accidental or consequential damages arising from the use of or the inability to use this product.
