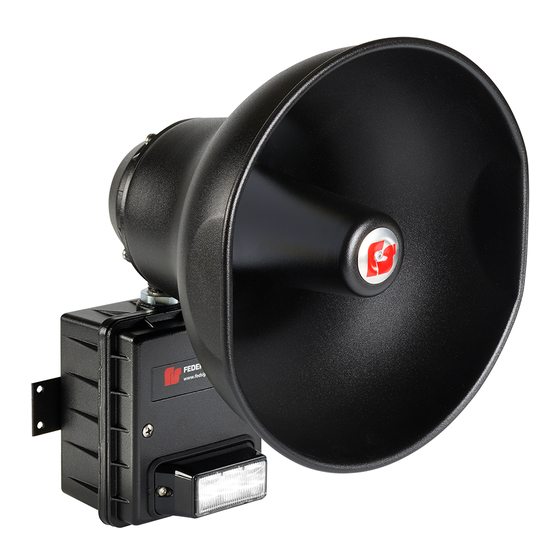

Ip-enabled indoor/outdoor speaker
Hide thumbs
Also See for Informer15:
- Installation, operation and service manual (20 pages) ,
- Description, specifications, installation, operation, and service manual (20 pages) ,
- Manual (52 pages)
Related Manuals for Federal Signal Corporation Informer15
Summary of Contents for Federal Signal Corporation Informer15
- Page 1 Informer15 Speaker Kit Model I-IP15-KIT1 IP-Enabled Indoor/Outdoor Speaker Retrofit Kit Manual 25500557 Rev. A0 0922 Printed in U.S.A. © Copyright 2022 Federal Signal Corporation...
- Page 2 2645 Federal Signal Drive University Park, Illinois 60484 www.fedsig.com Customer Support 800-548-7229 • +1 708 534-3400 Technical Support 800-524-3021 • +1 708 534-3400 All product names or trademarks are properties of their respective owners.
-
Page 3: Table Of Contents
Table 1 Ordering Information ..........................7 Table 2 Required Tools Checklist ..........................7 Table 4 I-IP15-KIT1 Kit Contents ..........................8 Figures Figure 1 Housing Open and Electronics Removed ....................10 Figure 2 Placing the Informer15 PCBs into the Housing ................... 11 Retrofit Kit Manual Federal Signal www.fedsig.com... -
Page 4: Safety Messages
• Electrocution or severe personal injury can occur when performing various installation and service functions such as making electrical connections, drilling holes, or lifting equipment. Therefore, only experienced electricians should install this Informer15 Speaker Kit (Model I-IP15-KIT1) Federal Signal www.fedsig.com... - Page 5 Safety Messages product per national, state, and any other electrical codes having jurisdiction. Perform all work under the direction of the installation or service crew safety foreman. • Read and understand all instructions before installing, operating, or servicing this equipment. •...
- Page 6 NOTICE is used to address practices not related to physical injury. Pay careful attention to the notice located on the equipment. Read and understand the information contained in this manual before attempting to install or service the siren. Informer15 Speaker Kit (Model I-IP15-KIT1) Federal Signal www.fedsig.com...
-
Page 7: General Description
This manual describes how to remove the existing electronics from the SelecTone ® housing and replace them with three PC boards using the parts included in the I-IP15-KIT1. See the Informer15 Speaker (part number 25500494) for more information about the speaker and Informer-IP Series C Setup, Program, and User Manual (part number 25500395 revision C or later) to learn how to set up, configure, program, and use Informer-IP devices. -
Page 8: Unpacking The Kit
Steel green Hex Phillips head Screw, Tap, 8-32 ® 17501870 Ethernet wire assembly cable 71401124A I-IP15-KIT1 Nameplate 17501868 IP15 wire assembly T300420-10-030 Black T-Wire, 2.5 inches (5/16"NT:5/16"NT) T300420-02-015 Red T-Wire, 2.5 inches (5/16"NT:5/16"NT) Informer15 Speaker Kit (Model I-IP15-KIT1) Federal Signal www.fedsig.com... -
Page 9: Replacing The Pc Boards In The Speaker
Replacing the PC Boards in the Speaker Replacing the PC Boards in the Speaker Read and adhere to all safety warnings in this manual before installing the speaker. ELECTROCUTION HAZARD: Electrocution or severe personal injury can occur when making electrical connections, drilling holes, or lifting equipment. Therefore, experienced electricians per national and local electrical codes, acting under the direction of the installation crew safety foreman, should perform the installation. -
Page 10: Figure 1 Housing Open And Electronics Removed
EXPLOSION HAZARD: Property damage, serious injury, or death could occur if the housing is not closed properly. To reduce possibility of explosion, the housing cover must be kept tight while circuits are energized. Informer15 Speaker Kit (Model I-IP15-KIT1) Federal Signal www.fedsig.com... -
Page 11: Testing
Testing Figure 2 Placing the Informer15 PCBs into the Housing I-IP15-KIT1 INSTALLATION 8. INSTALL THE 20000377 PCBA NEXT AND SECURE IT WITH THE FOUR REMAINING SCREWS. 7. CONNECT THE SPEAKER LEADS TO PCBA 20000376. 9. ROTATE SPEAKER TO THE YELLOW WIRE SHOULD... -
Page 12: Maintenance
If you are experiencing any difficulties, contact Federal Signal Customer Support at 800-548-7229 or 708-534-3400 extension 7511 or Technical Support at 800-524-3021 or 708-534-3400 extension 7329 or e-mail at techsupport@fedsig.com. For instruction manuals and information on related products, visit http://www.fedsig.com/. Informer15 Speaker Kit (Model I-IP15-KIT1) Federal Signal www.fedsig.com...
