Operation
Chapter 5
5.1.

Front and Back Panel Overview

Power Adjust Knob
Keylock Power Switch
Turn on power to the unit.
Key only removes when off
Remote Interlock Input
Modulation Input
0 to 5 V Max, 50 Ω
Page 6

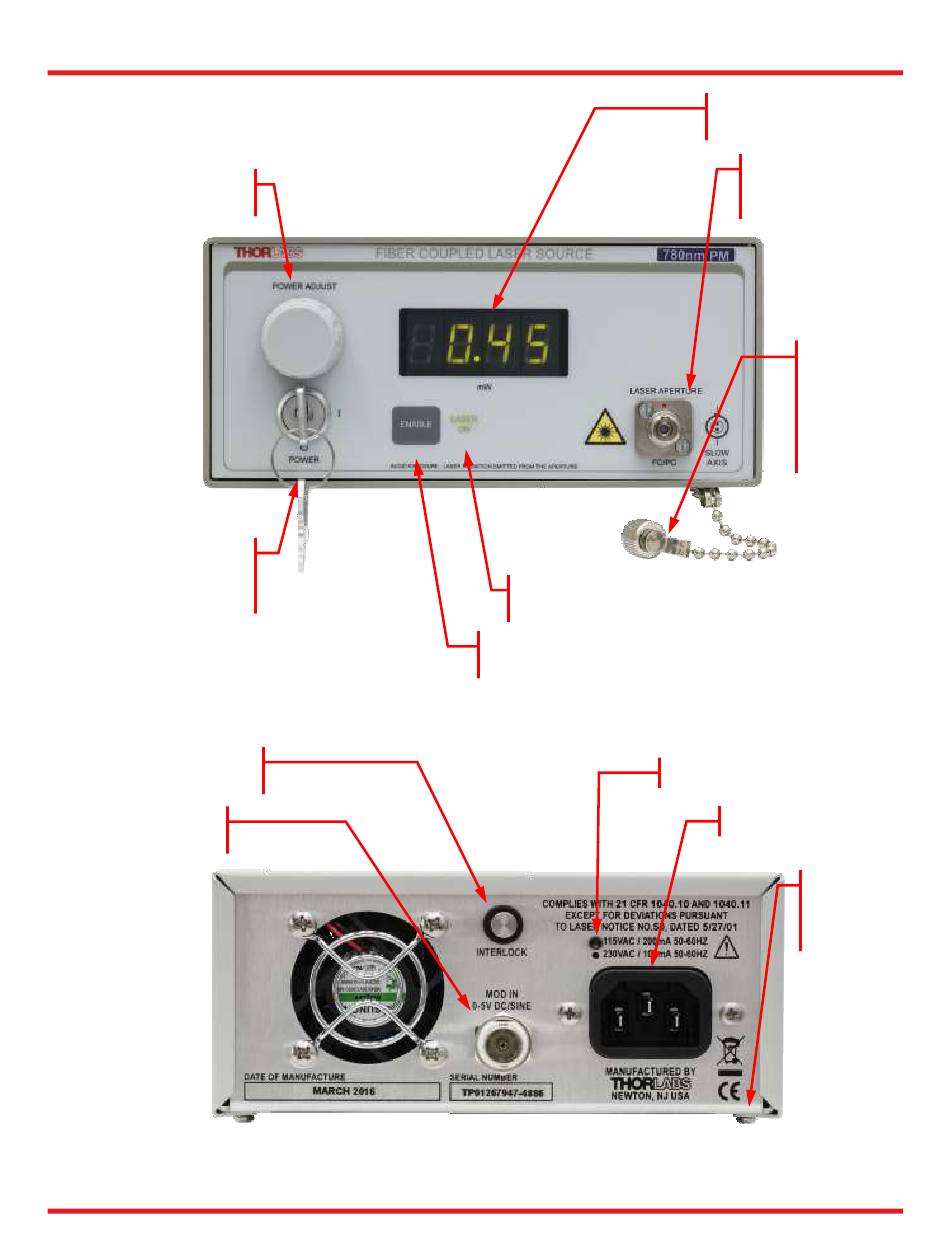

Figure 2 Front and Rear Panels of Laser Source
Laser Emission Indicator
Lights up 5 seconds before laser turns
on
Laser Enable Switch
Press to activate laser
Chapter 5: Operation
3½ Digit Display
Laser Output Aperture
FC/PC PM Fiber Optic
Connector
Laser Output
Aperture Cover
Cover should be
installed on FC
connector when
fiber removed
Voltage Type Cap Screw Indicator
AC Power Cord Connector
Cover Screws (2)
Remove to access
line voltage switch
and fuse
