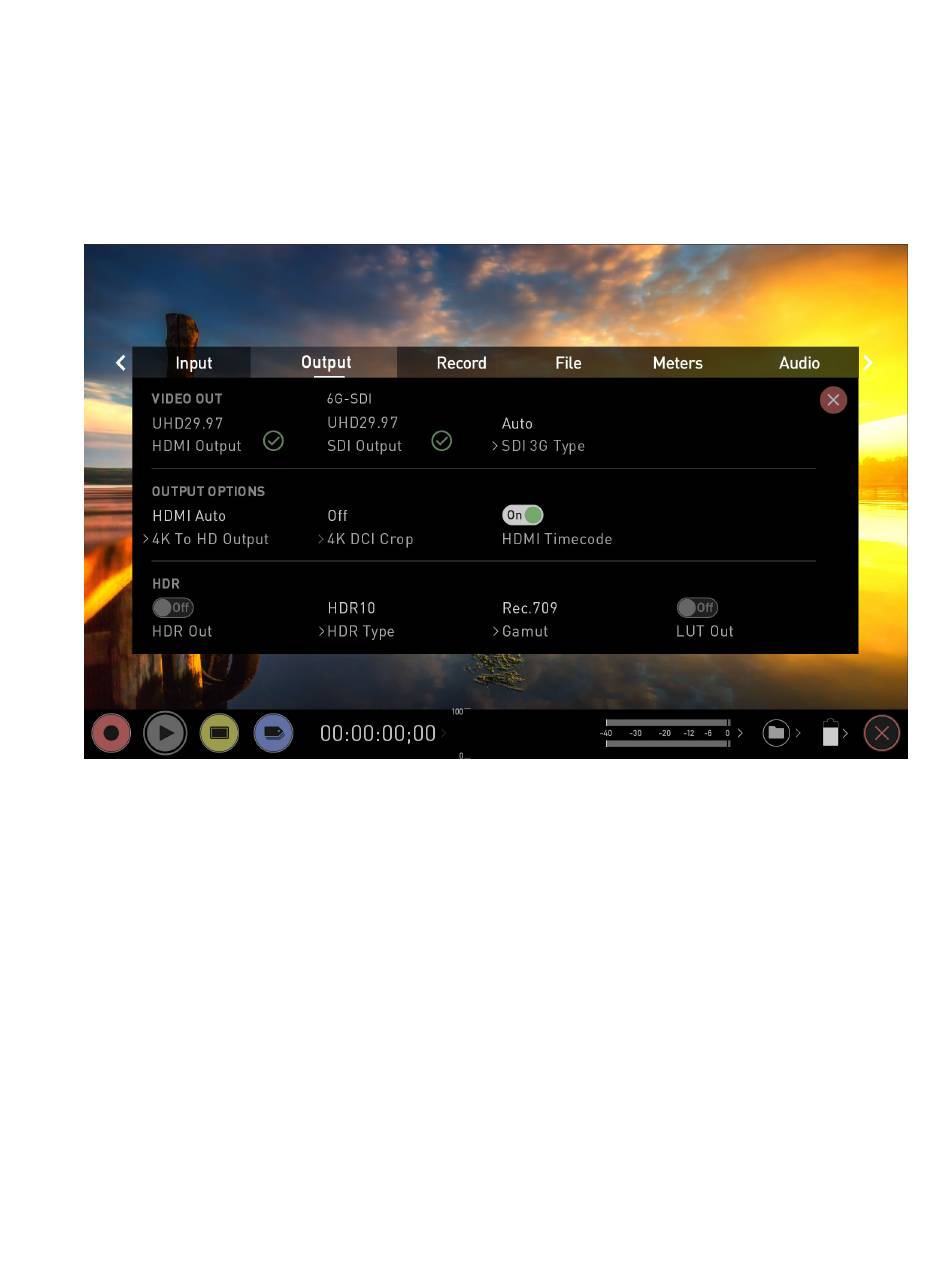

Output Menu

This menu displays the active video format being output over HDMI or SDI. A 4K to HD
down conversion can be applied to the output, which allows you to send a 4K input signal
to a HD device. When working in HDR a signal will be output with the HDR flag to activate
the correct settings on a compatible HDR display. This can be useful if you wish to monitor
log footage in the studio.
VIDEO OUT
This section displays the resolution of the Input. When processing options are applied
below it will be adjusted accordingly.
HDMI Output
Displays the resolution and frame rate of the HDMI Output from your SHOGUN STUDIO 2.
