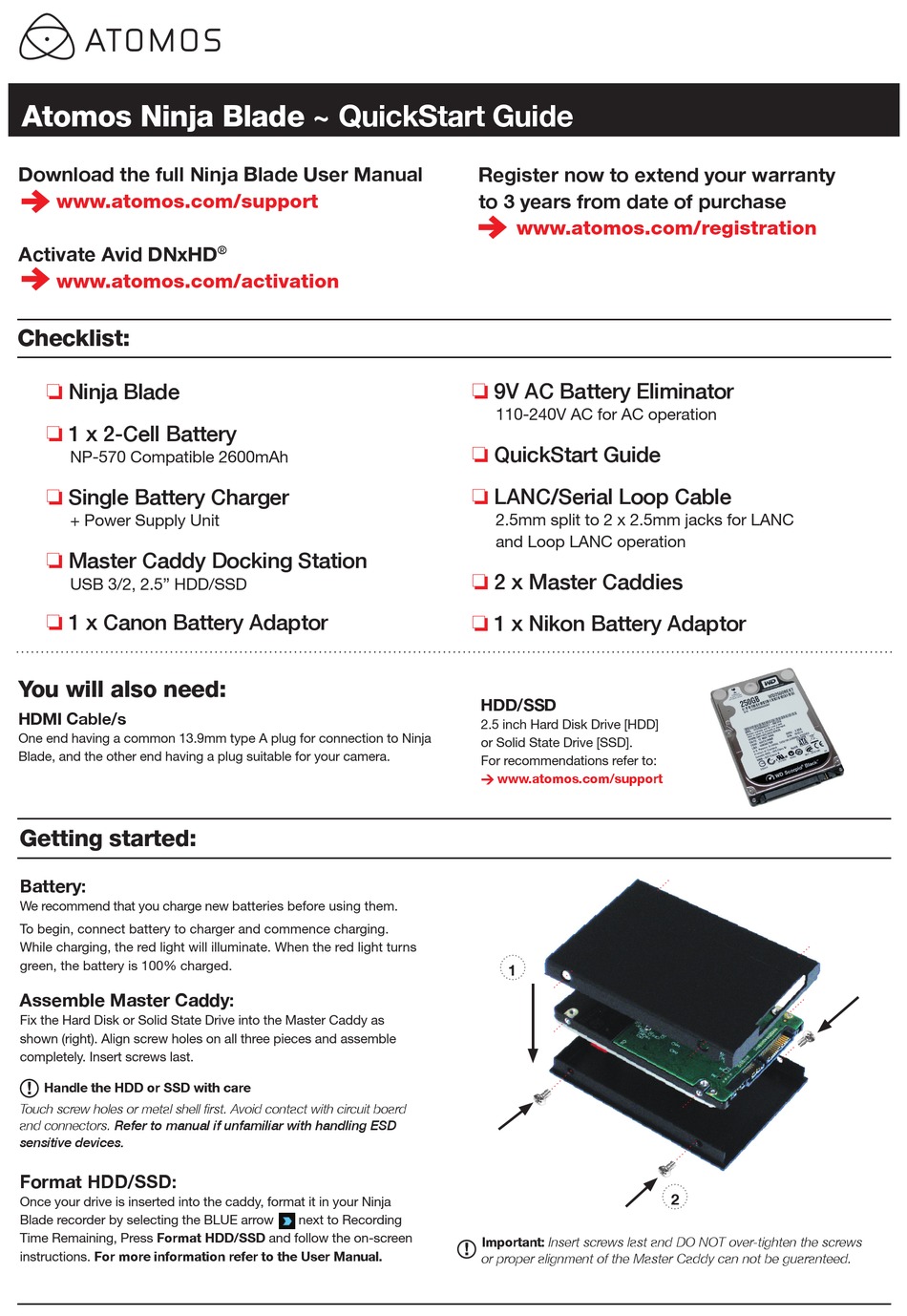

Atomos Ninja Blade Quick Start Manual

Atomos Ninja Blade ~ QuickStart Guide
Download the full Ninja Blade User Manual
www.atomos.com/support
Activate Avid DNxHD
www.atomos.com/activation
Checklist:

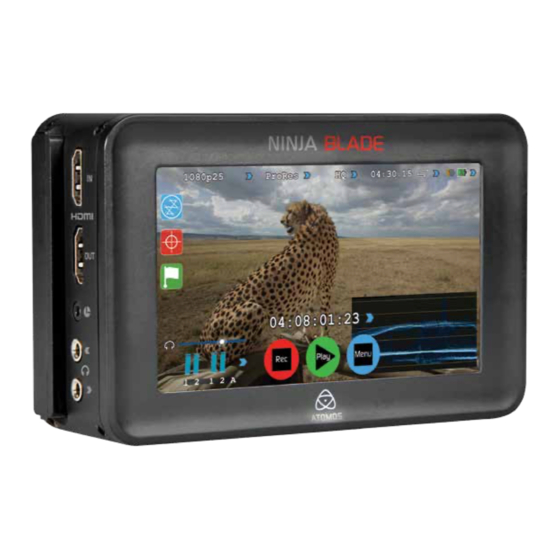

Ninja Blade
❏
1 x 2-Cell Battery
❏
NP-570 Compatible 2600mAh
Single Battery Charger
❏
+ Power Supply Unit
Master Caddy Docking Station
❏
USB 3/2, 2.5" HDD/SSD
1 x Canon Battery Adaptor
❏
You will also need:
HDMI Cable/s
One end having a common 13.9mm type A plug for connection to Ninja
Blade, and the other end having a plug suitable for your camera.

Getting started:

Battery:
We recommend that you charge new batteries before using them.
To begin, connect battery to charger and commence charging.
While charging, the red light will illuminate. When the red light turns
green, the battery is 100% charged.
Assemble Master Caddy:
Fix the Hard Disk or Solid State Drive into the Master Caddy as
shown (right). Align screw holes on all three pieces and assemble
completely. Insert screws last.
Handle the HDD or SSD with care
Touch screw holes or metal shell first. Avoid contact with circuit board
and connectors. Refer to manual if unfamiliar with handling ESD
sensitive devices.
Format HDD/SSD:
Once your drive is inserted into the caddy, format it in your Ninja
Blade recorder by selecting the BLUE arrow
Time Remaining, Press Format HDD/SSD and follow the on-screen
instructions. For more information refer to the User Manual.
®
next to Recording
Register now to extend your warranty
to 3 years from date of purchase
www.atomos.com/registration
9V AC Battery Eliminator
❏
110-240V AC for AC operation
QuickStart Guide
❏
LANC/Serial Loop Cable
❏
2.5mm split to 2 x 2.5mm jacks for LANC
and Loop LANC operation
2 x Master Caddies
❏
1 x Nikon Battery Adaptor
❏
HDD/SSD
2.5 inch Hard Disk Drive [HDD]
or Solid State Drive [SSD].
For recommendations refer to:
> www.atomos.com/support
1
Important: Insert screws last and DO NOT over-tighten the screws
or proper alignment of the Master Caddy can not be guaranteed.
2
