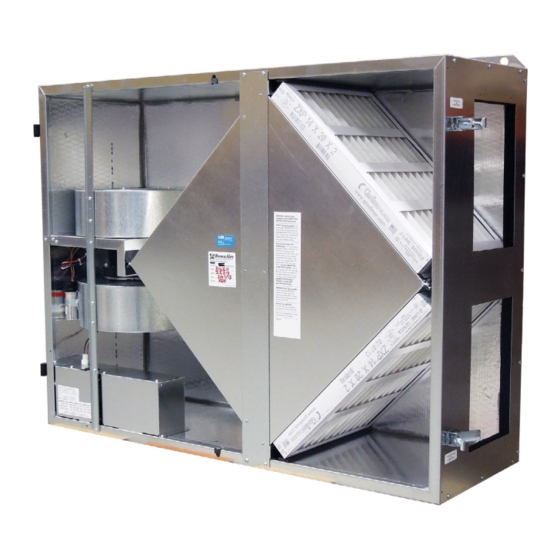

- Page 1 EV SERIES ERV Installation, Operation and Maintenance Manual EV130 EV200 EV240 EV300 Model: EV130 Model: EV200 & EV240 Model: EV300...
- Page 2 EV130, EV200, EV240, and EV300 WARNING WARNING Risk of Fire, Electric Shock, or Injury. Observe all Codes There is no known safe level of cigarette smoke. Any venti- and the following: lation system may provide noticeable improvement in spaces where cigarettes are smoked, but it cannon be expected to 1.
- Page 3 Record information as shown below. In the unlikely event that factory assistance is ever required, this information will be needed. Locate the RenewAire unit label, to be found outside of the appliance. Record the model and serial numbers below. NOTE: This page NOTE: This information is for purposes of identifying the specific air handling appliance.
- Page 4 FRONT VIEW RIGHT VIEW RIGHT VIEW Specifications may be subject Specifications may be subject to change without notice. to change without notice. Model: EV130 Model: EV130 Drawing Type: Unit Dimension Drawing Type: Unit Dimension RENEWAIRE.COM 1.800.627.4499 Version: JUN18 Version: JUN18 1.800.627.4499...
- Page 5 Download specification at: 10 1/2" x 21 3/4" x 1" Push-button point-of-use controls (PBL), PTL req’d. Percentage timer control with furnace interlock (FM) renewaire.com/specifications Unit Dimensions & Weight: Dehumidistat control (DH24) 33 1/2" L x 24" W x 20" H MERV 13 filter - OA airstream (shipped loose) 68 lbs.
- Page 6 Typ. (4) Typ. Specifications may be subject to change without notice. to change without notice. Terminal Model: EV240 FRONT VIEW RENEWAIRE.COM 1.800.627.4499 Drawing Type: Unit Dimension LEFT VIEW (HANGING BRACKET REMOVED FOR CLARITY) RIGHT VIEW Version: JUN18 1.800.627.4499 Model: EV240...
- Page 7 Download specification at: Dehumidistat control (DH24) Unit Dimensions & Weight: MERV 13 filter - OA airstream (shipped loose) renewaire.com/specifications 33 3/4" L x 24" W x 20" H Electric duct heater - RH series (1-10 kW); 72 lbs. designed for indoor ductwork installation only Max.
-
Page 8: Table Of Contents
TABLE OF CONTENTS EV130, EV200, EV240, and EV300 1.0 OVERVIEW 1.1 DEFINITIONS .....................10 1.2 DESCRIPTION ....................10 1.2.1 Purpose of an ERV System ....................... 10 1.2.2 When Should You Use Your ERV ....................10 1.2.3 Using an ERV with Air-Conditioning ..................10 1.2.4 Controlling Excess Humidity During Cold Weather .............. - Page 9 TABLE OF CONTENTS EV130, EV200, EV240, and EV300 TABLE OF ILLUSTRATIONS Figure 2.2.0 Service Clearances .......................11 Figure 2.4.0 Separate Room Air Pick-up—Fresh Air to Furnace Return Air Trunkline ......13 Figure 2.4.1 Separate Air and Fresh Air Supply, EV130 Shown ............13 Figure 2.4.2 Furnace Return Air Back into Return Air .................13 Figure 2.4.3 Furnace Return Air Back into Supply Air .................13 Figure 3.1.0 Mounting the ERV to a Stud Wall ..................14...
-
Page 10: Overview
OVERVIEW EV130, EV200, EV240, and EV300 1.0 OVERVIEW 1.1 DEFINITIONS Energy Exchange System: Blower/Motor: Cross flow fixed-plate enthalpic energy A single high efficiency PSC motor exchange core: engineered, proprietary directly drives two large diameter NOTE: This unit is resin-media composite. Provides both centrifugal blowers for quiet operation. -
Page 11: Location Of The Unit
UNIT PLACEMENT EV130, EV200, EV240, and EV300 2.2 LOCATION OF THE UNIT Select a location so that: The fresh air intake vent from the outside is placed a minimum of 10' from any other contaminated exhaust vent, and is at least 30" long. The two ducts to the outside are as short and straight as possible, for the best performance from the system. -
Page 12: Ductwork Applications
CAN AN ERV BE USED TO VENTILATE BATHROOMS? FA = Fresh Air to inside A RenewAire ERV can be used as a central exhaust system in place of bathroom exhaust fans. Tie a grille in each bathroom directly back to the ERV—see Figure 2.4.0. A successful installation should provide at least 50 CFM of exhaust per moisture producing bathroom. -
Page 13: Figure 2.4.0 Separate Room Air Pick-Up-Fresh Air To Furnace Return Air Trunkline
FIGURE 2.4.0 SEPARATE ROOM AIR PICK-UP—FRESH AIR TO FURNACE RETURN AIR TRUNKLINE NOTE: ERV blower may be operated www.renewaire.com (800) 627- 4499 support@renewaire.com separate from furnace blower. FIGURE 2.4.1 SEPARATE RETURN AIR AND FRESH AIR SUPPLY, EV130 SHOWN www.renewaire.com... -
Page 14: Installation
INSTALLATION EV130, EV200, EV240, and EV300 3.0 INSTALLATION 3.1 MOUNTING THE UNIT UNIT MAY BE INSTALLED IN ANY ORIENTATION NOTE: The door Orient the unit for the simplest duct layout and connections. is equipped with MOUNT THE ERV ON A CONCRETE FOUNDATION WALL slide-off hinges. -
Page 15: Installing Return Air Ducts
For an installation in which the ERV should run continuously in order to provide the required ventilation rate for the home, no controls are needed. However, in most installations, control over the unit operation is desired and this is best provided by an optional RenewAire Percentage Timer Control (PTL or FM). -
Page 16: Installing Controls
EV130, EV200, EV240, and EV300 3.5.1 Installing Controls Optional Controls: RenewAire offers a variety of controls specifically designed to work with the EV130/200/240/300 products. These include: PTL (a two wire percentage timer), FM (a six CAUTION wire percentage timer that will interconnect with the furnace blower), and PBL (point of use Do not remove or disable push button control). -
Page 17: Use Damper To Balance Airflow To Desired Rates
FIGURE 4.2.0 DAMPER INSTALLATION 4.3 MEASURING AIRFLOW NOTE: Be sure to enewaire.com (800) 627- 4499 support@renewaire.com www.renewaire.com (800) 627- 4499 support@renewaire.com 4.3.1 Equipment Required remove cap from pressure port A magnehelic gauge or other device capable of measuring 0–1.0 in. water of differential before inserting tubing. -
Page 18: Maintenance
Always handle the core 6. Re-install door, and fasten cam latches. carefully. The primary contact for replacement filters for your RenewAire unit is the installing contractor. As an alternative, you may wish to produce your own filters. Please follow these instructions: 1.800.627.4499... -
Page 19: Motor Maintenance
10 ½" x 10 ½" several times. EV200/EV240/EV300 10 ½" x 21 ¾" NOTE: Filters must Call your HVAC contractor or RenewAire for further information. be used or the 5.3 MOTOR MAINTENANCE face of the energy exchange core will become... - Page 20 About RenewAire For over 30 years, RenewAire has been a pioneer in enhancing indoor air quality (IAQ) in commercial and residential buildings of every size. This is achieved while maximizing sustainability through our fifth-generation, static-plate, enthalpic-core Energy Recovery Ventilators (ERVs) that optimize energy efficiency, lower capital costs via load reduction and decrease operational expenses by minimizing equipment needs, resulting in significant energy savings.
