RenewAire 90 Series Installation And Operation Manual

INSTALLATION AND OPERATION MANUAL
90-Series

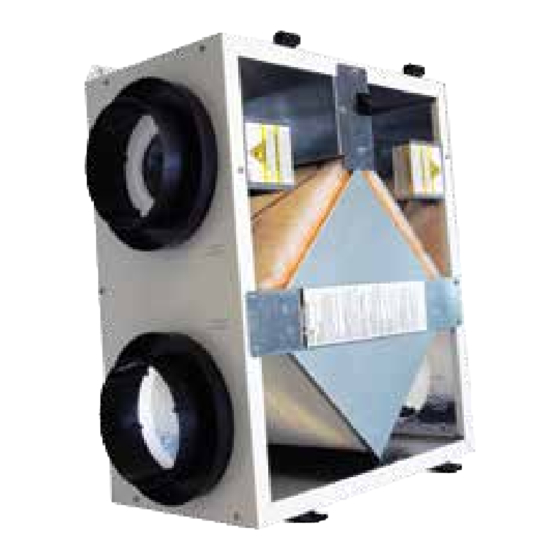

GR90:
Galvanized Case
Line Voltage
No Line Cord
Before You Begin
Read all instructions before installing the unit. Also review
supplemental instructions included with any controls that
will be installed. Carefully unpack and inspect the unit
for shipping damage.Open the access door and inspect
inside the unit. Attach the four duct collars to the unit
with the screws provided in the plastic small-parts bag.
90-Series Due to continuing product development, specifications are subject to change without notice.
102779_002
EV90:
Painted Case
Low Voltage Controls
Line Cord
EV90P:
High Performance Unit
Painted Case
Low Voltage Controls
Line Cord
90SeriesMan_Sept13.indd
4510 Helgesen Drive, Madison, WI 53718
(608) 221-4499, (800) 627-4499, Fax: (608) 221-2824
support@renewaire.com www.renewaire.com
RISK OF FIRE, ELECTRIC SHOCK, OR INJURY.
OBSERVE ALL CODES AND THE FOLLOWING:
1. Before servicing or cleaning the unit, unplug the unit line
cord or shut off power at service switch or circuit breaker.
Make sure unit is not running before opening its door.
2. This installation manual
installation method. Additional measures may be
required by local codes and standards.
3. Installation work and electrical wiring must be done
by qualified professional(s) in accordance with all
applicable codes, standards and licensing requirements.
4. Any structural alterations necessary for installation
must comply with all applicable building, health, and
safety code requirements.
5. Connect this unit only to a 120VAC grounded circuit
protected by a 15 amp circuit breaker.
6. Do not install unit or controls where they can be
reached from a tub or shower.
7. This unit must be properly ducted to the outdoors.
8. Outside air inlet for this unit must be located away
from sources of hazardous air such as auto exhausts.
9. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment that might be installed in the area
affected by this equipment. If this unit is exhausting
air from a space in which chimney-vented fuel burning
equipment is located, take steps to assure that combustion
air supply is not affected. Follow the heating equipment
manufacturer's requirements and the combustion air
supply requirements of applicable codes and standards.
10. This unit is intended for general ventilating only. Do
not use to exhaust hazardous or explosive materials
and vapors. Do not connect this unit to range hoods,
fume hoods or collection systems for toxics.
11. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
12. Use the unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
1. To avoid motor bearing damage and noisy and/
or unbalanced
construction dust, etc., out of the unit.
2. Do not connect power to the units external control
terminals: this will damage the unit. The external
terminals are for use only with un-powered controls
designed for low-voltage operation.
Revised 09/2013
shows the
impellers, keep drywall
© 2013 RenewAire LLC
www.renewaire.com
suggested
spray,
Page 1
