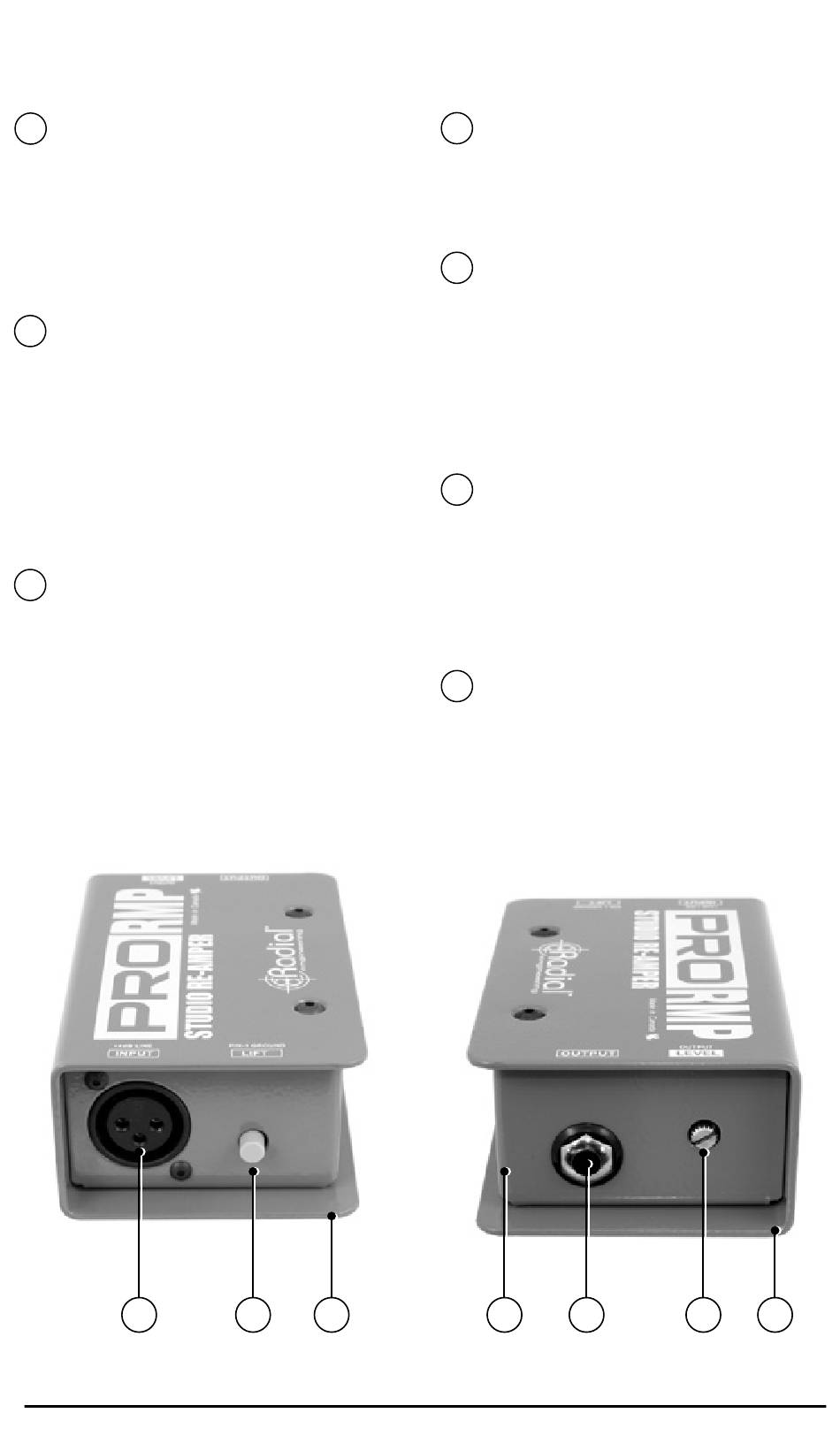

FEATURES AND FUNCTIONS

INPUT
1
Balanced low-Z XLR input jack,
+4dB line-level, 1600Ω. The
XLR female connector is wired
with Pin 2 hot following the AES
standard.
GROUND LIFT
2
Disconnects pin 1 at the XLR
input and interrupts the ground
path between the recorder and
the ProRMP ¼" output. The
ProRMP must be connected to
a properly grounded amp to use
the LIFT switch.
BOOKEND DESIGN
3
14 gauge steel outer shell cre-
ates protected zone around
connectors and switches.
1
Radial Engineering
2 3
4
I-BEAM CONSTRUCTION
Welded internal enclosure features
ultra rigid I-beam construction to
protect the PC board.
5
OUTPUT
Hi-Z ¼" output connects to guitar
amp or eff ect pedal input. This out-
put provides the primary ground
path for the ProRMP. This output
should be connected to a properly
grounded amplifi er.
6
LEVEL
The output LEVEL control sets
the level going to the guitar
amplifi er. This recessed control is
adjusted using a guitar pick as a
screwdriver.
7
FULL-BOTTOM NO-SLIP PAD
This provides mechanical isolation
to reduce slipping and electrical
isolation from amplifier frames
and handles.
4 5 6 7
