The fixture's base enables to be mounted in two ways.
The Moving-Head can be placed directly on the stage floor or rigged in any orientation on a truss without

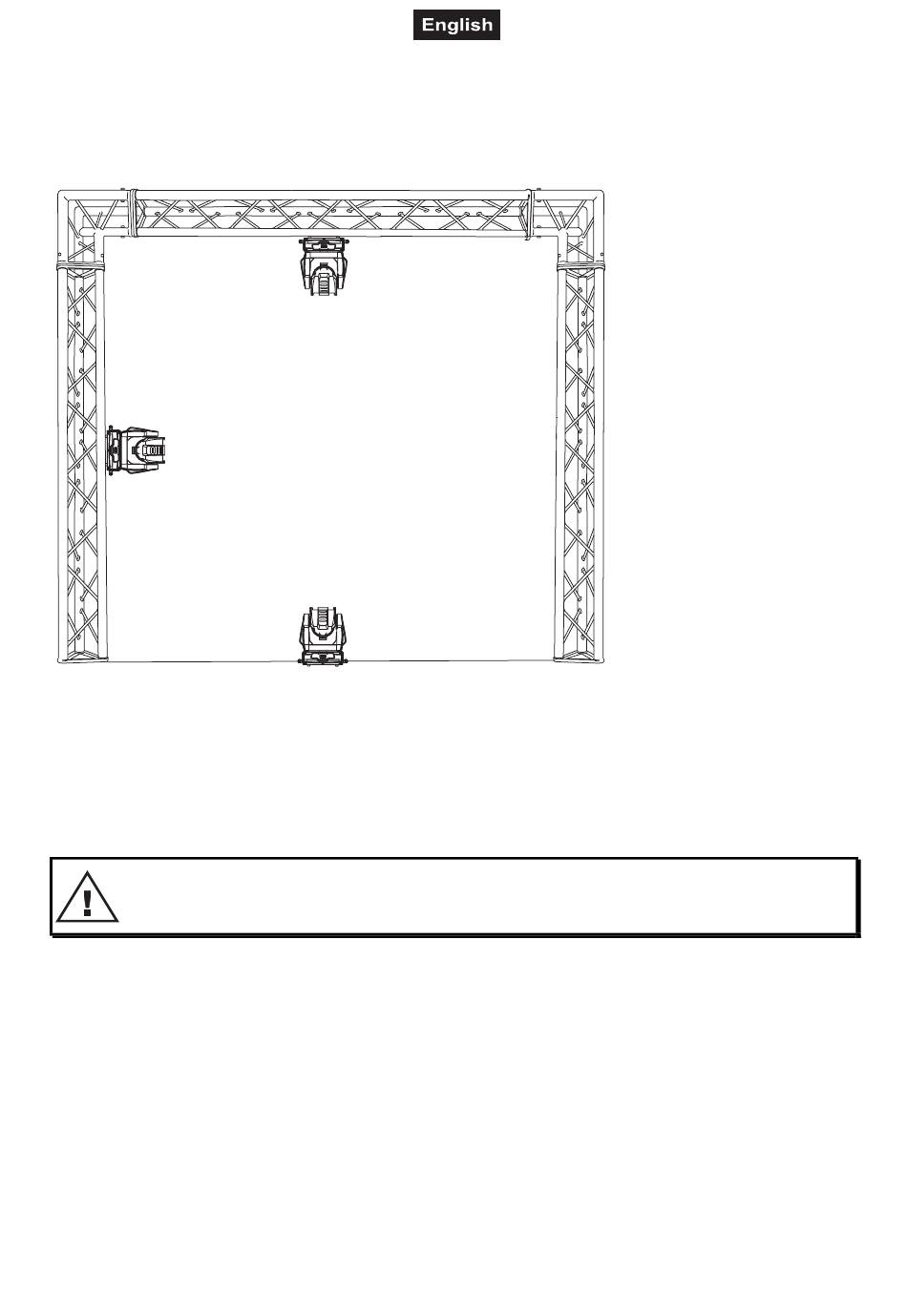

altering its operation characteristics (see the drawing).
For overhead use (mounting height >100 cm), always install an appropriate safety bond.
made liable for damages caused by incorrect installations or insufficient safety precautions!
Install the safety bond by inserting the quick link in the hole on the bottom of the base Pull the safety bond
over the trussing system etc. Insert the end in the quick link and tighten the fixation screw.
The maximum drop distance must never exceed 20 cm.
A safety bond which already hold the strain of a crash or which is defective must not be used again.
Before taking into operation for the first time, the installation has to be approved by an expert!
DANGER TO LIFE!
30/44
You must only use safety
bonds complying with
56927, quick links complying
with DIN 56926, shackles
complying with DIN EN 1677-1
and BGV C1 carbines. The
safety bonds, quick
shackles and the carbines
must be sufficiently
dimensioned and
correctly in accordance with
the latest industrial
regulations (e. g. BGV C1, BGI
810-3).
Please note: for overhead
rigging in public or industrial
areas, a series of
instructions have to be followed
that this manual can only give
in part. The operator must
therefore inform himself on the
current safety instructions and
consider them.
The manufacturer cannot be
