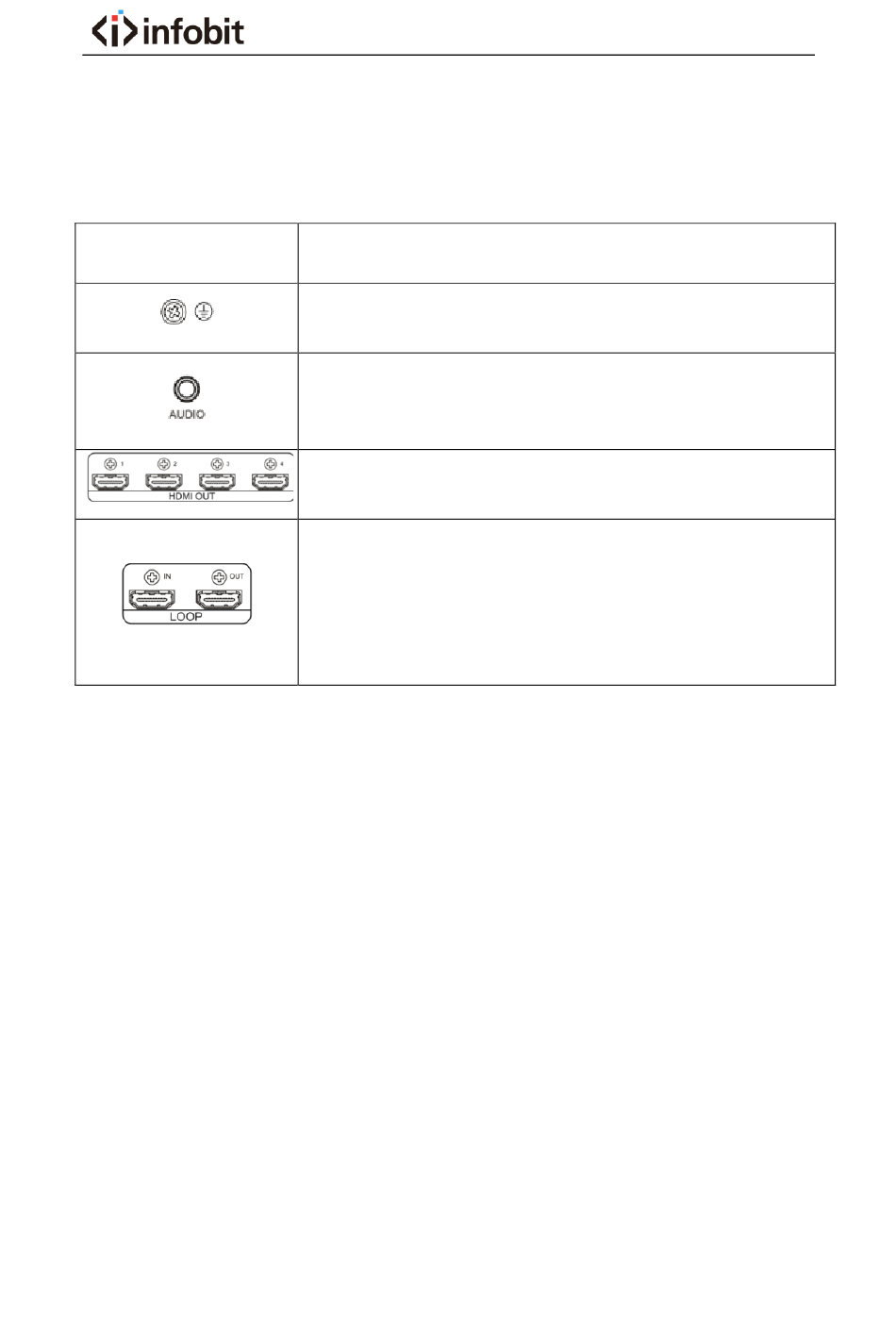

Figure 3-1 The iWall 360 device back view
Table 2 The iWall 360 device back side interface details
Connector Description
Ground
3.5mm audio analog connector
4 HDMI output ports
Cascading interfaces:
IN for cascading input；
OUT for cascading output；

4. Application Specification

1) Input configuration

Each individual device supports only one local input signal source, and each input signal source
can open only one window on the whole output system.

2) Output configuration

(1) Each device has 4 HDMI output ports.
(2) Each output has image rotation function, allow to do any degree rotation.
(3) The output settings support any position and layout, namely, the display screen of the output
terminals can support every moving, overlaying and other operations;
