5) Control methods

Using the software SmartEditor to communicate and control via RJ-45 connector (LAN 1);
The device includes 2 LAN ports (LAN 1 and LAN 2). The devices can cascade in series via
connection from LAN 2 port of one device to LAN 1 port of the next.
Note: when there are no correct input signals, devices will display their IP addresses of LAN 1 on
displays.

6) Mechanical index

Appearance size: 208 x 45 x 199mm (8.19 x 1.77 x 7.83 in)

3. Appearance Description

1) Front port

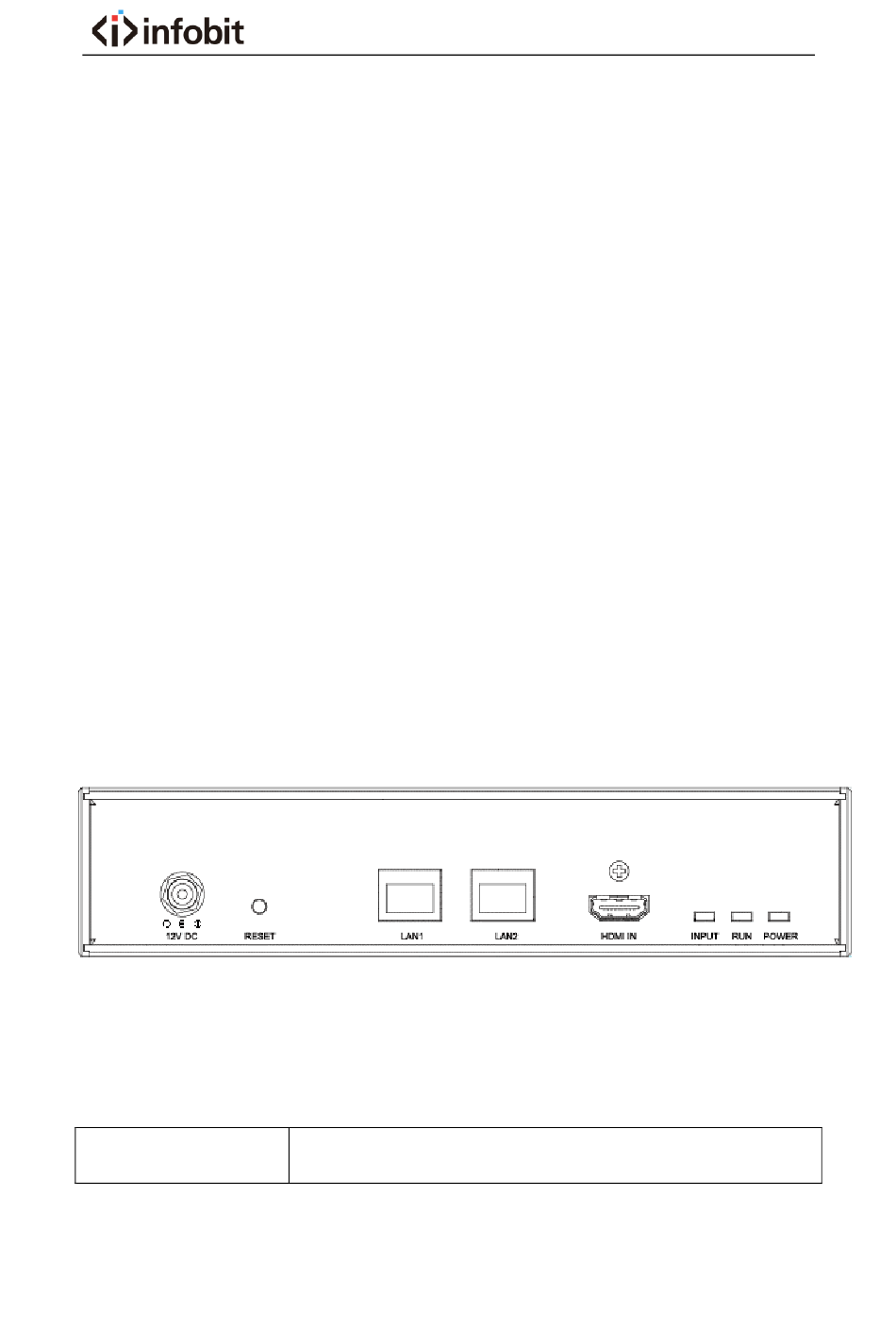

The front side of The iWall 360 is shown in figure 1, the interface detail as following table 1：
Figure 3-1 The iWall 360 device front view
Table 1 The iWall 360 processor front interface detail
Connector Description
