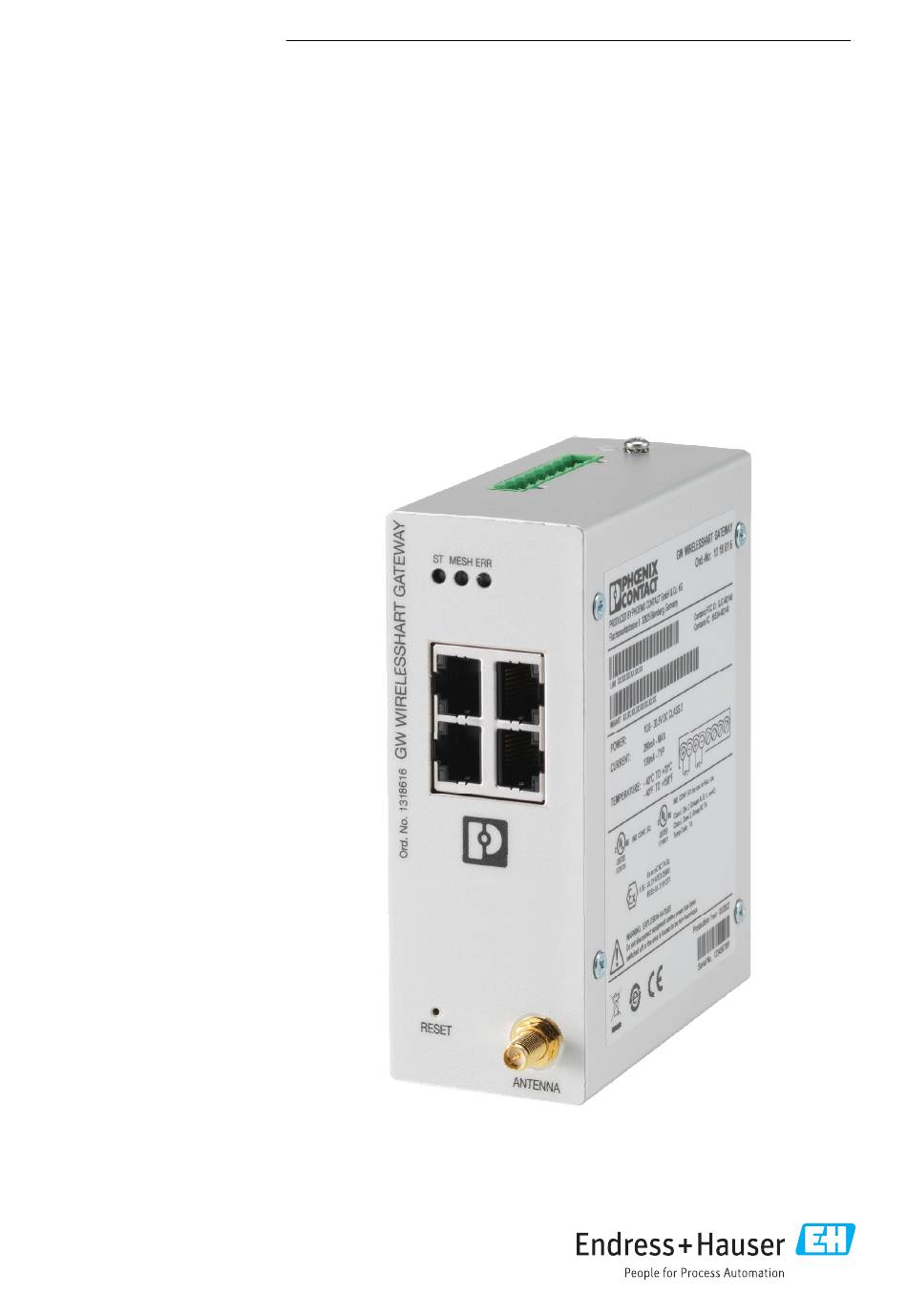

- Page 1 Products Solutions Services BA02235S/04/EN/01.22-00 71574495 2022-03-31 Operating Instructions FieldGate SWG50 Functional WirelessHART Gateway...
-
Page 3: Table Of Contents
FieldGate SWG50 Table of contents Table of contents About this document ... 4 Diagnostics and Document function ....4 troubleshooting . -
Page 4: About This Document
About this document FieldGate SWG50 About this document Document function These Operating Instructions contain all the information required in the various life cycle phases of the device: from product identification, incoming acceptance and storage, to installation, connection, operation and commissioning, through to troubleshooting, maintenance and disposal. -
Page 5: Documentation
FieldGate SWG50 is a gateway for WirelessHART networks. It enables WirelessHART field devices to communicate with each another and manages network security and connectivity. The FieldGate SWG50 converts and stores data from wireless field devices in a format that is Endress+Hauser... -
Page 6: Workplace Safety
Conversions to the device Unauthorized modifications to the device are not permitted and can lead to unforeseeable dangers. ‣ If, despite this, modifications are required, consult with Endress+Hauser. Repair To ensure continued operational safety and reliability, ‣ Carry out repairs on the device only if they are expressly permitted. -
Page 7: Product Description

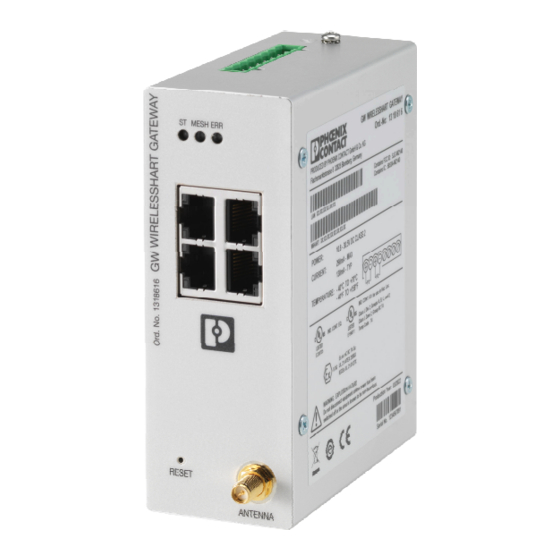

Product description The FieldGate SWG50 is a functional WirelessHART gateway. It comprises a network manager application, a WirelessHART (access point) interface module and a gateway application. Up to 100 wireless or wired devices with WirelesssHART adapter can be connected to the FieldGate SWG50. - Page 8 Product description FieldGate SWG50 A0048889 1 FieldGate SWG50 Antenna connection Reset button 4-port Ethernet switch (RJ45) LEDs Connector for power supply Ground connection Endress+Hauser...
-
Page 9: Product Design
FieldGate SWG50 Product description Product design Netilion WirelessHART A0048719 2 Example of WirelessHART network architecture with FieldGate SWG50 Endress+Hauser Field Xpert, e.g. SMTxx Host application / FieldCare SFE500 Ethernet communication FieldGate SWG50 FieldEdge SGC500 https Internet connection Netilion Cloud... -
Page 10: Incoming Acceptance And Product Identification
The device may not be put into operation if the contents are found to be damaged beforehand. In this case, please contact your Endress+Hauser Sales Center: www.addresses.endress.com Return the device to Endress+Hauser in the original packaging where possible. Scope of delivery • FieldGate SWG50 •... -
Page 11: Storage And Transport
Mounting the device The FieldGate SWG50 is mounted on an NS 35 mounting rail. To prevent the device from slipping, end clamps must be mounted on both sides. The device can be mounted either horizontally or vertically. - Page 12 Mounting FieldGate SWG50 A0048928 5 Mounting on a standard DIN rail Endress+Hauser...
- Page 13 FieldGate SWG50 Mounting Mounting the device A0048933 Endress+Hauser...
-
Page 14: Post-Mounting Check
Ethernet cable with the RJ45 connector into the device until it locks into place. When two, three or four Ethernet ports are used, the FieldGate SWG50 is classified as a switch. If only one port is used, it is a straightforward end-node device. The maximum number of linked gateways and the maximum distance between the units are based on the Ethernet standards and are determined by the environment and the compliance of the network with the standard. -
Page 15: Connecting The Device
FieldGate SWG50 Electrical connection Connecting the device A0050154 Antenna Ethernet Power supply Power supply 10.8 to 30 V 10.8 to 30 V Endress+Hauser... -
Page 16: Special Connection Instructions
• Is the supply voltage correct? • Is the FieldPort SWG50 grounded, if necessary? Operation options The FieldGate SWG50 has an integrated web server with which the WirelessHART network is configured. 6 Start screen Navigation bar... - Page 17 FieldGate SWG50 Operation options 7 Gateway information Field Description Name Information about the gateway and location. Contact Person responsible for operating the device. Long Tag Identification of device in the WirelessHART network, can be identical to the Name field.
- Page 18 Operation options FieldGate SWG50 Field Description WirelessHART AP MAC-Address Media Access Control (MAC) address of WirelessHART interface module. Firmware Version Software version in device Hardware Version Device version 7.1.3 Overview of basic configuration Changing the data displayed on the home screen In the Navigation menu, click Configuration ->...
- Page 19 Normal Profile - P1 Enables the supply of approx. 1024 4.5 pkt/s through the gateway into the network. Low Power Profile - Reduces the FieldGate SWG50 1024 2048 to one eighth of downstream capacity. Battery power may be saved but the network...
- Page 20 Operation options FieldGate SWG50 7.1.5 Configuring the WirelessHART network ‣ In the Navigation menu, click Configuration -> WirelessHART -> Network Configuration. The Network Configuration dialog box appears. Field Field Description Network WirelessHART Network ID In hexadecimal or decimal format, depending on setting.
- Page 21 FieldGate SWG50 Operation options Field Field Description Active Advertising Get Advertising Status Status, whether Active Advertising is enabled or not. Advertising Time The time period for which Active Advertising is to be enabled. Enabled via the Enable key. Stale Data Timer...
- Page 22 2465 2470 2475 7.1.6 Caching commands The FieldGate SWG50 stores a number of commands in the cache. The validity of the stored data depends on the Stale Data Timer. → 20 Command Description 3, 778 These commands are used to fill the Devices page in the web server and in the Modbus register.
- Page 23 FieldGate SWG50 Operation options 7.1.7 Device view The device information page displays all data and the status of the devices in the WirelessHART network and is constantly updated. Color Description Green The WirelessHART device is functioning correctly, is connected to the network and has at least three neighbors.
- Page 24 Click the Edit Slave IDs button. Enter the new ID number. Click OK. Changes are saved; this may take several minutes. 7.1.8 Adding a device If a device is added to the network, the FieldGate SWG50 issues several commands. Endress+Hauser...
- Page 25 FieldGate SWG50 Operation options The commands are processed in the following order: • Command 0 • Command 74 • Command 84 • Command 20 • Command 27 • Command 7 • Command 13 • Command 105 While the commands are executed, the web server reports the device as "Handshaking".
- Page 26 Operation options FieldGate SWG50 Changing the IP address Select Specify a static IP address. Enter the desired IP address and subnet mask. Enter the LAN default gateway and DNS1 and DNS2 if necessary. Click Submit. The amended IP address will be applied following an automatic restart.
-
Page 27: System Integration
A restart notification appears. The changes are applied following a restart. System integration Modbus TCP 8.1.1 Condensed Modbus mapping Condensed Modbus mapping is available when using Modbus device ID 254 in conjunction with the IP address of the FieldGate SWG50. Modbus address Variable Read/Write Type 49996... - Page 28 System integration FieldGate SWG50 8.1.2 Expanded Modbus mapping HART command Type Memory address Device variable Register count Read 4000 (2 bytes) Expanded device type code 40001 Number of preambles required for request message from client to device 40002 HART protocol major revision number...
- Page 29 FieldGate SWG50 System integration HART command Type Memory address Device variable Register count 40039 Secondary variable classification 40040 Tertiary variable classification 40041 Quaternary variable classification Write 40042 - 40043 (float) Primary variable damping value Write 40012 (2 bytes) Configuration change counter...
- Page 30 System integration FieldGate SWG50 HART command Type Memory address Device variable Register count 40076 Burst message 512/513 Read/Write 40077 (2 bytes) Country code 40078 SI units 1024 Read 40079 Device variable code 40080 Temperature family device variable status 40081 Temperature family status 0...
- Page 31 FieldGate SWG50 System integration HART command Type Memory address Device variable Register count 1923 Write 40115 Device variable code 40116 Manipulated variable unit 40117 - 40118 (float) Manipulated variable rate of change of limit 1924 Write 40119 Device variable code...
- Page 32 System integration FieldGate SWG50 HART command Type Memory address Device variable Register count 795/796 Write/Read 40162 Timer type 40163 - 40164 (4 Timer interval bytes) 797/798 Write/Read 40165 Output power in dbm 804/805 Read/Write 40166 CCA mode 808/809 Read/Write 40167...
- Page 33 FieldGate SWG50 System integration HART command Type Memory address Device variable Register count 40418 - 40419 Standard deviation of latency Write 40193 Reason Write 40194 Nickname Write 40195 - 40197 Time at which to suspend network 40198 - 40200 Time at which to resume network...
- Page 34 System integration FieldGate SWG50 HART command Type Memory address Device variable Register count Read 40361 Burst mode control code 40362 Command number expansion flag 40363 Device variable code assigned to slot 0 40364 Device variable code assigned to slot 1...
-
Page 35: Hart Ip
Modbus block read error. HART IP 8.2.1 Gateway terminated commands The FieldGate SWG50 provides information on the following HART commands: Command Function Universal commands Read Unique Identifier... -
Page 36: Commissioning
Commissioning FieldGate SWG50 8.2.2 Special commands The FieldGate SWG50 supports the activation of Fast Pipes for block data transfer using the following commands: CMD 146 (Write Device Fast Pipe Status) Byte(s) Value Request 0-4 5-byte Device Unique ID 5 Pipe Status (OFF, ON_BI, ON_UP, ON_DOWN) -
Page 37: Login
Click Use the following IP address and enter IP address. Enter "255.255.255.0" in the Subnet mask field and click OK. The IP address assigned to the PC must be different to that of the FieldGate SWG50. Login Ensure that the connected PC is in the IP range of the FieldGate SWG50. - Page 38 Operating multiple devices with factory-preset IP addresses will cause a network conflict, and incorrect parameters may be configured in the FieldGate SWG50 modules. When programming modules for the first time, it is important to switch on only one at a time and to change the IP address of each module to a unique IP address.
-
Page 39: Diagnostics And Troubleshooting
FieldGate SWG50 Diagnostics and troubleshooting Diagnostics and troubleshooting 10.1 General troubleshooting Problem Solution Access to web server is not Check power supply to device (ST-LED on ERR-LED off). possible. Check cable connection between PC and device. Check network settings of PC and device. -
Page 40: Diagnostic Information In Web
Diagnostics and troubleshooting FieldGate SWG50 lit red Internal error Normal operation 10.3 Diagnostic information in web browser Advanced diagnostics are possible via the integrated web server. 10.4 Event logbook This page shows the system protocol. It may take several seconds for the page to load. -
Page 41: Maintenance
Click the Send Configuration to Device button. The upload starts. The FieldGate SWG50 can export an existing configuration to the hard drive of a PC. Please note that a passphrase is required. A 10-digit passphrase is necessary to protect and then validate the file before it is saved or can be retrieved from a PC. -
Page 42: Utilities
Click Reform Now. The WirelessHART network is reorganized. 11.3 Reboot The FieldGate SWG50 can be restarted on this page. In the Navigation menu, click Maintenance -> Reboot. The Reboot Device dialog box appears. Click the Reboot button. Confirm Reboot. -
Page 43: Repair
FieldGate SWG50 Repair Repair 12.1 General information Repairs may only be performed by Endress+Hauser staff or by individuals authorized and trained by Endress+Hauser. 12.2 Spare parts Accessories currently available for the product can be selected via the Product Configurator at www.endress.com:... -
Page 44: Technical Data
Technical data FieldGate SWG50 Technical data For detailed information on the "technical data", see the Technical Information. Endress+Hauser... - Page 48 *71574495* 71574495 www.addresses.endress.com...
