Page 1

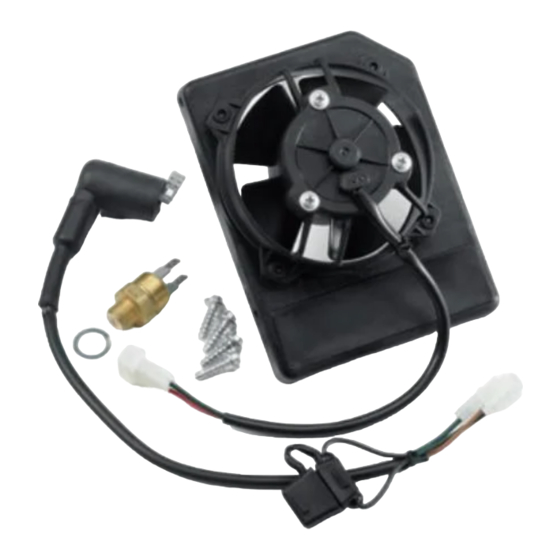

Assembly Instruction Additional Fan for Racing 250-525 (only for modells with e-starter from 2001 on) Notice de Montage du Ventilateur pour les Modèles Racing 250-525 (Seulement sur les machines à démarreur électrique à partir des modèles 2001) KTM-Teilenummer / KTM-Partsnumber / Réferénce KTM 590.35.041.044 Art.Nr 3.210.07...
Page 2
DEUTSCH – Sitzbank und Tank abnehmen, Kühlsystem ablassen. Lüfter rechten Kühler mit den beigepackten Schrauben montieren. – Lüfterkabelstrang am Hauptkabelstrang anstecken (Steckerfarbe weiß), Lüfterkabel am Lüfterkabelstrang anstecken , Stränge zum Lüfter und zum Thermoschalter verlegen und mit Kabelbinder sichern. Bis Modell 2002: –...
Page 3
ENGLISH – Dismantle seat and tank, drain cooling system. Mount fan at right- hand radiator by using the screws included in the package. – Connect fan wiring harness to main wiring harness (white connector), connect fan cable to fan wiring harness , install wiring harnesses toward fan and thermoswitch and secure with cable ties.
Page 4
FRANÇAIS – Déposer la selle et le réservoir; vidanger le circuit de refroidissement. Monter le ventilateur sur le radiateur droit au moyen des vis se trouvant dans l'emballage. – Relier le faisceau du ventilateur au faisceau principal (prise blanche). Brancher le fil du ventilateur au faisceau du ventilateur , positionner les faisceaux allant au ventilateur et au thermo-contact et les fixer avec des colliers.
Page 5
ITALIANO – Togliere sella e serbatoio, scaricare il sistema di raffreddamento. Montare la ventola sul radiatore destro con le viti accluse. – Collegare il cablaggio della ventola con il cablaggio principale (connettore bianco), collegare il cavo della ventola con il cablaggio della ventola , sistemare i fasci di cavi fino alla ventola e fino all'interruttore termico e fissarli con fascette serratavi.
