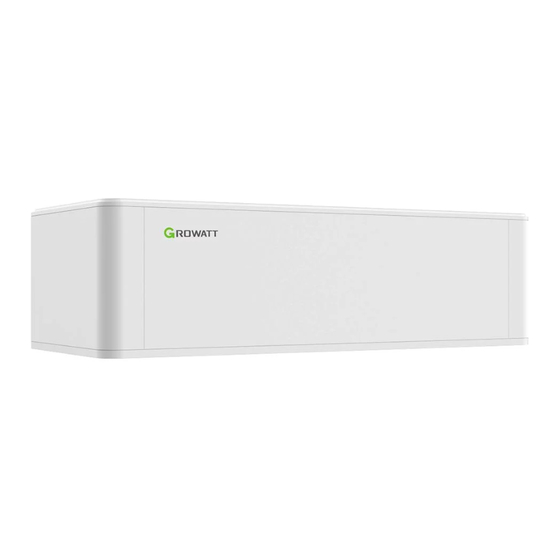

Growatt ARK 2.5L-A1 Quick Installation Manual

Installation environment

Max.+50℃ Min.-10℃

Installation tools

Check accessories

1- 2
ARK-2.5L-A1
A

Installation Method

Standard Wall-Mounted Installation
Wall-Mounted Battery system stacked in two line
Floor installation battery system stacked in two line
System size
2-2
Installation Procedure
Note: The safety part needs to be installed at the top battery, however, once the number of the battery pack is
higher than 7, one more safety part should be installed in the middle battery which is shown the last step.
Avoid drilling holes in the water pipes and cables buried in the wall.
ARK 2.5L-A1
Quick Installation Manual
RH.+5%~+95%
ARK-2.5L-A1 Parallel Cable ARK-2.5L-A1 Base
B C D
Compound Mode
A+B
A+B+D
A+B+C
A+B+C+D*2
1.Check
1-1

Check Packing List

2.Floor installation with base
2-1 Installation Location Requirements

3. Wall-Mounted Installation Process

3-1 Installation Location Requirements
Note: The number of wall-mount installations should not exceed four.Please make sure that the weight capacity
of wall should exceed 150kg.
