Summary of Contents for Growatt GBLI6531

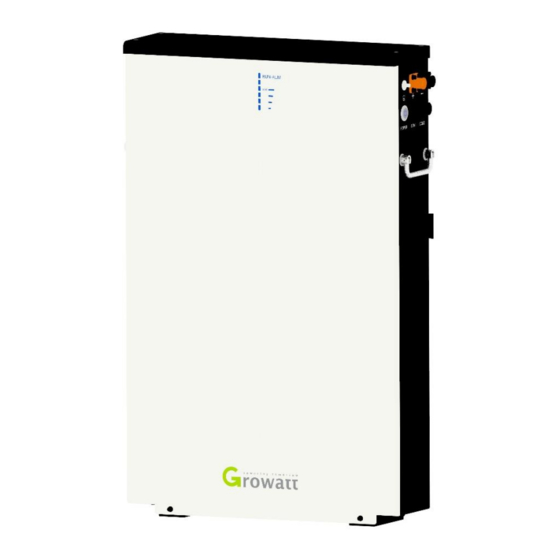

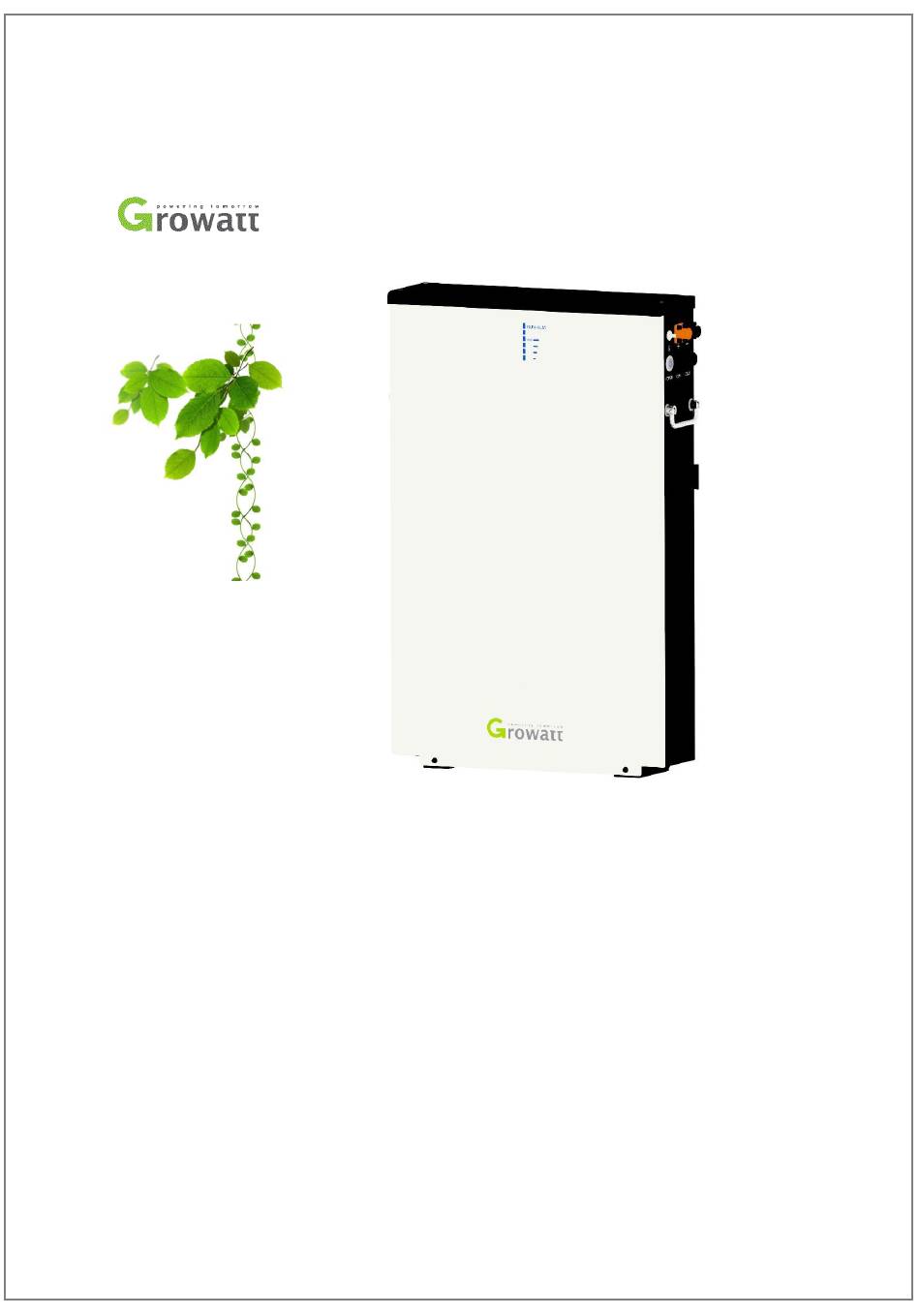

- Page 1 Shenzhen Growatt New Energy Technology CO,.LTD Residential Energy Storage Quick Guidance 6.5kWh PACK (48V 6.5kWh) 1 / 10...
- Page 2 Shenzhen Growatt New Energy Technology CO,.LTD Ensure to read the Guidance before installation in order to understand product information and safety cautions Operators should be well trained technicians and fully understand the whole photovoltaic system, grid network, working principle and national/regional standards, ...
- Page 3 Shenzhen Growatt New Energy Technology CO,.LTD 2 Installation Procedures 2.1 Basic Installation Requirements Acceptable wall mounted installation Prohibited installation Acceptable wall mounted installation Do not install or use PACK near explosive or inflammable substances. Use PACK in well-ventilated environment with temperature ranging from -10℃ to 45℃.
- Page 4 Shenzhen Growatt New Energy Technology CO,.LTD 2.2 Wall Mounted Installation Step 1: Keep the distance between bracket and wall as the right figure (320mm, 320mm, 765mm). The weight capacity of wall should exceed 70kg. At least two persons participate the installation. One person places the bracket on wall and ensure the gradienter horizontal;...
- Page 5 Shenzhen Growatt New Energy Technology CO,.LTD Step 2: Choose an alloy drill bit with a diameter of 12mm and install it in the drill. Drill two holes in the spots that have been confirmed in step 1. Keep the drilling depth the same as that of bolt.
- Page 6 Shenzhen Growatt New Energy Technology CO,.LTD Press the wire and terminal with a hydraulic clamp. Strip cable sheaths at both ends for 15± 0.5mm, with orange positive terminal and black negative terminal. Insert sealing and sealing nut along the cable as shown ...
- Page 7 Shenzhen Growatt New Energy Technology CO,.LTD CAN cable with pin 4 and pin 5 Have the communication plug ready to insert into the PACK terminal. Hearing a “click” sound or the filled. RS485 cable with pin 1 and pin 2 filled.
- Page 8 Shenzhen Growatt New Energy Technology CO,.LTD Parameter configuration under parallel connection Item Parameter PACK Number Rated Power Communication between PACKs RS485 △Vpack≤1V PACK voltage difference limit 30cm≤D≤50cm Distance between PACKs Step 2: Insert main power Step 3: Insert communication Step 1: Install PACKs...
- Page 9 Shenzhen Growatt New Energy Technology CO,.LTD RS485 wire only applies to the communication between two PACKs in parallel connection, and CAN wire only applies to communication between one PACK and PCS. 上电 5. Power on PACK There are many technical contents involved in the electrification process of the equipment, and the electrification personnel must go through technical training and obtain certificates that are in compliance with local law and regulations.
- Page 10 Shenzhen Growatt New Energy Technology CO,.LTD Parallel Connection Power on parallel connected PACKs by Power on parallel connected PACKs by PCS pressing POWER button Procedures Acceptation criteria Procedures Acceptation criteria Close 1. Close the breaker that is breaker that is...
