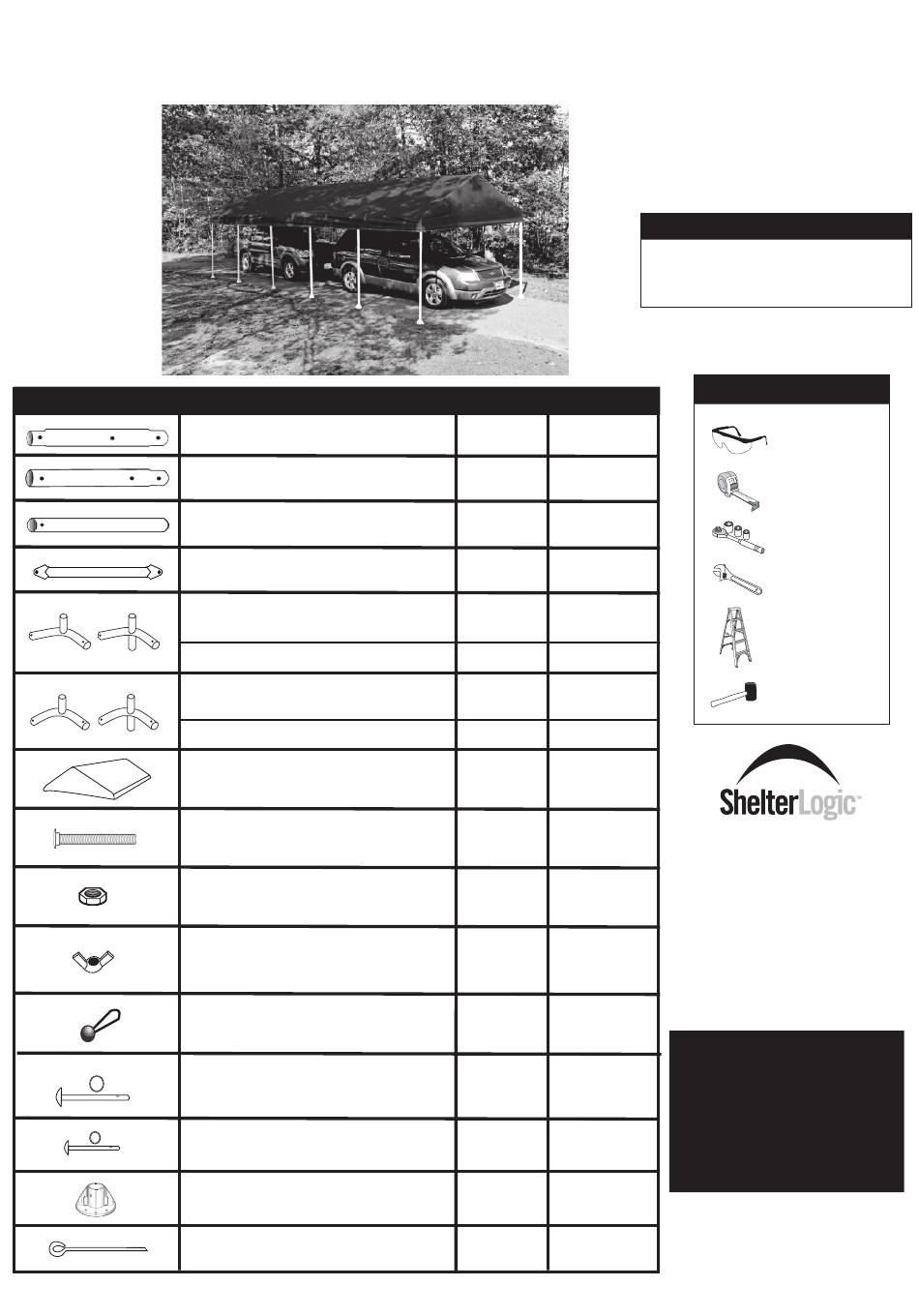

Model #25769
Please read instructions completely bef e assembly
12x30 CELEBRATION "2" DECORATIVE CANOPY
Description
67" Swedged Rafter Poles
76" Swedged Leg Poles
69.6" Cross Poles
Truss
(Top Bend, shallow bend)
3-Way Frame Connectors
4-Way Frame Connectors
(Side Bend, sharp bend)
3-Way Frame Connectors
4-Way Frame Connectors
Cover
Bolts 1/4" x 2 1/2"
Nuts 1/4"
Wing Nuts
Bungee Cords
Long Pins w/rings
Short Pins w/rings
Foot Plates
Anchors
Qty.
12
12
15
3
2
4
4
8
1
18
12
6
56
12
12
12
12
PAGE 1
or
Before You Start
• 2 or more persons recommended
to assemble
• Estimated assembly time = 2 hours
Recommended Tools
Part #
10042
10043
10244
802102
10046
10048
10045
10047
800202
10017
www.shelterlogic.com
150 Callender Road
1010
Watertown, CT 06795
Manufactured Under
7000
D415,571 D409,310
D430,306 D414,564
Other Patents Pending
10066
ATTENTION: PINS
Long Pins secure feet plates to legs.
10052
Short Pins secure legs to side bends.
Pins are for legs and feet,
and are
10051
for any other part of the
10050
05-25769-0C 03/03/08
10431
Safety Glasses
Tape Measure
Ratchet with
7/16
"
Adjustable
wrench
Ladder
Rubber Mallet
800.524.9970
U.S. Patents
NOT
needed
Advertisement
Related Manuals for ShelterLogic 25769
Summary of Contents for ShelterLogic 25769
- Page 1 12x30 CELEBRATION "2" DECORATIVE CANOPY Model #25769 Please read instructions completely bef e assembly Before You Start • 2 or more persons recommended to assemble • Estimated assembly time = 2 hours Recommended Tools Description Qty. Part # 67" Swedged Rafter Poles...
- Page 2 1. Frame Assembly 10042 10042 10046 10045 10045 Assembly is easiest if you layout all parts as 10244 10244 10244 shown. There are (12) #10042 Rafter Poles , they are swedged on both ends. The (15) 10047 10047 #10244 Cross Poles do not have swedged 10042 10048 10042...
- Page 3 5.Securing legs 12 Short Pins are used to secure legs to side bend connectors. 6.Securing cover Working inside, beneath the cover, begin with the corners. Insert the cord of the bungee-ball through the grommet and around the Cross Pole, then around the ball. By doing this from the inside it will hide the bungee-ball and give a cleaner look.
- Page 4 7.Attaching &Securing base feet Insert Base Feet Plates onto bottom of legs, be sure to line up the pre-drilled hole in the leg with the pre-drilled hole in the base foot. Insert long pins all the way through leg and foot, to other side, secure with ring.
