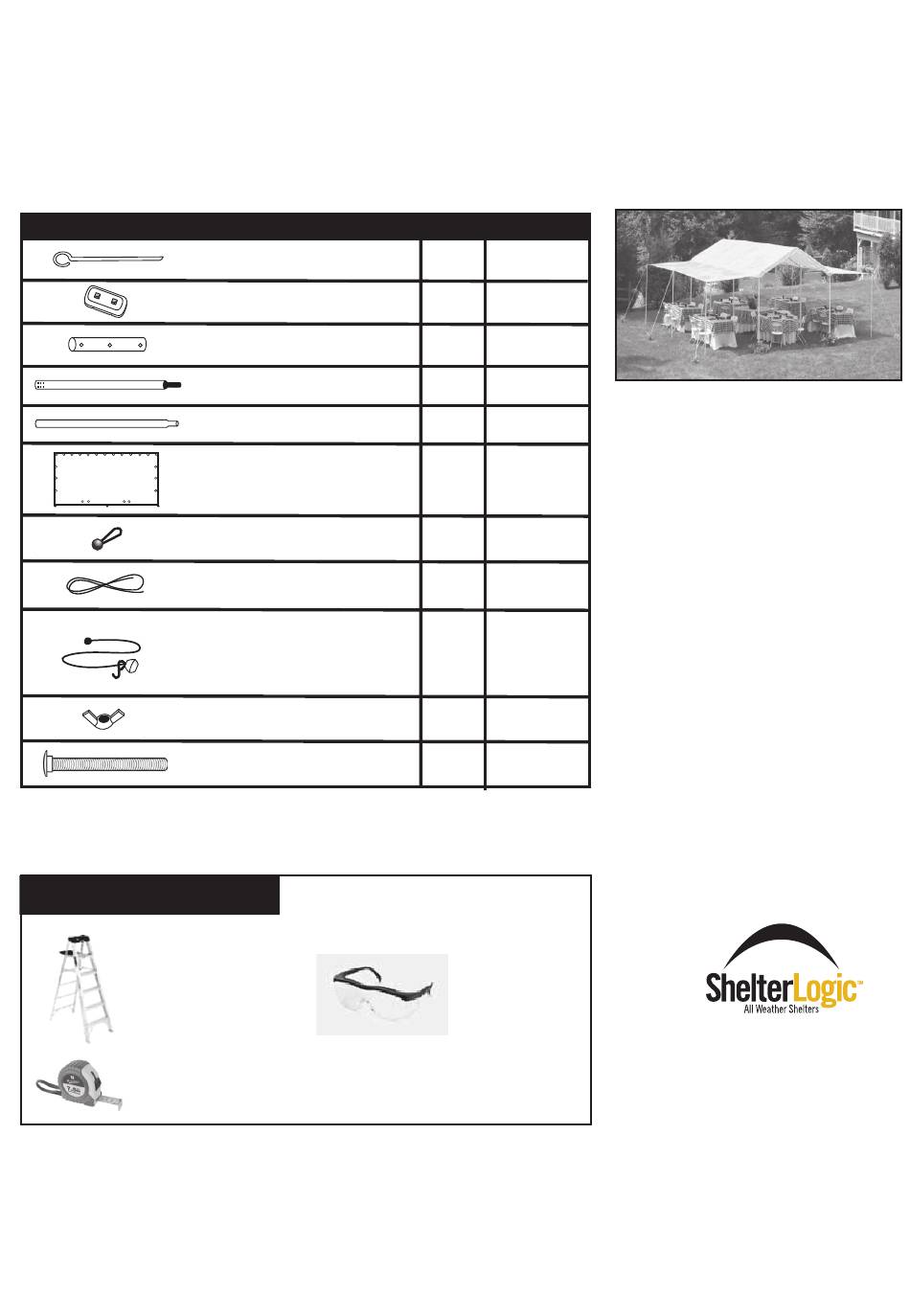

Assembly Manual Parts List
10'x20' Canopy Extension Kit
Description

Recommended Tools

Step Ladder
Tape measure
Anchors
Clamp
Rope Toggle
Tent Pole
Tent Pole Swedged
Side Wall
Bungee Cords
Guy Ropes 11'
Tetherball
"S" Hook
Ropes 3'
Wing Nut
Bolts 1/4" x 1 1/2"
Qty .
Part #
10447
6
10462
8
10436
6
10458
6
10459
6
2
12082
50
10066
6
10437
4
10465
4
10464
4
10463
8
7000
8
3025
Safety Glasses
Model #25730
800.524.9970
www.shelterlogic.com
150 Callender Road
Watertown, CT 06795
Manufactured Under
U.S. Patents
D415,571 D409,310
D430,306 D414,564
Other Patents Pending
04-25730-0C
07/16/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25730 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ShelterLogic 25730

  • Page 1 Model #25730 Assembly Manual Parts List 10'x20' Canopy Extension Kit Qty . Part # Description Anchors 10447 Clamp 10462 Rope Toggle 10436 Tent Pole 10458 10459 Tent Pole Swedged Side Wall 12082 Bungee Cords 10066 Guy Ropes 11' 10437 Tetherball 10465 "S"...
  • Page 2 Before You Start ATTENTION: • 4 or more persons recommended to assemble FOR MISSING OR • Estimated assembly time = 3 hours REPLACEMENT PARTS OR QUESTIONS, PLEASE CONTACT CUSTOMER SERVICE: 1.800.524.9970 STEP 1. ATTACH WINGS Walls attach to unit by Bungee Cords. Thread bungee cord PARTY WING KIT TO THE through grommets in wall and wrap around pole.
  • Page 3 Fig. D # 10458 # 10459 TOP VIEW OF ANCHORING WING KIT While lifting one wing out and up at the middle insert an extension pole into the tab at the middle of the wing. Make a knot in the end of one of the Wing Wing ropes and place it over the tab and pole end as...
