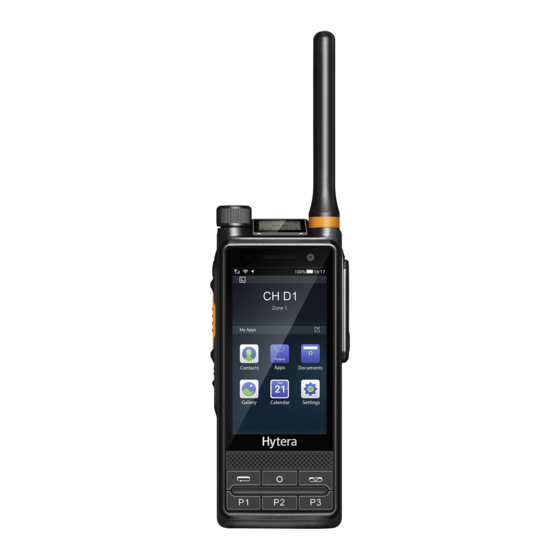

1. Product Overview

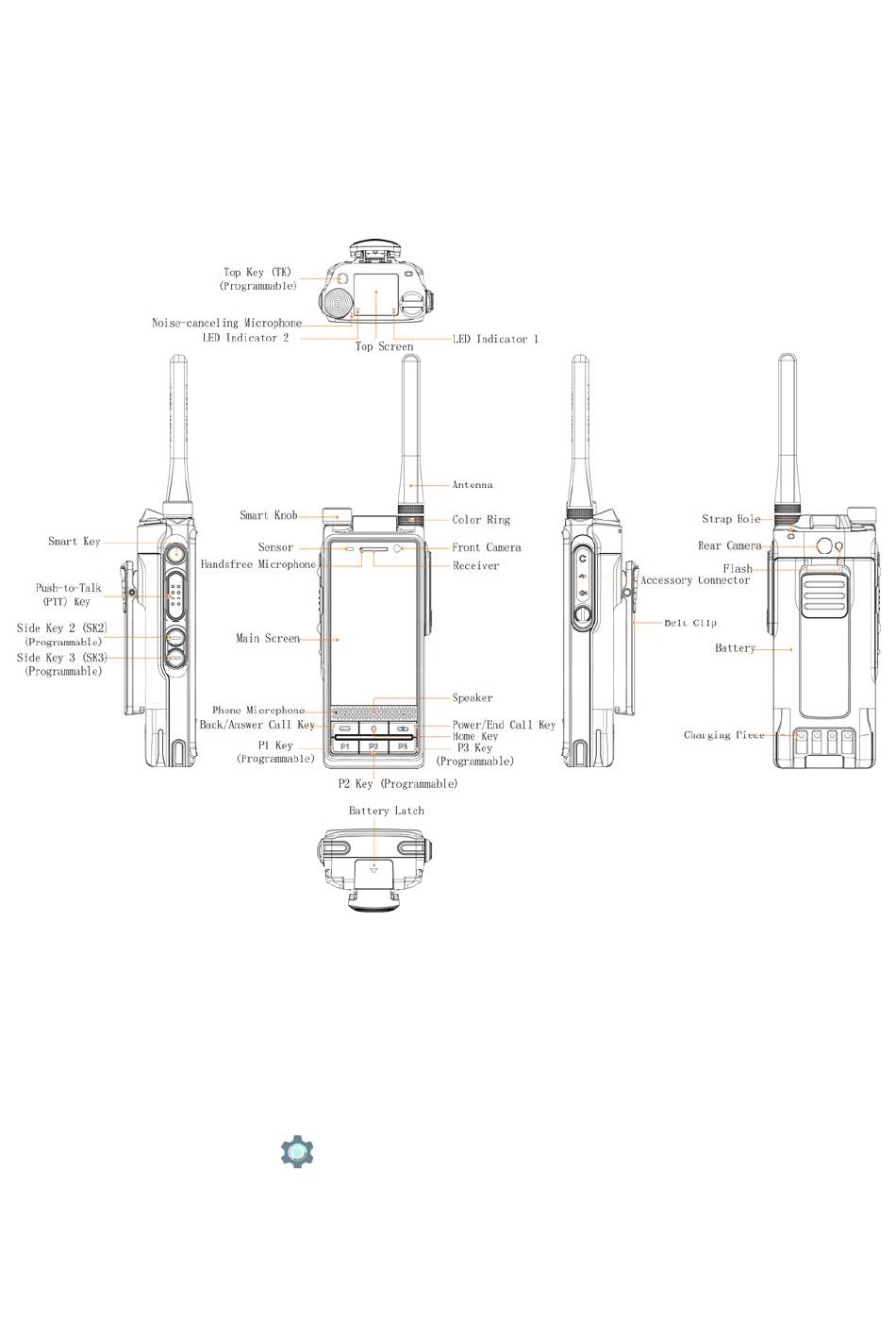

1.1 Product Layout
1.2 Programmable Keys
For enhanced convenience, the product provides the programmable keys including SK2, SK3, TK, P1,
P2, and P3. The TK is programmed with Emergency feature by default (short press: Emergency On;
long press: Emergency Off).
To set up other shortcuts, click
, and then go to Settings > Programmable keys.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDC680 and is the answer not in the manual?

Questions and answers

Related Manuals for Hytera PDC680

Summary of Contents for Hytera PDC680

  • Page 1 1. Product Overview 1.1 Product Layout 1.2 Programmable Keys For enhanced convenience, the product provides the programmable keys including SK2, SK3, TK, P1, P2, and P3. The TK is programmed with Emergency feature by default (short press: Emergency On; long press: Emergency Off). To set up other shortcuts, click , and then go to Settings >...

  • Page 2: Before Use

    2. Before Use 2.1 Attaching the Antenna Do not hold the radio by the antenna and swing it. This may affect the antenna performance and shorten the life span of the antenna. (Optional) Place the color ring (for identification purpose) on the antenna connector. Put the antenna on the antenna connector.

  • Page 4: Attaching The Belt Clip

    2.3 Attaching the Belt Clip Align the rails on the belt clip with the grooves on the battery. Press the belt clip downwards into place. To remove the belt clip, press and hold the spring when sliding the belt clip out of the grooves on the battery.

  • Page 5: Charging The Battery

    2.5 Charging the Battery  Use the approved charger to charge the battery.  Read the Safety Information Booklet before charging.  The remaining lithium-ion battery power is limited to 30% pursuant to the new lithium battery shipment regulation approved by International Air Transport Association (IATA). Before initial use, fully charge the battery to ensure optimum performance.

  • Page 6: Basic Operations

    3. Basic Operations 3.1 Turning the Radio On or Off To turn the radio on, press and hold the Power/End Call key until the splash screen appears. To turn the radio off, do as follows: 1. Press and hold the Power/End Call key until the power-off selection screen appears. 2.

  • Page 7: Status Indications

    3.4.2 Status Indications 3.4.2.1 LCD Icons Type Main Screen Radio Status Screen 3G/4G cellular network is available. Network and The radio is connected to the WLAN network. signal The number of bars indicates the signal strength of the...

  • Page 8: Led Indications

    Type Main Screen Radio Status Screen BB network. The NB network is turned off.  Conventional mode: The radio is in standby state.  Trunking mode: The radio detects no signal. The number of bars indicates the signal strength of the NB network.

  • Page 9: Control Center

    Flashes green slowly The radio is standby in trunking mode. Glows green The radio is receiving. Glows red The radio is transmitting.  The calling radio is establishing a call in trunking mode.  Flashes red rapidly The radio is under the low battery threshold. Recharge or replace the battery in time.

  • Page 10: Notification Center

    To access the control center, swipe up from the bottom edge of any screen. To edit the switches of features displayed on the control center, press 3.4.5 Notification Center The notification center allows you to view notifications and search for apps, contacts or messages. To view notifications, swipe down from the top edge of screen, and the tap a notification to view details.

  • Page 11: Switching Apps

    3.4.7 Locking or Unlocking the Screen When the screen is not in use, you can lock it to avoid unintended operations and increase battery life. When the screen is locked, you can still initiate emergency calls, answer calls, and receive messages and notifications.
  • Page 12 includes the following two types:  Conventional mode: The radio communicates with one or more other radios directly on the fixed channel frequency or through repeaters.  Trunking mode: The radio communicates with one or more other radios on the channel frequency allocated by the trunking system.

  • Page 13: Call Services

    4. Call Services 4.1 Private Network Call 4.1.1 Group call Initiating a Group Call You can make a group call through one of the following ways:  Preset Contact Press the Smart Knob. Rotate the knob to select the required channel or group contact. Press and hold the PTT key.

  • Page 14: Receiving A Private Call

    Ending a Group Call  Conventional Mode: A group call ends automatically when the call hang time expires.  Trunking mode: A group call ends when the calling party taps or presses the Power/End Call key. 4.1.2 Private Call Initiating a Private Call You can make a private call through one of the following ways: ...

  • Page 15: Emergency Call

    The radio rings and vibrates to indicate the incoming call. You can press the PTT key or the Back/Answer Call key to answer the call.  Off Air Call Set-Up (OACSU) The call is established automatically. You can listen to it without any operation. To respond to the call, press and hold the PTT key, and then speak into the microphone.
  • Page 16 4.2 Public Network Call (Phone Call) 4.2.1 Initiating a Phone Call You can make a phone call through one of the following ways:  Contact List 1. Tap > Private. 2. Tap the required phone contact. 3. Tap  Manual Dialing Enter the required phone number.
  • Page 17  When the screen is locked with password or pattern, do as follows: 1. Tap and drag it to the lateral oblique direction. 2. Tap "Emergency" and enter the emergency phone number. 3. Tap...

  • Page 18: Message Services

    5. Message Services The Message feature allows you to exchange the text messages, status messages and multimedia messages (MMS) with other radios through  Status Message (trunking only): frequently used messages predefined by your dealer and not editable. The radio sends status message over the NB network to a private network number. ...
  • Page 19  To add the message to the favorite list, tap More > Favorite. To view the favorite messages, tap "My favorites".  To view the message details such as message type and sending time, tap More > View details. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
