STI Euro Stopper -15000 Series Quick Start Manual

Euro Stopper STI-15000 Series
®
The Euro Stopper is a sleek protective cover that offers protection
against tampering, vandalism and damage from accidental activation.
Specifications
• Input power 3V Lithium CR123A, 12-24 V
• Flammability: UL94 V-2
• Temperature range:
· Polycarbonate Rated: (-40° to 250°F) -40° to 121°C
· Electronics Operating Range: (14 to 120° F) -10° to 49°C
WHEN USING ANCHORS,
DRILL 3/16 in. (5mm)
DIA. HOLES 1 1/4 in.
(31.75mm) DEEP
WINDOW
IF USING SCREWS ONLY, DRILL
FOR CONDUIT
1/8 in. (30mm) DIA. HOLES
(2) PROVIDED
1 1/4 in. (32mm) DEEP
WINDOW
FOR SPACER
(2) PROVIDED
ANCHORS
(4) PROVIDED
SPACER
Mounting Instructions
1. Position the Euro Stopper over the device to be protected, open the front
®
cover of the Euro Stopper and mark the position for the four (4) mounting
®
screws.
2. Drill holes and attach the Euro Stopper
See Fig. 1 for drill sizes.
3. If a surface spacer is included, ensure the isolated (screw) mounting columns
are at the top (Fig. 2).
Note: The spacer is not reversible; arrows are marked upwards on the removable
plastic windows for your convenience (Fig. 2).
Safety Technology International
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
, remote power
EURO STOPPER
ASSEMBLY
SCREWS

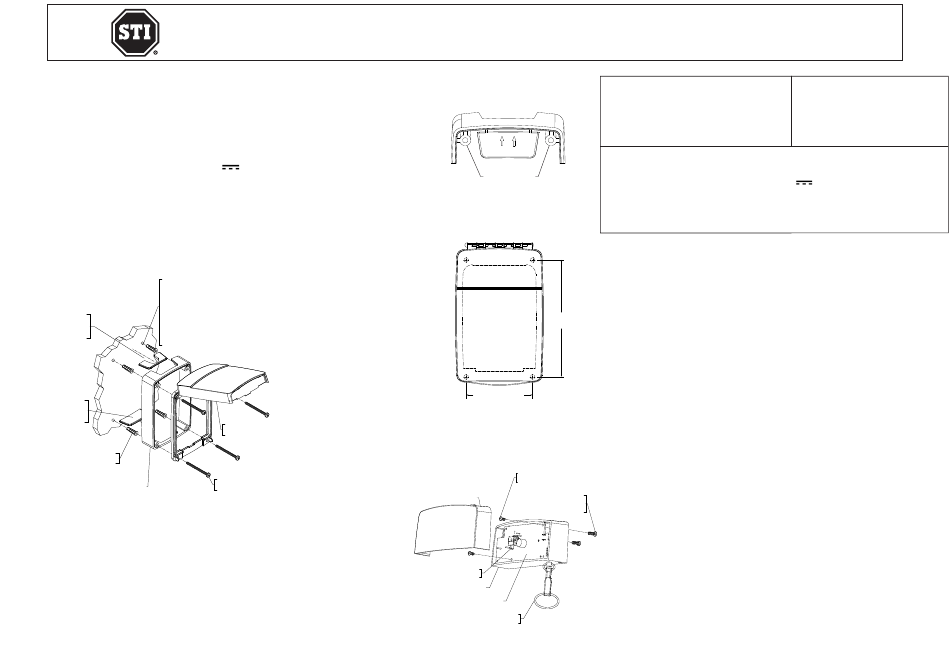

Fig. 1
(4) PROVIDED
to the wall using the screws provided.
®
MOUNTING COLUMNS
Fig. 2
TEXT HERE
152mm
(6.00 in.)
86mm (3.40 in.)
Fig. 3
#2 x .25 in. SMS
(2) PROVIDED
#4 x .312 in.
M272 HORNSHELL
HI-LOW SCREW
(2) PROVIDED
VOLUME SWITCH
HI/OFF/LO
M276 HORN CASE
34080 PCB SOUNDER
SERVICE PIN
Fig. 4
(1) PROVIDED
Safety Technology International Ltd
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: +44 (0)1527 520 999 • Fax: +44 (0)1527 501 999
E-mail: info@sti-emea.com • Web: www.sti-emea.com
Alarm Current:
3V Battery 12V 24V
- Standby 10µA 500µA 550µA
- Low 40mA 38mA 22mA
- High 105mA 125mA 95mA
Wire Description
RED + REMOTE INPUT
}
BLACK - POWER 12-24V
BLUE COMMON
GREEN NC: NORMALLY CLOSED
YELLOW NO: NORMALLY OPEN
4. The 32mm (1.25") and 50mm (2") surface spacer provides cable entry
facilities for conduit, cable and trunking.
5. For surface installations, use the windows attached to the spacer to fill
in any unused cable/conduit entry points.
Circuit Board Operations
1. On initial installation, activate the battery by removing the battery
cover using a small Phillips screwdriver. Remove Mylar tape.
2. To adjust the volume using the Hi/OFF/Lo switch, remove horn case
(see Fig. 4 for location).
3. If using 12/24VDC & Relay Cord:
a. Remove horn case.
b. Remove PCB by removing the two (2) screws as shown in Fig. 5.
Lift PCB as far as the wires allow.
c. Drill a 5mm hole (3/16") at the witness point shown on Fig. 5.
d. Then insert the wire harness cord into the socket as shown in Fig. 5.
e. Leaving a small amount of slack, push the harness into the drilled
outlet hole.
f. Secure PCB into place and reattach horn case with two (2) provided
screws.
g. CAUTION: The relay and sounder will not operate with the
service pin in place.
Volume
Distance 1M (3 Ft) 3M (10 Ft)
Low 72 dB 64 dB
High 96 dB 88 dB
Form "C"
Dry Contact Relay
}
30VDC, 1A
125VAC, 0.5A
60VDC, 0.3A
15000 series
