STI Euro Stopper -15000 Series Quick Start Manual

®
Euro Stopper - STI-15000 Series
The Euro Stopper is a sleek protective cover that offers protection
against tampering, vandalism and damage from accidental activation.
Specifications
• Input power 3V Lithium CR123A, 12-24 VDC, remote power
• Flammability: UL94 V-2
• Temperature range:
· Polycarbonate Rated: -40° to 121°C (-40° to 250°F)
· Electronics Operating Range: -10° to 49°C (14 to 120° F)
WHEN USING ANCHORS,
DRILL 3/16 in. (5mm)
DIA. HOLES 1 1/4 in.
(31.75mm) DEEP
WINDOW
IF USING SCREWS ONLY, DRILL
FOR CONDUIT
1/8 in. (30mm) DIA. HOLES
(2) PROVIDED
1 1/4 in. (32mm) DEEP
WINDOW
FOR SPACER
(2) PROVIDED
RAWL PLUGS
(4) PROVIDED
SPACER

Mounting Instructions

1.
Position the Euro Stopper over the device to be protected, open the front
cover of the Euro Stopper and mark the position for the four (4) mounting screws
2. Drill holes and attach the Euro Stopper to the wall using the screws provided.
See Fig. 1 for drill sizes.
3.
If a surface spacer is included, ensure the isolated (screw) mounting columns
are at the top (Fig. 2).
Note: The spacer is not reversible; arrows are marked upwards on the removable
plastic windows for your convenience (Fig. 2).
EURO STOPPER
ASSEMBLY
SCREWS
(4) PROVIDED

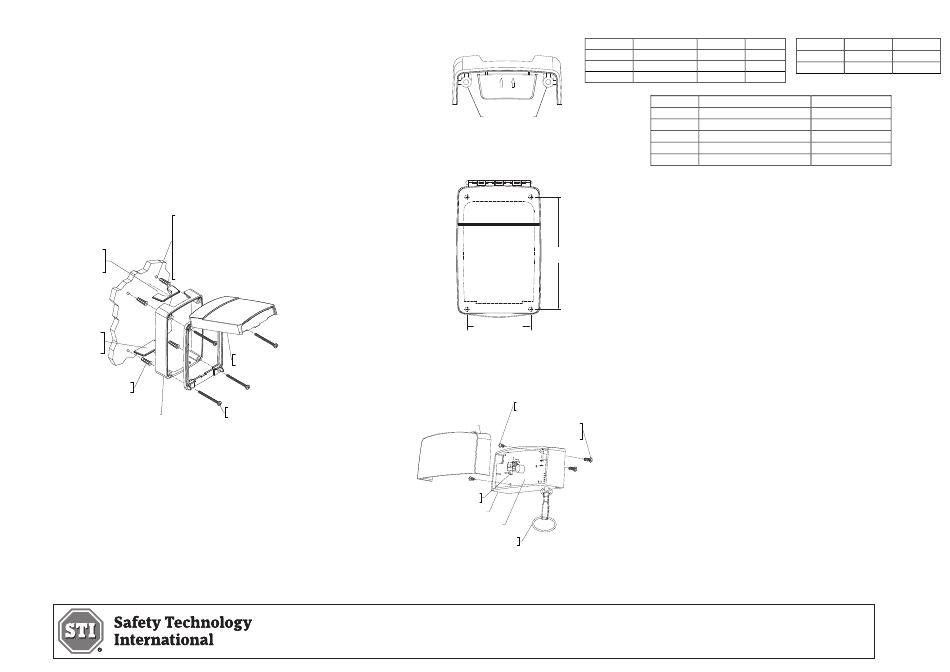

Fig. 1
European Office European Office
Taylor House • 34 Sherwood Road • Bromsgrove Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England Worcestershire • B60 3DR • England
Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999 Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999
E-mail: info@sti-emea.com • Web: www.sti-emea.com E-mail: info@sti-emea.com • Web: www.sti-emea.com
Alarm Current:
Standby
Low
High
MOUNTING COLUMNS
Fig. 2
TEXT HERE
152mm
(6.00 in.)
86mm (3.40 in.)
Fig. 3
#2 x .25 in. SMS
(2) PROVIDED
#4 x .312 in.
M272 HORNSHELL
HI-LOW SCREW
(2) PROVIDED
VOLUME SWITCH
HI/OFF/LO
M276 HORN CASE
34080 PCB SOUNDER
SERVICE PIN
(1) PROVIDED Fig. 4
USA - Headquarters USA - Headquarters
2306 Airport Road • Waterford, Michigan 48327-1209 2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246 Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com Web: www.sti-usa.com
Volume:
3V Battery 12V 24V
10µA 500µA 550µA
40mA 38mA 22mA
105mA 125mA 95mA
Wire Description
}
RED + REMOTE INPUT
-
BLACK POWER 12-24VDC
BLUE COMMON
GREEN NC: NORMALLY CLOSED
YELLOW NO: NORMALLY OPEN
4. The 32mm (1.25") and 50mm (2") surface spacer provides cable entry
facilities for conduit, cable and trunking.
5. For surface installation, use the window attached to the spacer to fill
in any unused cable/conduit entry points.

Circuit Board Operations

1. On initial installation, activate the battery by removing the battery
cover using a small Phillips screwdriver. Remove red tape.
2. To adjust the volume using the Hi/OFF/Lo switch, remove horn case
(see Fig. 4 for location).
3. If using 12/24VDC & Relay Cord:
A. Remove horn case.
B. Remove PCB by removing the two (2) screws as shown in Fig. 5.
Lift PCB as far as the wires allow.
C. Drill a 5mm hole (3/16") at the witness point shown on Fig. 5.
D. Then insert the wire harness cord into the socket as shown in Fig. 5.
E. Leaving a small amount of slack, push the harness into the drilled
outlet hole.
F. Secure PCB into place and reattach horn case with two (2) provided
screws.
G. CAUTION: The relay and sounder will not operate with the
service pin in place.
Distance 1m (3ft) 3m (10ft)
Low 72 dB 64 dB
High 96 dB 88 dB
Form "C"
Dry Contact Relay
}
30VDC, 1a
125VAC, 0.5A
60VDC, 0.3A
15000 series
0217_12
