SANTA CLARA LOW BACK

OFFICE CHAIR

ELSANTAOCBA

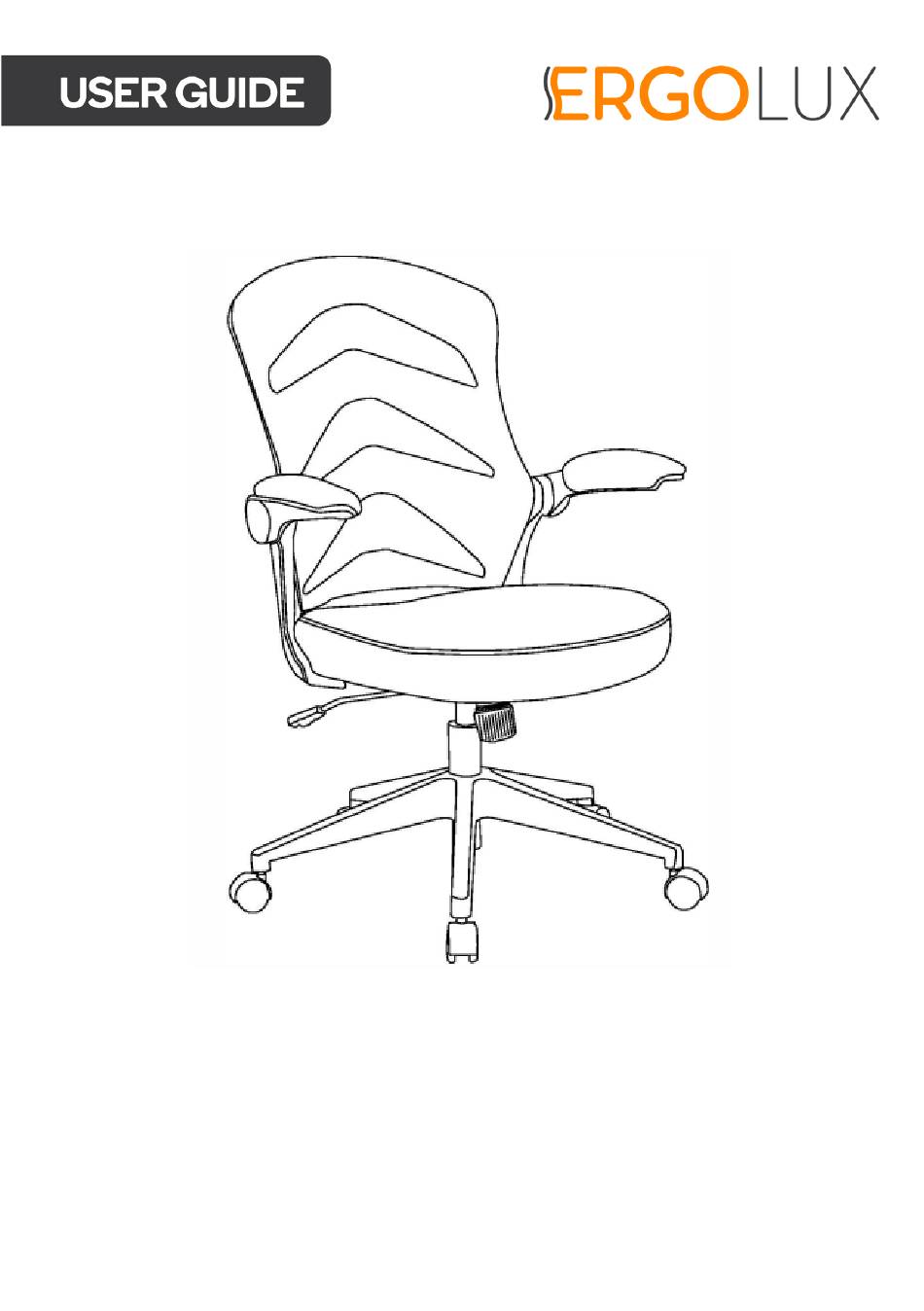

Page 1 SANTA CLARA LOW BACK OFFICE CHAIR ELSANTAOCBA...
Page 3 COMPONENTS A Castor wheel (x5) B Base (x1) C Gas lift (x1) D Mechanism (x1) E Seat (x1) F Chair back (x1) G Armrests (x1 pair) H 18mm M6 screw (x8) I 35mm M6 screw (x4) J Armrest covers (x1 pair) K Allen key (x1)
Page 4 ASSEMBLY Step 1: Attach the castor wheels (A) to the base (B). Insert the gas lift (C) into the base (B). Step 2: Align the holes of the right armrest (G-R) with those on the chair back (F). Using the Allen key (K), insert and secure 18mm M6 screws (H) into the aligned holes to attach the right armrest (G-R) to the chair back.
Page 5 Step 3: Align the holes on the seat (E) with those on the armrests (G-L, G-R). Using the Allen key (K), secure the seat (E) to the armrests (G-L, G-R) with 35mm M6 screws (I). I (x4) K (x1) Step 4: Align the holes on the mechanism (D) with those on the seat (E). Using the Allen key (K), secure the mechanism (D) to the seat (E) with 18mm M6 screws (H).
Page 6 Step 5: Place the chair assembly onto the gas lift (C). Press firmly to ensure it is secure. Step 6: Attach the armrest covers (J-L, J-R) onto the armrests (G-L, G-R).
Page 7 Assembly complete.
Page 8 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
