Textron Greenlee GG1-1/0 Instruction Manual

Operation

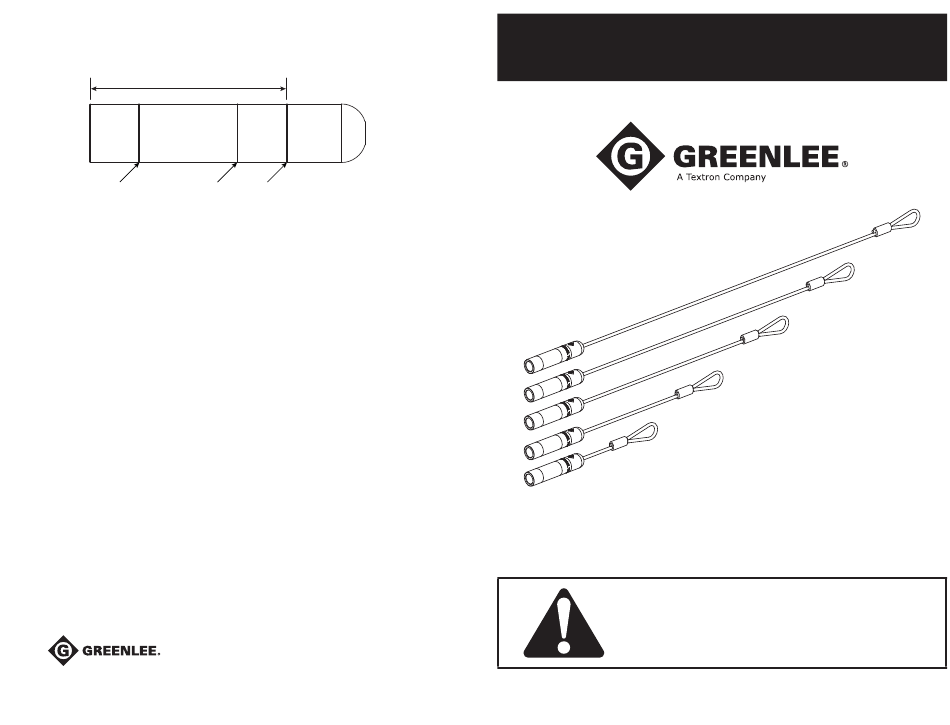

Where to strip wire jacket and where to crimp:
Strip Length
Crimp #1
Step 1. Line up the wire to be crimped
with the strip line and the open end of
the wire grip. This is the length of the
wire jacket you want to remove.
Step 2. Insert the stripped wire into the
grip up to the strip line.
Step 3. Crimp on the first crimp line
using a Greenlee EK12IDL or HK12ID
dieless crimping tool.
www.greenlee.com
4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070
An ISO 9001 Company • Greenlee Textron Inc. is a subsidiary of Textron Inc.
USA
Tel: 800-435-0786
Fax: 800-451-2632
Crimp #2 Strip
Step 4. Rotate the crimping tool 180° to
the other side of the wire grip and crimp
on the second crimp line.
Step 5. Attach the eye on the grip
harness to a pulling swivel or rope clevis.
Note: There may be some cracking of the grip
when it is crimped. This is a normal, inherent
property of the material when crimped and
will not affect the strength of the pull.
Canada International
Tel: 800-435-0786 Tel: +1-815-397-7070
Fax: 800-524-2853 Fax: +1-815-397-9247
INSTRUCTION MANUAL
GATOR
Crimp-on Cable Pulling Grips
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com
52059181 REV 6 © 2011 Greenlee Textron Inc.
GRIP
®
7/11
